Summary of Contents for Spod 87-0095

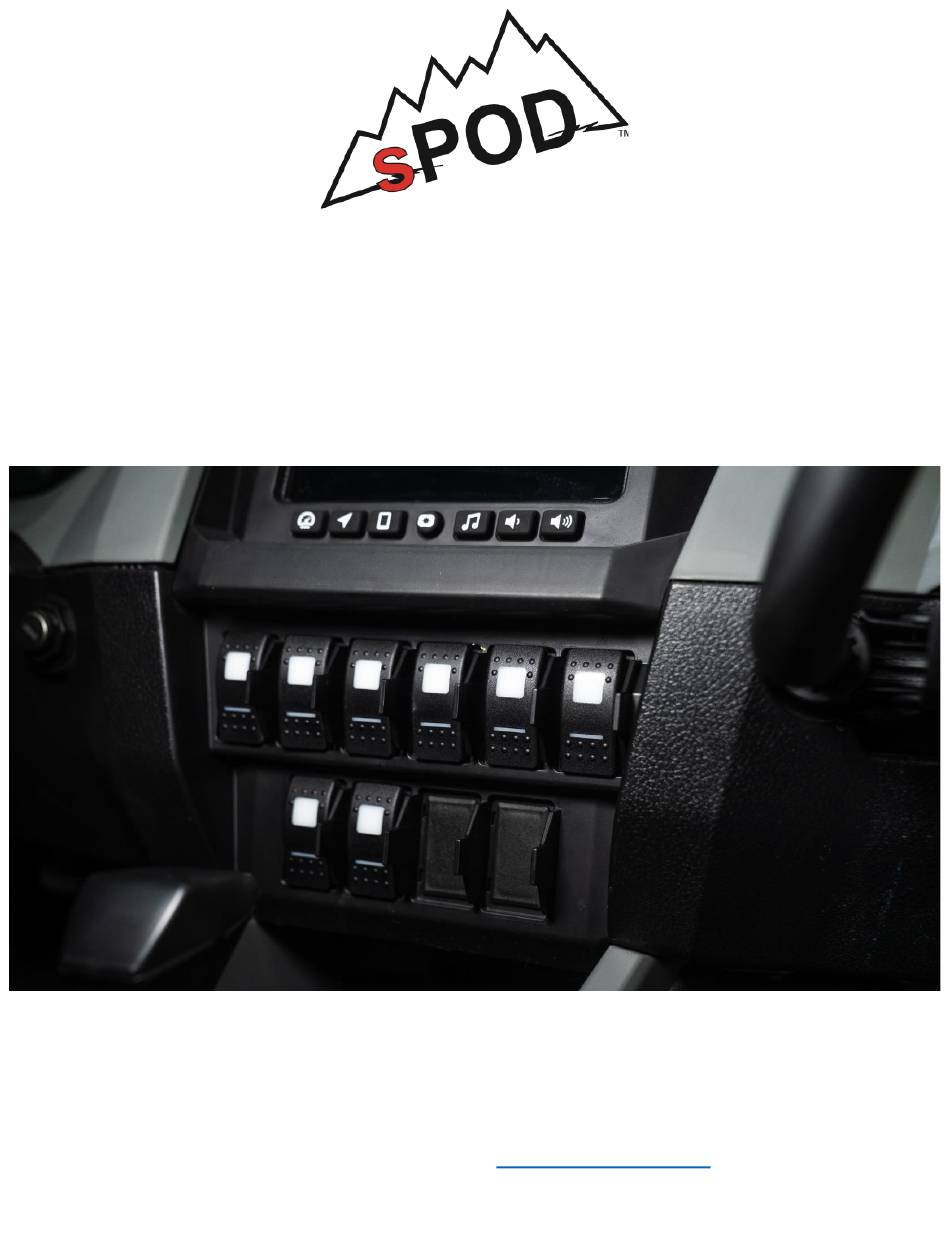

- Page 1 Polaris Pro-R, Turbo-R, Pro-XP BantamX & SourceLT Rocker Switch Kit(s) 87-0095, 87-0096, 87-0128, 87-0129, 87-0131, 87-0132, 87-0133, 87-0135 2950 Norman Strasse San Marcos, CA 92069 Phone 661-775-7799 • Fax 760-560-0383 tech@4x4s-pod.com • www.4x4spod.com...
-
Page 2: Warranty And Repair Policy
Buyer at no charge. If the identical product is no longer available, sPOD will replace with a similar product of equal value. sPOD will not be responsible for any indirect or consequential damages in connection with defective merchandise. - Page 3 RETURN AND REFUND POLICY sPOD will accept returns within 30 days from receipt of merchandise under the following conditions: Merchandise needs to be returned unused, with all printed material and accessories enclosed. If not in its original condition or the product shows signs of installation, additional charges will be applied or may not be accepted.
- Page 4 **For a color copy of instructions, visit your vehicle specific application on BajaDesigns.com ** Required Tool(s): ▪ T20, T40 Torx ▪ 7/16”, 10mm wrench ▪ Trim removal tool ▪ Phillips head screwdriver Parts List 8 Switch Kit: (64-0307) (Qty: 1) (BantamX) (Qty: 1) (91-0025) (Qty: 1) (87-0021) (Qty: 1)
- Page 5 To begin, make sure the vehicle is in park, on level ground and the parking brake is engaged. Step 1: Cover Ethernet Bracket Gasket Remove the PCM cover. Attach the PCM to the bracket using a Phillips head screwdriver and the included screws making sure the included gasket is in between the two.
- Page 6 Step 4: BantamX Users only Using a T20 Torx, remove the passenger side glove box screw (arrowed). Attach the CAN-Adapter with the 10-pin plug facing the rear of the vehicle using the rear bolt hole and the stock hardware. Step 5: Remove the driver and passenger seats by lifting the latch located at the front of the seat and rocking forward.
- Page 7 Step 7: Remove the rear upper close-off panel by turning the 4 quarter-turn latches counter-clockwise until they release. Using a trim removal tool, remove the cupholder insert (circled) from the center console. Step 8: Using the T40 Torx, remove the 4 bolts located near the back of the center console container. Open the center console and turn the 2 quarter-turn fasteners (located near the latch catch) clockwise until they release.
- Page 8 Step 9: Using a trim removal tool or flathead screwdriver, remove the 2 plastic push rivets (one side boxed) behind the cup holders. Using a T40 Torx, remove the 8 bolts (arrowed) securing the passenger side of the center console. Step 10: Locate and remove the 2 plastic push rivets on the top passenger side center console panel located under the dash.
- Page 9 Step 12: Carefully lift upward on the center panel starting near the back to disengage the retention tabs. Carefully release the passenger side center console panel from the vehicle but leave it near its mounting location. Step 13: Route the battery cables from the PCM through the grommet on the front of the center console panel. Run the wires through the center console and to the batteries underneath the driver’s seat.
- Page 10 Step 14: Using a 10mm wrench, connect the positive (red) ring terminal to the positive post of the battery. Repeat by connecting the negative (black) ring terminal to the negative post of the battery. If you have 2 batteries. Make sure both negative leads are connected if equipped with dual batteries. Step 15: Set the passenger side center console panel upright and almost into place.
- Page 11 Step 17: Press the top center console panel into place making sure the retention tabs are properly aligned. Reinstall the push rivets located just behind the cup holders. Step 18: Reinstall the cupholder insert until the retention tabs engage. Reinstall the center console compartment and secure using the T40 Torx bolts (arrowed), 2 on each side of the console and the quarter-turn fasteners underneath the lid.
- Page 12 Step 20: Reinstall the driver and passenger seats by hooking the front of the seat base and pivoting them into place. Make sure the harnesses do not become stuck behind the seats. Step 21: For BantamX Only Pulse Bar Route the control cable, 10 pin wiring harness connector and Pulse Bar plug up to the CAN-Adapter. Plug the control cable (boxed) and 10-pin connector (circled) into their respective locations in the CAN-Adapter.
- Page 13 Step 23: Press out the number of switch blanks corresponding to your sPOD unit. 6 for SourceLT’s and 8 for BantamX’s. To enable ignition triggered backlighting, plug the Pulse Bar connector of the switch harness into an open Pulse Bar position. The Pulse Bar is underneath the dash console box (see step 21). See Appendix 1 for detailed harness breakdown.
- Page 14 Appendix 1 BantamX Harness SourceLT Harness...
