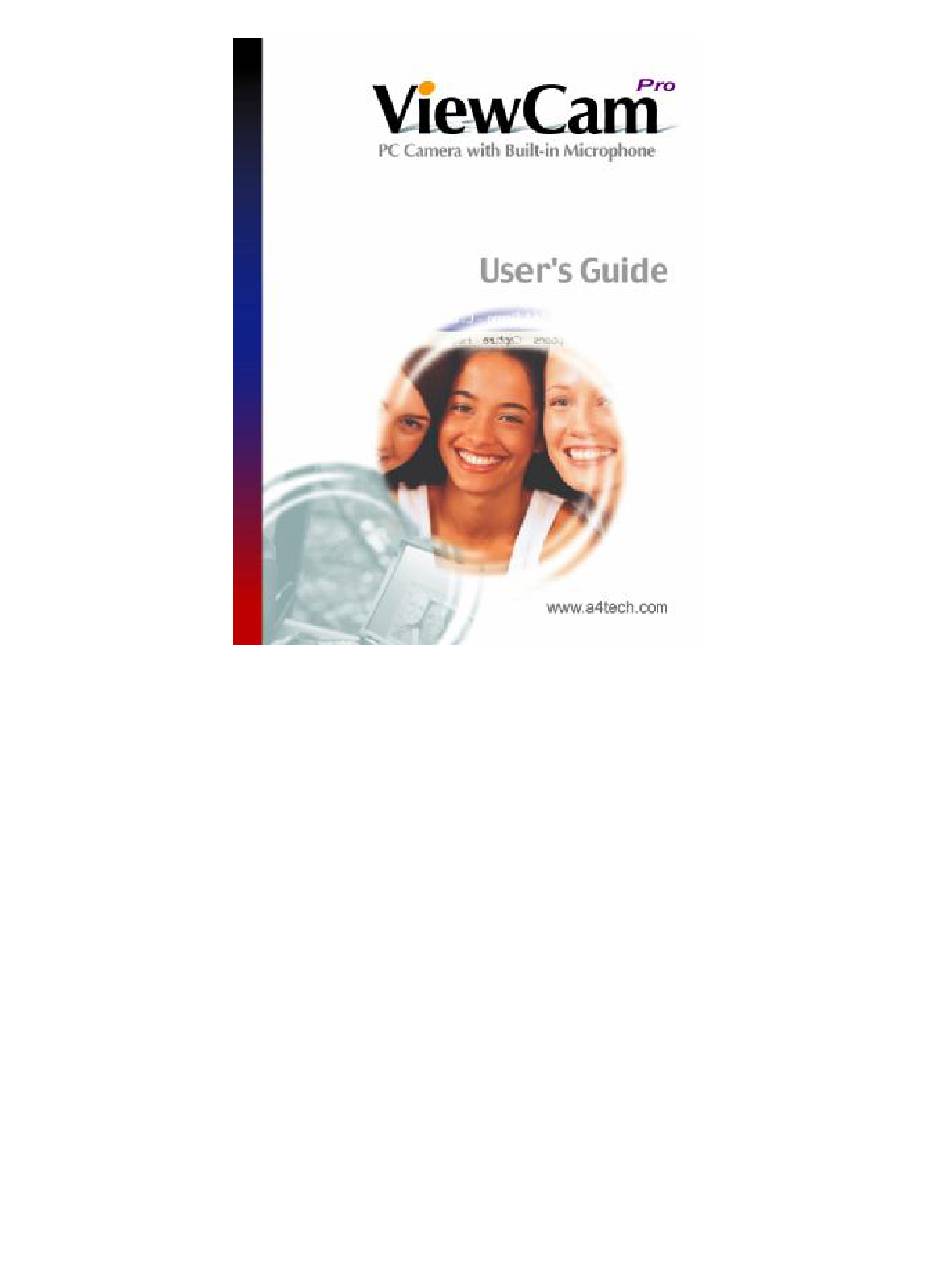

- Page 1 Model: PK-335...
-
Page 2: Table Of Contents
Contents page Introduction System’s Requirements Package Include USB PC Camera Specification III. Installing Camera’s Driver IV. Checking connection of your camera Uninstalling Driver VI. Ulead photo express VII. Ulead cool 360 VIII. Troubleshooting... -
Page 3: Introduction
Introduction Welcome to the World of Digital Imaging. The following information will guide you to install and use the PC Camera to its full capabilities. System’s requirements • Personal Computer, Laptop, Desktop, or IBM Compatible Computer with Pentium 166MHz minimum, and with an active USB (universal serial bus) port. -
Page 4: Usb Pc Camera
USB PC Camera 5-Layer Glass Lens Microphone Specification Image Sensor: 1/4〃CMOS, 640×480pixels Frame Rate: 30fps@640x480, @600x800, @320x240, @160x120 Lens: F=2.0, f=3.6mm View Angle: 72 degree Focus Range: Automatic focus, 10cm to infinity Exposure Control: Automatic White Balance: Automatic Still Image Capture Res.: 600x800, 640X480, 352x288, 320x240, 160x120 Microphone Built in Microphone... -
Page 5: Installing Camera's Driver
Ⅲ. Installing camera’s driver Driver’s Installation Instruction for Windows 98/ME/2000/XP NOTE: Please Uninstall All Previous Installed WEBCAM BEFORE Installing A4 TECH ViewCAM. DO NOT CONNECT A4 TECH ViewCAM TO THE COMPUTER UNTIL ITS DRIVER IS INSTALLED! Insert the included CD into the CD-ROM: The Autorun Menu Window will popup, move the mouse cursor to and click on “Install viewCAM”. - Page 6 3. Follow the on screen instruction to complete the installation process...
- Page 7 4. When the Installation Process is completed, restart the Computer. 6. Click “Finish” to complete installation. Now, the shortcut Amcap image will appear on the computer desktop Plug the PC Camera’s USB cable to the computer’s USB Port, and restart your computer.
- Page 8 Image-preview Click on the icon on the desktop and the Amcap image application will pop-up. Or click on “start”, select “Program”, then select “A4TECH USB PC Camera”, and “Amcap” select open Amcap application. (you may follow the image on the right) if Amcap image fails to appear，please go to “Options”...
- Page 9 Device description Go to “Devices” and select “A4 Tech USB PC Camera”. (Refer to below diagram) Properties page configuration Go to “Options”, then select “Video Capture Filter…” (Refer to below diagram）...
- Page 10 The Properties configuration page as below wills pop-up: Most settings can be adjusted here.
-
Page 11: Checking Connection Of Your Camera
Ⅳ. Checking connection of your camera Plug the USB cable to the computer’s USB Port. ● Restart your computer when Installation is completed. ● Double click “My Computer” icon->Control Panel->System->Device ● Manager ->Imaging Device; if you see “A4 Tech USB PC Camera”, then your camera is now installed. -
Page 12: Ulead Photo Express
Ⅵ. Ulead photo express The latest version of Photo Express offers a new look that makes image editing much more fun and intuitive. There are a lot of improvements and enhancements that comes with Photo Express 4. Here are some of the new features that you can expect in Photo Express 4. -
Page 13: Ulead Cool 360
Batch Adjust: Do quick enhancements or file conversions to your images. With Batch Adjust, you can apply the same enhancements or conversions to all the selected images with just one click. There is no need for you to do it one image at a time. Enhanced Effects: Photo Express added more editing tools to the different effects already existing before. -
Page 14: Troubleshooting
Use a tripod. Even an inexpensive tripod can make the process of getting god pictures easier. Viewing panoramic images: Panoramic photos are substantially different from other types of images, and therefore require a special viewer. Using the Viewer is also very easy. When the arrow cursor is visible, click the image and drag in the direction you want to scroll in. - Page 15 Steps: Windows 95 doesn’t support USB port. You have to update your OS to Windows 98 or above to support USB port and ensure BIOS Setup and USB settings are available. If the problem still occurs, please try connecting the USB ViewCam to your machine via another USB socket. Question 2：...
- Page 16 Because the USB ViewCam can easily conflicts with video card, therefore, please follow this path: " my computer----> control panel -----> system-----> device management ----->Video Card And other pointing devices ------>A4tech View Cam “, then define and double-click “A4tech.port View Cam ". After opened a window, please check the tab "resource”...
- Page 17 numbers. Question 8：How come I couldn’t hear any sound via MSN Messenger even after the successful installation of the driver? 1. Maybe the micro voice is not enable, so please click the voice icon in the system tray at the right bottom of computer screen to check if the micro voice is enable, if not, please enable it in the control volume.
- Page 18 Because this camera could not cause the unstable status of computer system. TECH SUPPORT For tech support, please visit our website at www.a4tech.com email us at support@a4tech.com...
