Summary of Contents for CHC LT35

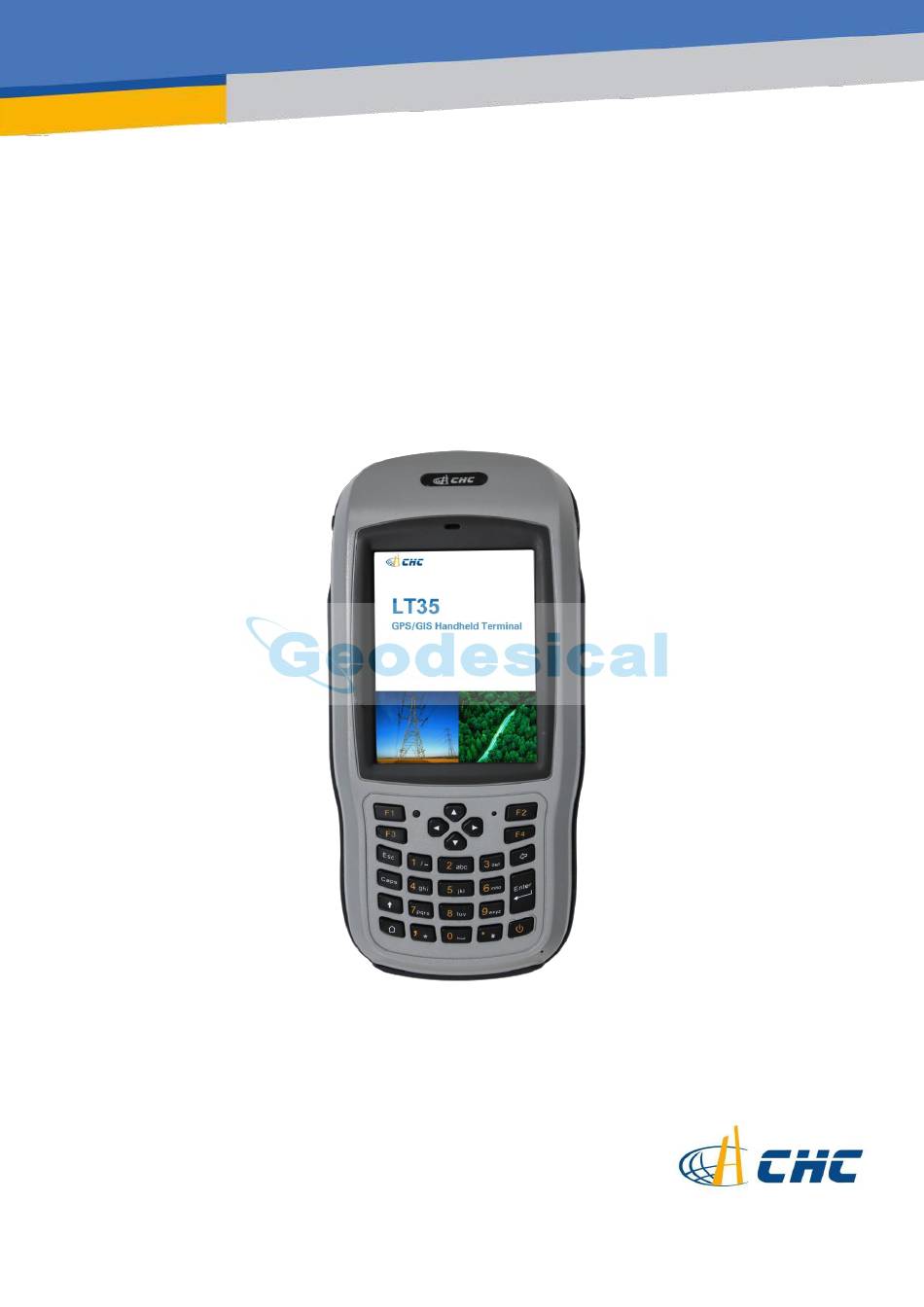

- Page 1 LT35 NDUSTRIAL Quick ONTROLLER/ OLLECTOR TARTED UIDE...
-
Page 2: Table Of Contents
Table of Content 1. Appearance ........................1 1.1. General diagram ......................1 1.2. Keyboard ........................1 1.3. LED ..........................2 2. Operating Instructions ....................2 2.1. Installing the TF card/SIM card/Battery ..............2 2.2. Charging ........................3 2.3. Turning the collector on/off ..................3 2.4. - Page 3 5. Environmental Specifications ..................9 6. Warranty Terms ......................9 7. Appendix – Product Safety Warnings ................10...
-
Page 4: Appearance
1.Appearance 1.1. General diagram 1.2. Keyboard The yellow section are the system defaults, and the functions of the 4 hotkeys are below: F1: Start menu. F2: Close. F3: Camera. F4: System main interface. -
Page 5: Led
The other keyboard operation: System defaults to the digital input method System Default Lowercase letters Switch between / and - Press↑（shift） Press↑(shift) again, it will be digital input method Capital letters Switch between / and - Press Caps Press the Caps button again for lowercase letters 1.3. -
Page 6: Charging
2.3. Turning the collector on/off Make sure the battery has enough power, or connect the LT35 to a DC adaptor. Press power button for 3~5 seconds to turn on (until the boot screen appears). Press the power button for 3~5 seconds, and confirm to power off. -
Page 7: Connecting To A Pc
NOTE: If there are abnormal situations, such as the LT35 cannot operate normally, use the tip of the stylus to press the reset key to restart the LT35. 2.4. Connecting to a PC Make sure Microsoft ActiveSync application has been installed in Win-XP PC. And make sure WMDC (Windows Mobile Device Center) has been installed in Vista/Win7/Win8 PC. -
Page 8: Directly Installing Applications
NOTE: We suggest installing the application in ‘Flash Storage’, and saving your data to a TF card. 2.5.2. Directly Installing Applications If the installation file is compatible on mobile devices, copy the file into the LT35 and click to directly start the installation. -
Page 9: Camera
Select ‘Start->Picture & Video’, select ‘Camera’ or the ‘camera’ key (F3). Press the camera key (F3) to take photos. Click screen and select ‘OK’ to exit. 2.8. User Serial Port The user serial port is COM1. Transfer data between LT35 and other devices using a DB9 serial Cable. -
Page 10: Wireless Connection (Bluetooth/Gprs/Wifi)
Bluetooth Device. NOTE: The standard Bluetooth virtual ports are COM7 and COM9. 2.9.2. GPRS/3G Data connection Make sure there’s a SIM card in the LT35. Select ‘Start->Settings->Connections->Connections’. Click ‘Add a new modem connection’. -
Page 11: Removing Programs
3.3. Removing programs Select ‘Start-> Settings-> System-> Remove Programs ‘, select the programs you wish to remove in the list and click ‘OK’ to remove. 3.4. Auto power off* (*NOTE: The device does not support the Auto power off function, instead use Go-to-sleep mode.) Select ‘Start->... -
Page 12: Accessories
CHC LT35 Series are guaranteed against defective material and workmanship under normal use and application consistent with this Guide. If you have any problems about CHC LT35 Series, please contact your local CHC dealer or CHC Headquarters, the relevant technical support... - Page 13 Turn WiFi off in areas where WiFi use is prohibited or when it may cause interference or danger, such as in airplanes while flying. Care and maintenance LT35 is an electronic product and should be treated with care. To reduce the risk of fire, electronic shock, or product damage take the following advice: •...
