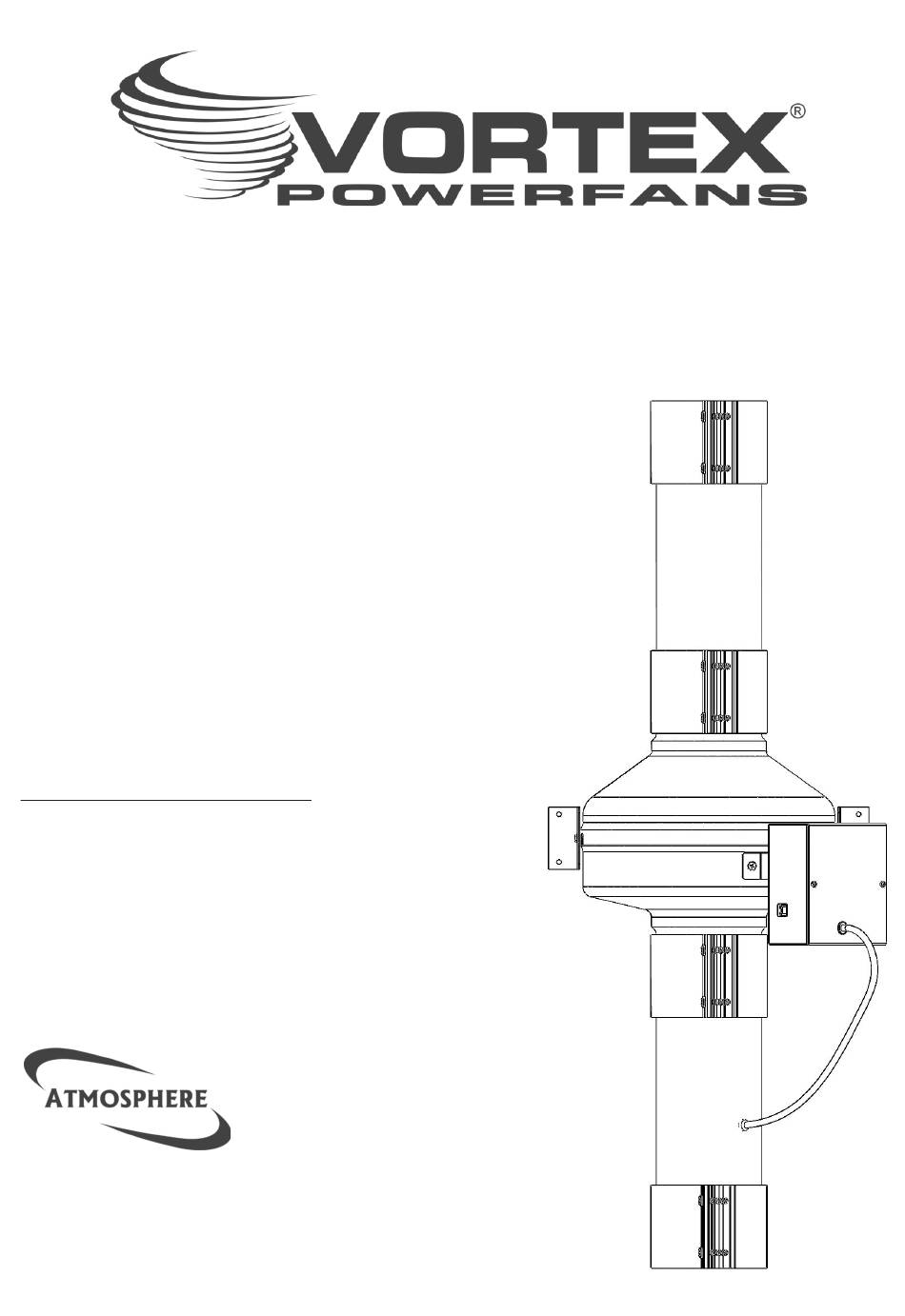

VTX-DEDPV
— USER MANUAL
VTX-DEDPV KIT

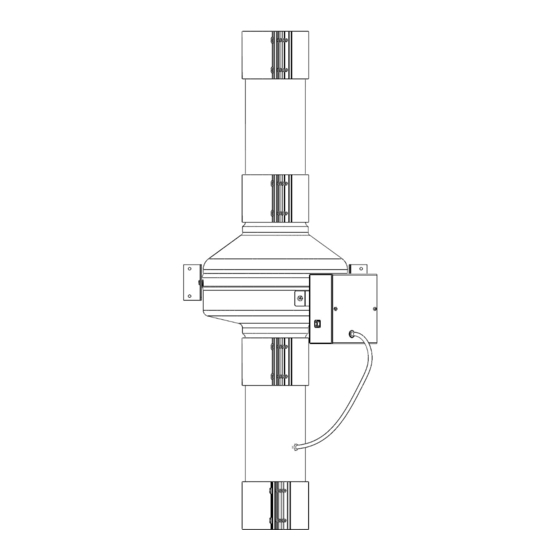

1 x Inline fan with integral control
2 x 8'' Section of galvanized duct
4 x ADC4 clamps
1 x Grommet for tubing
1 x Mounting bracket and hardware
1 x Indicator panel
1 x 2" x 4" Indicator cover plate
1 x 50 ft (15.4 m) Communication cable
1 x Warning label for indicator cover plate
I M P ORTA N T S AF E T Y I NS T RU C T I O N S
SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Summary of Contents for atmosphere VORTEX POWERFANS VTX-DEDPV
- Page 1 VTX-DEDPV — USER MANUAL VTX-DEDPV KIT 1 x Inline fan with integral control 2 x 8’’ Section of galvanized duct 4 x ADC4 clamps 1 x Grommet for tubing 1 x Mounting bracket and hardware 1 x Indicator panel 1 x 2” x 4” Indicator cover plate 1 x 50 ft (15.4 m) Communication cable 1 x Warning label for indicator cover plate I M P ORTA N T S AF E T Y I NS T RU C T I O N S...
- Page 2 TO PREVENT THE POSSIBILITY OF DRYER FAN CAVITATION AND/OR EXHAUSTING EXCESS HEAT REQUIRED FOR THE DRYING CYCLE AND COMPROMISING DRYING TIMES, BOOSTER FAN AIRFLOW MUST NOT EXCEED THE DRYER FAN CAPACITY. 2480 BOUL. DES ENTREPRISES TERREBONNE, QUEBEC J6X 4J8 Page : 2 450 477.1100 ATMOSPHERE.COM...
-
Page 3: Fan Location
Refer to mainte- nance instructions for inspection recommen- dations. All duct connections should be prop- erly sealed to prevent leakage and loss of fan performance. Wall exhaust Ⓒ 2022 ATMOSPHERE INC. Page : 3 REV R-1122... -
Page 4: Indicator Panel
Do not connect the tubing in such a manner as to allow condensation from the duct to collect in the tubing. Mark the opposite end of the pressure tubing ½ inch from the edge and insert into the grommet until the marking is reached. 2480 BOUL. DES ENTREPRISES TERREBONNE, QUEBEC J6X 4J8 Page : 4 450 477.1100 ATMOSPHERE.COM... - Page 5 — Warning label STEP 3 Install waining label sticker next to the indicator panel. The VTX-DEDPV is equipped with a re- mote mount, low voltage, operation indicator panel. This wall-mounted indicator panel contains Ⓒ 2022 ATMOSPHERE INC. Page : 5 REV R-1122...
- Page 6 IMPORTANT — Make sure all of the following are performed before supplying power to the VTX-DEDPV. Confirm the VTX-DEDPV and the entire duct system is completely installed and clear of lint. (Required for proper calibration) 2480 BOUL. DES ENTREPRISES TERREBONNE, QUEBEC J6X 4J8 Page : 6 450 477.1100 ATMOSPHERE.COM...
-
Page 7: Recommended Maintenance
Fan impeller may accumulate lint. Periodic inspection, based upon dryer usage, should be per- formed to ensure that the fan impeller is not obstructed or loaded with lint. Ⓒ 2022 ATMOSPHERE INC. Page : 7 REV R-1122... -
Page 8: Troubleshooting
LED. Stop the dryer immediately and have the vent system inspected by a per- son qualified to do so. This is an indication of excessive back pressure in the vent system. 2480 BOUL. DES ENTREPRISES TERREBONNE, QUEBEC J6X 4J8 Page : 8 450 477.1100 ATMOSPHERE.COM... -
Page 9: Wiring Diagram
WIRING DIAGRAM Ⓒ 2022 ATMOSPHERE INC. Page : 9 REV R-1122... -
Page 10: Warranty
DURING ENTIRE WARRANTY PERIOD — Atmosphere will repair or replace any part which has a factory defect in workmanship or material. Product will need to be returned to the Atmosphere factory, together with a copy of the purchase invoice and identified with RMA number. -
Page 11: Warranty Invalidation
You may have additional rights which vary from state to state. LIMITATION OF WARRANTY AND LIABILITY This warranty does not apply to any Atmosphere product or part which has failed as a result of misinstallation or abuse, incorrect electrical connections or alterations made by others, or use under abnormal operating conditions or misapplication of the product or parts.
