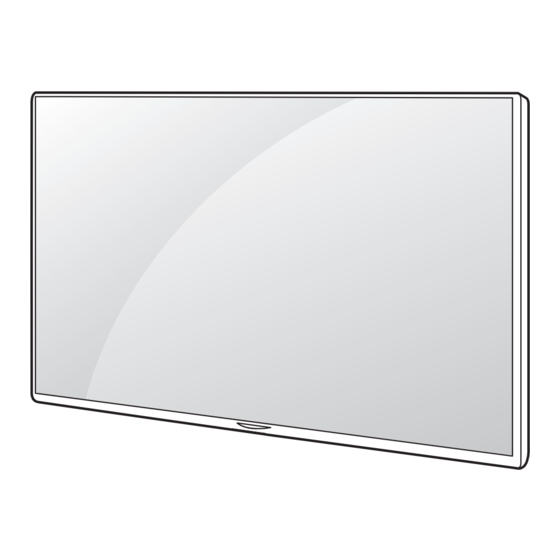

- Page 1 LED TV UF95** www.lg.com 55UF95** (M4 X L20) P/No: MFL68140581 (1501-REV01) Printed in Korea...
- Page 3 150 mm...
- Page 5 VIDEO AUDIO MONO AUDIO VIDEO...
- Page 7 55UF950T-TA 65UF950T-TA 55UF950Y-TA 65UF950Y-TA 1236 x 773 x 240 1455 x 896 x 249 (mm) 1236 x 722 x 47.6 1455 x 845 x 48.5 (mm) 22.2 29.6 (kg) 19.0 25.5 (kg)
- Page 9 OWNER’S MANUAL Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL68780112* P/NO : MFL68780112 (1501-REV00) Printed in Korea...
- Page 10 India region only. (Below sentence is not applicable for above 1920 X 1080 resolution TV models.) ATTENTION: This product is qualified for the BEE Star rating in the ‘Home’ Mode. The Objectives of Star Labeling Program is designed to promote energy efficient products and practices. When the television is initially set up, it is designed to meet the BEE Star Labeling requirements while maintaining optimum picture quality.
-
Page 11: Safety Instructions
Safety instructions Please read these safety precautions carefully before using the product. WARNING Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. Do not place the TV and/or remote control in the following environments: • ... - Page 12 Do not drop the product or let it fall over when connecting external Do not drop metallic objects such as coins, hair pins, chopsticks or wire devices. Otherwise, this may result in injury or damage to the product. into the product, or inflammable objects such as paper and matches. Children must pay particular attention.
- Page 13 Only use the attachments / accessories specified by the manufacturer. Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation. When installing the antenna, consult with a qualified service technician.
- Page 14 We recommend that you maintain a distance of at least 2 to 7 times Do not turn the product On/Off by plugging-in or unplugging the power the diagonal screen size when watching TV. If you watch TV for a long plug to the wall outlet.
- Page 15 Do not press strongly upon the panel with a hand or sharp object such When moving or unpacking the product, work in pairs because the as nail, pencil or pen, or make a scratch on it, as it may cause damage product is heavy.
- Page 16 Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain. * Disclaimer LG LED TVs are LCD TVs with LED backlighting. Those that have a photosensitive seizure or chronic illness • Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.
- Page 17 • Elderly - The elderly may perceive less 3D effect compared to the young. < *A 10 mm Do not sit closer to the TV than the recommended distance. < *B 18 mm Cautions when using the 3D glasses • Use a certified cable with the HDMI logo attached. • Make sure to use LG 3D glasses. Otherwise, you may not be able to • If you do not use a certified HDMI cable, the screen may not display view 3D videos properly. or a connection error may occur. (Recommended HDMI Cable Types) • Do not use 3D glasses instead of your normal glasses, sunglasses or - High-Speed HDMI®/ Cable (3 m or less) protective goggles. - High-Speed HDMI®/ Cable with Ethernet (3 m or less) • Using modified 3D glasses may cause eye strain or image distortion. CAUTION • Do not keep your 3D glasses in extremely high or low ...
-
Page 18: Separate Purchase
AG-F***DP Cinema 3D Glasses Magic Remote Dual Play Glasses AN-VC550 LG Audio Device Smart camera • Hold the top and bottom of the TV frame firmly. Make sure not to Maintenance hold the transparent part, speaker, or speaker grill area. -
Page 19: Using The Joystick Button
Using the joystick button Mounting on a table (Image shown may differ from your TV.) (Depending on model) You can simply operate the TV functions, pressing or moving the joystick 1 Lift and tilt the TV into its upright position on a table. button up, down, left or right. -
Page 20: Mounting On A Wall
We recommend the provided with the Kensington security system or visit http://www. use of LG’s wall mount bracket. When you do not use LG’s wall mount kensington.com. Connect the Kensington security system cable between bracket, please use a wall mount bracket where the device is adequately the TV and a table. -
Page 21: Connections (Notifications)
USB storage devices, PC, gaming devices, and other external • If you install the TV on a ceiling or slanted wall, it may fall and devices. result in severe injury. Use an authorised LG wall mount and NOTE contact the local dealer or qualified personnel. -
Page 22: Remote Control
Remote control Euro scart connection (Depending on model) (Depending on model) Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart The descriptions in this manual are based on the buttons on the remote cable as shown. -
Page 23: Magic Remote Functions
INPUT Q.MENU Teletext buttons ( ) These buttons are used for Adjusts the volume level. teletext. Accesses your favourite programme list. Sets the sleep timer. Used for viewing 3D video. (Depending on model) Returns to LIVE TV. Control buttons ( ) Controls the Premium Views the information of the current programme and contents, Time Machine or SmartShare menus or the SIMPLINK... - Page 24 (POWER) Turns the TV on or off. Used for viewing 3D video. (Only 3D models) (INPUT) Changes the input source. (Voice recognition) Network connection is required to use the voice recognition function. Number buttons Enters numbers. 1 Press the voice recognition button. Accesses the saved programmes list.
-
Page 25: Open Source Software Notice Information
• Inserting the battery in the wrong way may result in explosion. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 26: Troubleshooting
Troubleshooting Specifications Cannot control the TV with the remote control. Wireless module specification • Check the remote control sensor on the product and try again. • Because band channel used by the country could be different, the • Check if there is any obstacle between the product and the remote user can not change or adjust the operating frequency and this control. - Page 27 CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating 0 °C to 40 °C Temperature Operating Less than 80 % Humidity Environment condition Storage -20 °C to 60 °C Temperature Storage Less than 85 % Humidity 1 Only Satellite models.
-
Page 28: Environmental Information
5. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll Free No. 1800-180-9999 for details. All collection centre and pick up facilities are done by third parties whith LG Electronics India Pvt. Ltd. merely as a facilitator. For more... - Page 32 (Only DTV) Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
-
Page 33: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 34: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 35 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
- Page 36 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
- Page 37 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
- Page 38 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 39 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 40 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
- Page 41 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 42 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 43 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 44 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
