DSC HS-SP7670 Installation Instructions

Introduction

The HS-SP7670 features advanced load-sensing circuitry. The connected appliance
can be turned ON or OFF using the appliance's ON/OFF switch. Load sensing will also
turn on power to the appliance when it detects that the appliance has been con-
nected to the module.

Specifications

Supply Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120V
Output Load: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500W max.
Operating Temperature:. . . . . . . . . . . . . .-20ºC to 40ºC, non-condensing humidity
Controls: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ON/OFF buttons, Timer slide switch
Indicators: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Red LED – no power to appliance
Timer Range . . . . . . . . . . . . . . . . . . . . . . . .approximately 1 minute to 60 minutes
Approvals: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, ULC, ICS03, and FCC Part 15
Warning: Do NOT exceed the electrical ratings listed here.

Timer Operation

1. Plug the HS-SP7670 into a 120V
2. Connect the appliance to the outlet on the safety plug.
3. Set the timer for the length of time you want the appliance to be on (approxi-
mately 1-60 minutes). Power to the appliance will turn off when the timer
expires.

Manual Operation

1. To turn the power to the appliance On, press the ON button. Power will be on
according to the setting of the timer switch.
2. To turn the power to the appliance Off, press the OFF button.
INSTALLATION INSTRUCTIONS

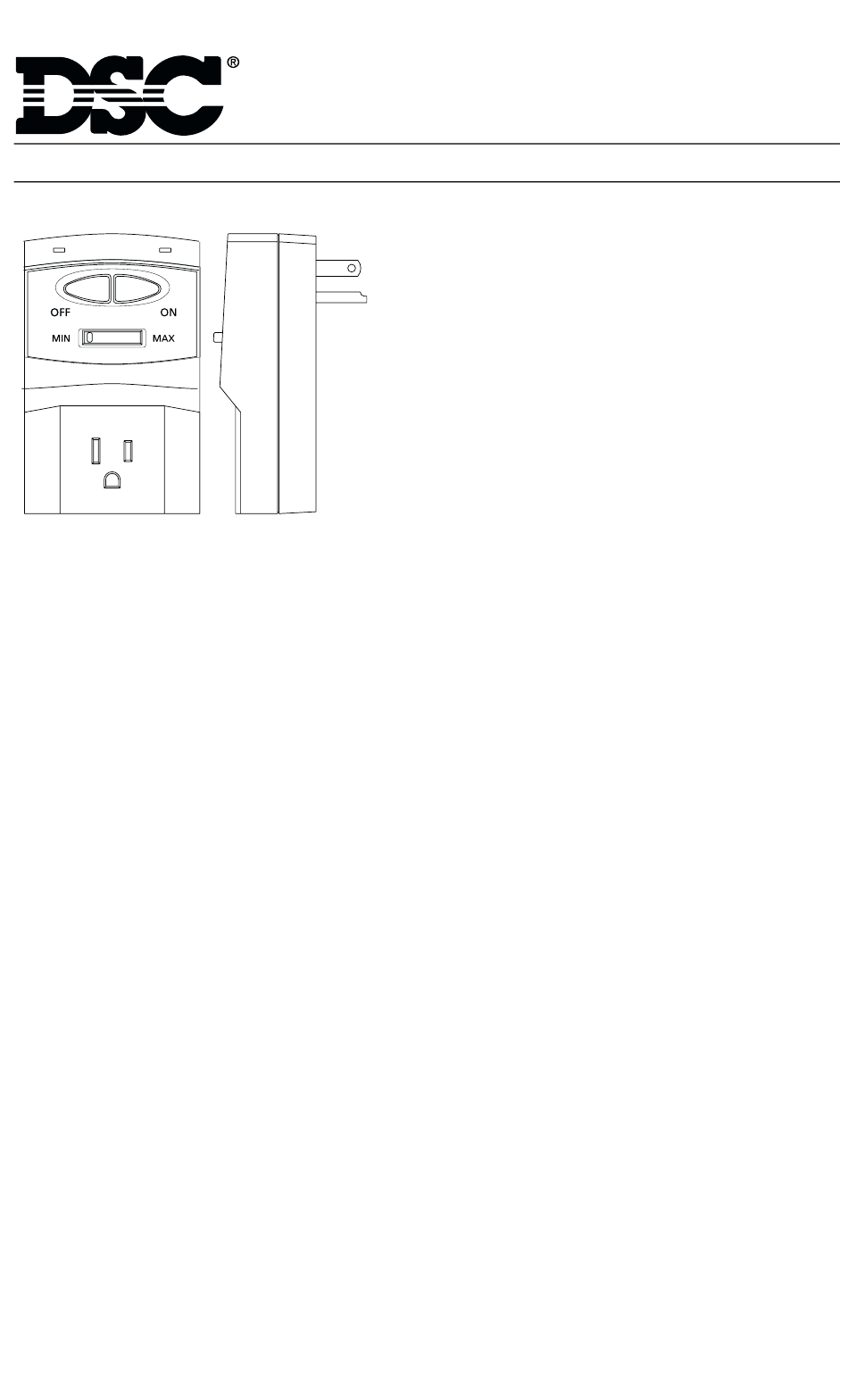

The HS-SP7670 Safety Plug plugs into any
standard residential 120V
provide control over appliances rated up to
1500 watts maximum. The module's user-
selectable timer automatically turns off power
to the appliance when the preset time has
elapsed, ensuring that appliances are not left
on for long periods of time without supervi-
sion. The appliance may be turned ON or OFF
manually using the buttons on the Safety Plug.
Green LED - power to appliance
residential power outlet.
AC
HS-SP7670
Safety Plug
electrical outlet to
AC
± 10%, 60Hz
AC
