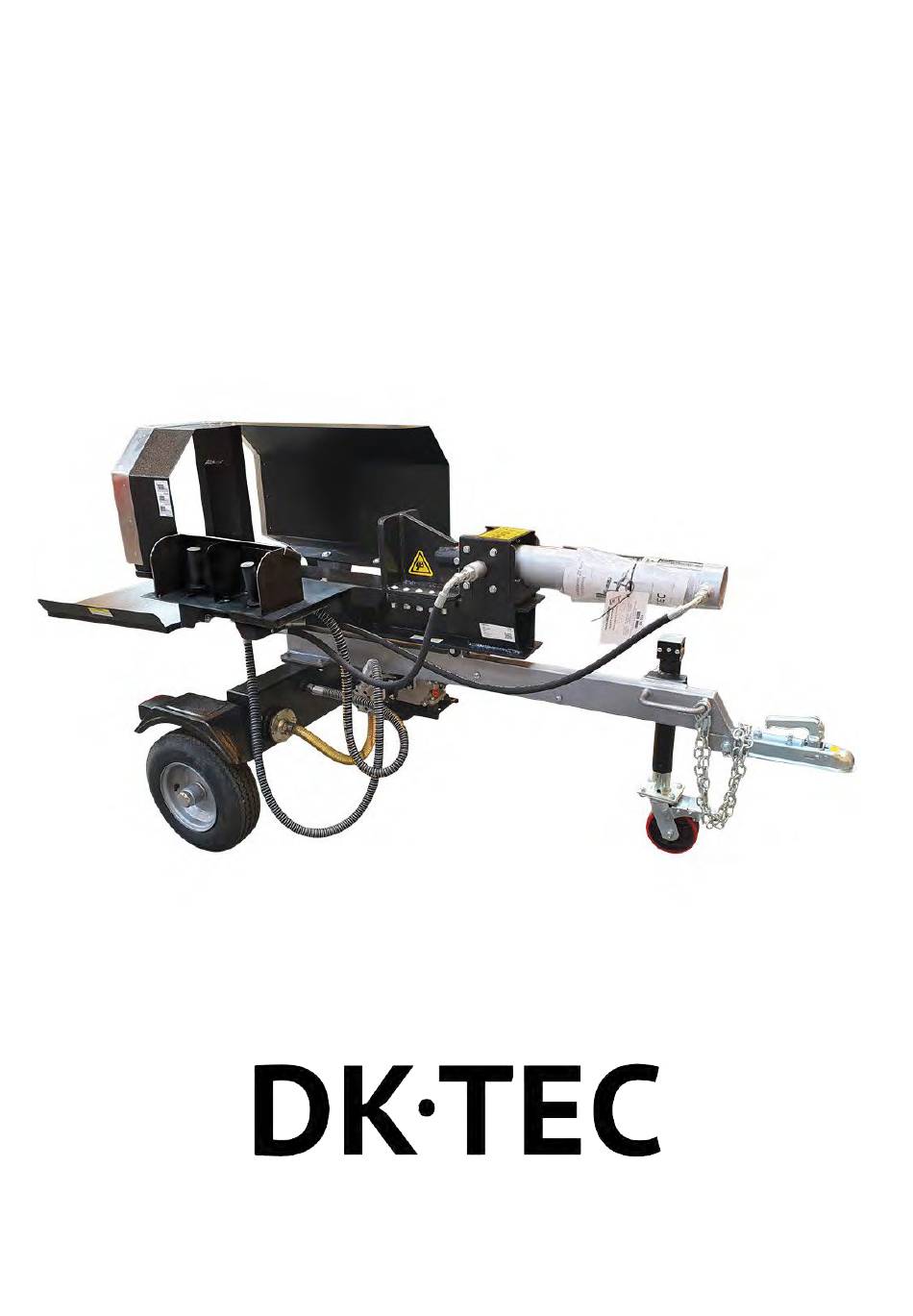

- Page 1 10/2021 Mobile wood splitter, 22 tons User Manual Translation of original manual Model: SPLSE2204 ALWAYS READ INSTRUCTIONS BEFORE USING THE MACHINE DK-TEC A / S Ærøvej 8, 5800 Nyborg Phone: 66128222 Email: info @ dk-tec.dk...
- Page 2 3. Instructionsforsikkertbrugafmaskinen ................7 4. Guidanceibrugafkløveren ....................10 5. Operationafkløveren ......................12 6. Maintenanceogopbevaring ....................13 Specifications Wood splitter 22 tons - horizontal splitting SPLSE2204 SPLSE2206-EL gasoline Max hoof length: 54 cm Min-max slide on wood: 80mm-435mm 6.5 petrol engine...
- Page 3 1. Safety instructions • Read and understand this manual before using the wood splitter. • All users of this wood splitter must have read and understood the safety instructions, the user manual and the maintenance instructions as well as the storage instructions before use.
- Page 4 Definition of the safety labels DANGER! Indicates an immediate hazardous situation which, if not avoided, could result in death or serious injury. This warning symbol is limited to the most extreme situations; they are typically used for machine components which, due to functional purposes, cannot be shielded.
- Page 5 2. Machine components Model: SPLSE2204 1. Shield - 2. Hydraulic hose - output - 3. Support wheels - 4. Safety chain - 5. Ball coupling - input - 7. Hydraulic piston - 8. Safety shield - 9. Cleaver foot - 10.
- Page 6 Keep bystanders, helpers, pets and children at least 7 meters from the tree clover , while in use. Stop the tree clover if anyone enters the area. • Never drive the SPLSE2204 engine indoors or in a poorly ventilated area. The engine exhaust contains carbon monoxide, an odorless but deadly gas. •...
- Page 7 • (SPLSE2206) Check that the motor is running the right way around otherwise the machine will not work properly and the hydraulic pump may be damaged. • If petrol is spilled, wipe it off the engine and the wood splitter. Move the tree clover to another area.
- Page 8 The wood splitter engine For models with Petrol engine SPLSE2204 Filling with hydraulic oil Electrical switch, Tank - Unleaded petrol Motor ON / OFF 1. Start handle 2. Engine speeds 3. Choker function 4. Open / close for petrol Operating lever -...
- Page 9 Safety rules - Warning! 1) Read this manual completely and thoroughly before using the machine • Serious injury, accident or death can occur if you do not follow the instructions carefully. Anyone using this clover must have read and understood the safety rules, instructions, and maintenance instructions beforehand.
- Page 10 7.) Inhalation hazards • Toxic fumes from the engine can kill you. Do not use the engine indoors unless there is very heavy ventilation. NOTE: Hot exhaust. You may be burned if you touch the exhaust. 4. Instructions for using the clover Proper use of the clover: 1.
- Page 11 Risk of pulling the clover after a car Serious injury or death can occur if the clover is pulled after the car if you do not follow the safety rules below. Read the rules that apply to towing an implement as described in your manual for your car. Drive carefully, be aware that your vehicle has become longer when the clover is behind.
- Page 12 • Use the outrigger to prevent the wood splitter from moving during operation and to block both decks. • Place the wood splitter in a horizontal position. • Lay a piece of wood against the wedge. (Maximum length: 54 cm) •...
- Page 13 8. Always refer to the operating instructions for proper instructions for out-of-season storage. 9. If the fuel tank needs to be emptied, do this outdoors. (SPLSE2204) 10. Comply with laws and regulations available for gas, oil, etc. to protect the environment.
- Page 14 EC DECLARATION OF CONFORMITY DK Fabrikant JiashanSuperpowerToolsCo.,Ltd. No.391,HuiminRoad,HuiminTown,JiashanCounty,Zhejia ng, P. R. China Erklærerhermedatfølgendemaskine: Betegnelse: Brændekløver Model: LSE2204(SPLSE2204,) Beskrivelse: Brændekløverenbrugestilatkløveellerflække brændevedatløftedetoppåmaskinenogladestemplet skubbeknivenimodbrændet ErfremstilletioverensstemmelsemedfølgendeEF-direktiv: • Maskindirektivet2006/42/EC Anvendtestandarder: ENISO12100:2010, EN609-1:2017 EvaChen21/10/2021 nameanddate signature...
- Page 15 Always see the latest version of the manual, as well as the spare parts list / parts list for your item www.dk-tec.dk, under the machine itself.
