HYDRANTS

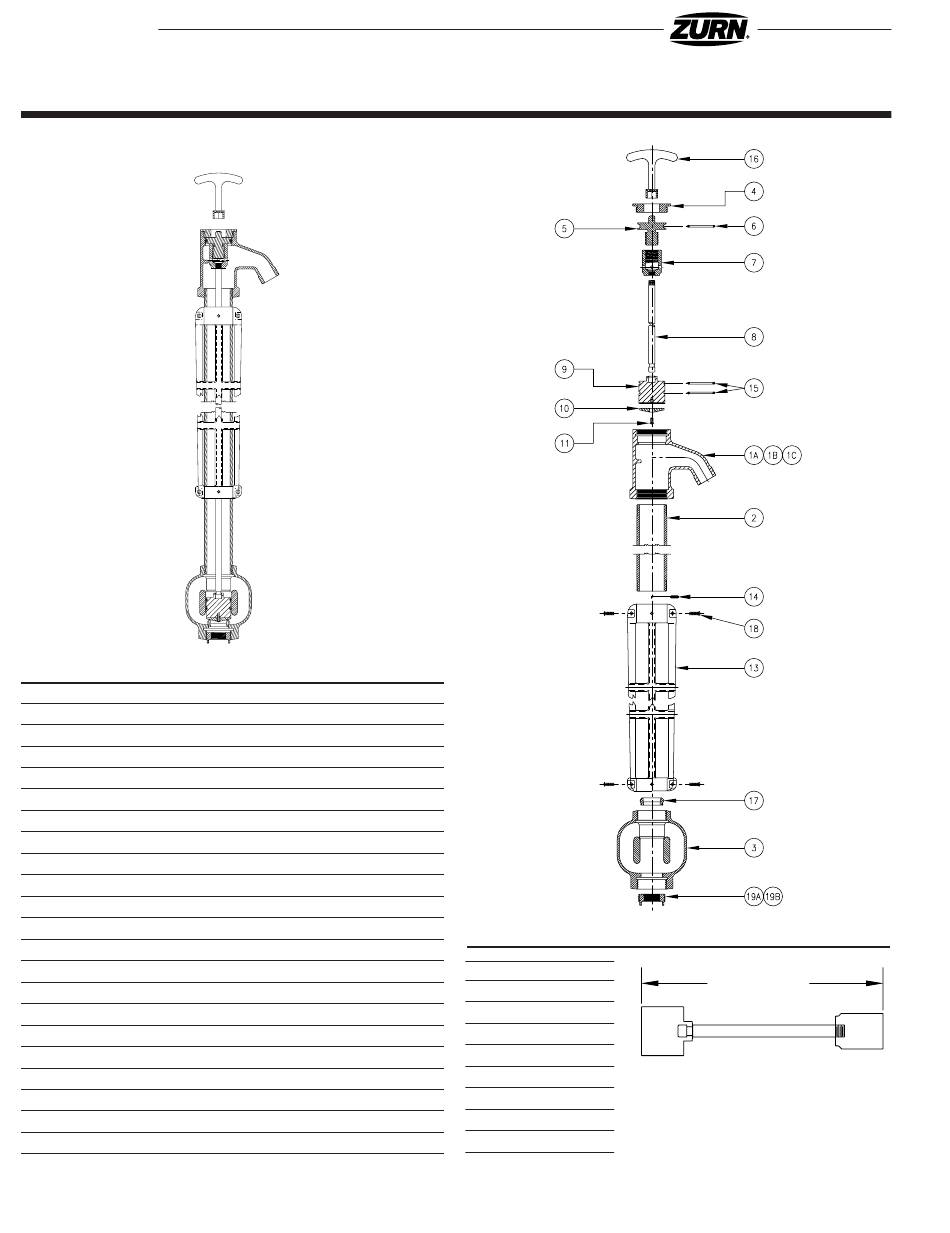

Z1390 POST HYDRANT Parts Assembly, Parts List, and Operating Rod Assemblies

Z1390 Parts Assembly

Z1390 Parts List

Item Description
1A Head – 1-1/4" Hose Connection
1B Head – 1-1/2" Hose Connection
1C Head – 2" Hose Connection
2 Casing
3 Valve Housing
4 Face Nut
*5 Operating Screw
*6 O-Ring
*7 Operating Coupling
8 Operating Rod
9 Washer Guide
*10 Washer
*11 Screw #10-24 NC
13 Casing Guard
14 Casing Guard Setscrew
*15 O-Ring
*16 Key
*17 Removable Seat
18 Screw #10-24 NC
19A 1-1/2" x 2" Bushing
19B 1-1/4" x 2" Bushing
*Items are available in -RK Repair Kit Option bag (#66955-200-9).
ZURN PLUMBING PRODUCTS GROUP SPECIFICATION DRAINAGE OPERATION, 1801 PITTSBURGH AVENUE, ERIE, PA 16502 PHONE 814/455-0921 FAX: 814/454-7929 WEBSITE: www.zurn.com
Page 82
Qty. Part No.
1 25519-003
1 25519-002
1 25519-001
1 25515-XXX
1 25517-003
1 25505-001
1 25506-001
1 23750-037
1 25507-001
1 25516-XXX
1 31436-001

Operating Rod Assemblies

1 25520-001
2' Bury
1 14853-042
3' Bury
2 38489-001
4' Bury
2 18006-045
5' Bury
2 23750-040
6' Bury
1 11600-001
7' Bury
1 25510-001
8' Bury
4 14853-046
9' Bury
1 23471-007
10' Bury
1 23471-009
55"
Operating Rod
67"
Assembly Length
79"
91"
103"
115"
127"
139"
151"
