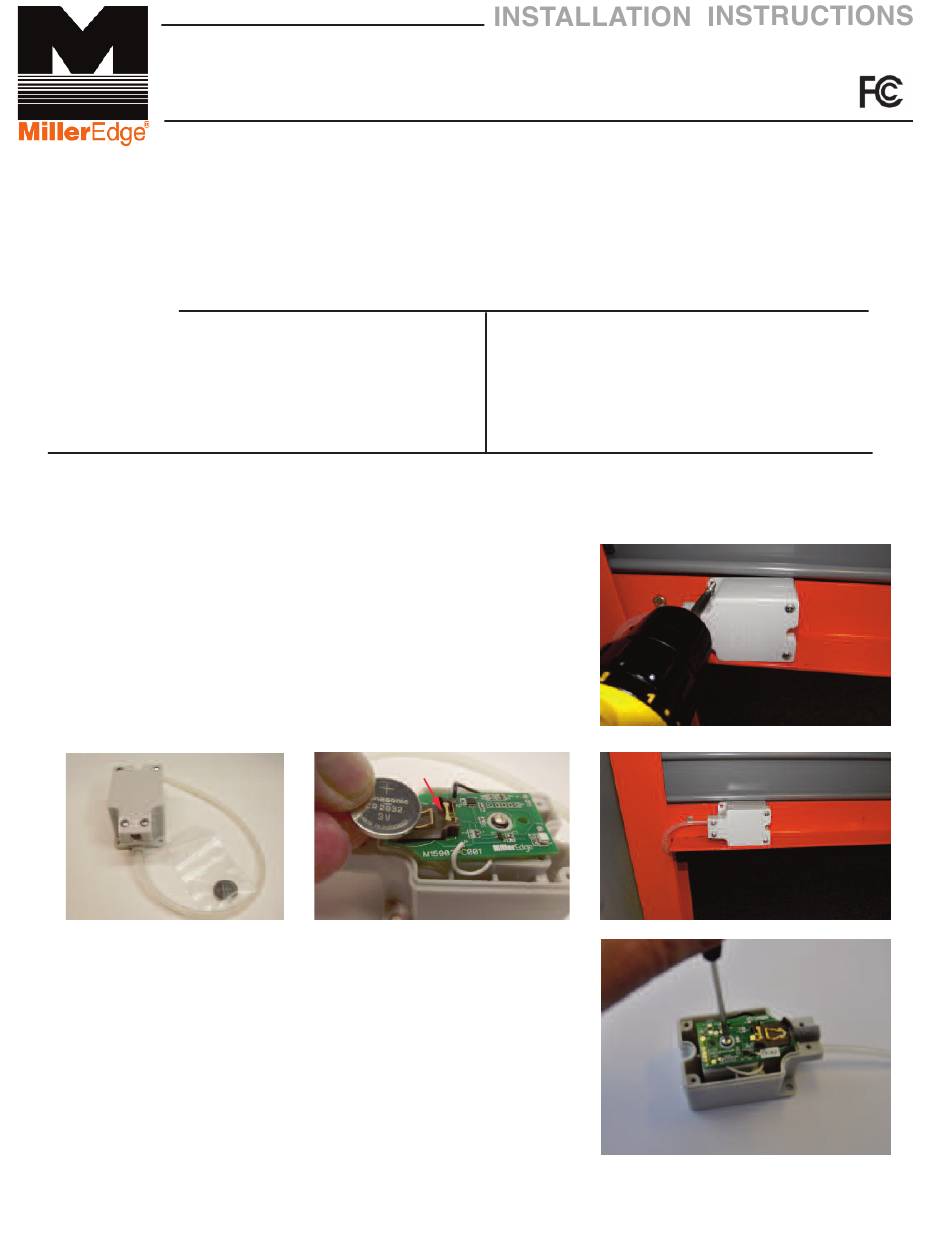

Miller Edge AW14-RF Installation Instructions

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION.
The AW14-RF switch contains a transmitter that is embedded within the switch enclosure. There is no
need to hardwire coil cords or retracting reels, which saves installation time and improves visual
aesthetics. The AW14-RF switch kit includes an MRF-01 receiver which is wired to the motor controls.
Kits may be installed on doors up to 18 feet wide.
1-

Parts List

PART NUMBER
1. AW14-RF Transmitter/Air Wave Switch Assembly
2. Battery, CR2032
2-

Install Transmitter / Air Switch Assembly

2-1. Open and unpack the battery and remove lid from the AW14-RF.
2-2. Install the CR2032 battery as shown with the "+" side up.
Be sure the battery slides under the clip as shown.
Notice that the RED LED blinks once upon insertion.
Replace the lid of the AW14-RF
2-3 Position and attach the AW14-RF to the bottom angle or end stile
of the door.
2-4 Depending on the configuration, make the necessary airline
connections.
3-

Adjust The Switch Sensitivity

3-1 The AW14 is factory set and should rarely need to be adjusted.
If you determine that the switch sensitivity is not correct, to
make the switch more sensitive, turn the adjustment
screw clock-wise. This will move the screw closer to the
diaphragm inside the switch, thus less air movement is
required to activate the switch (LED will Blink).
Longer edges will require more sensitivity. Too sensitive
will cause unwanted activations caused from door vibration.
