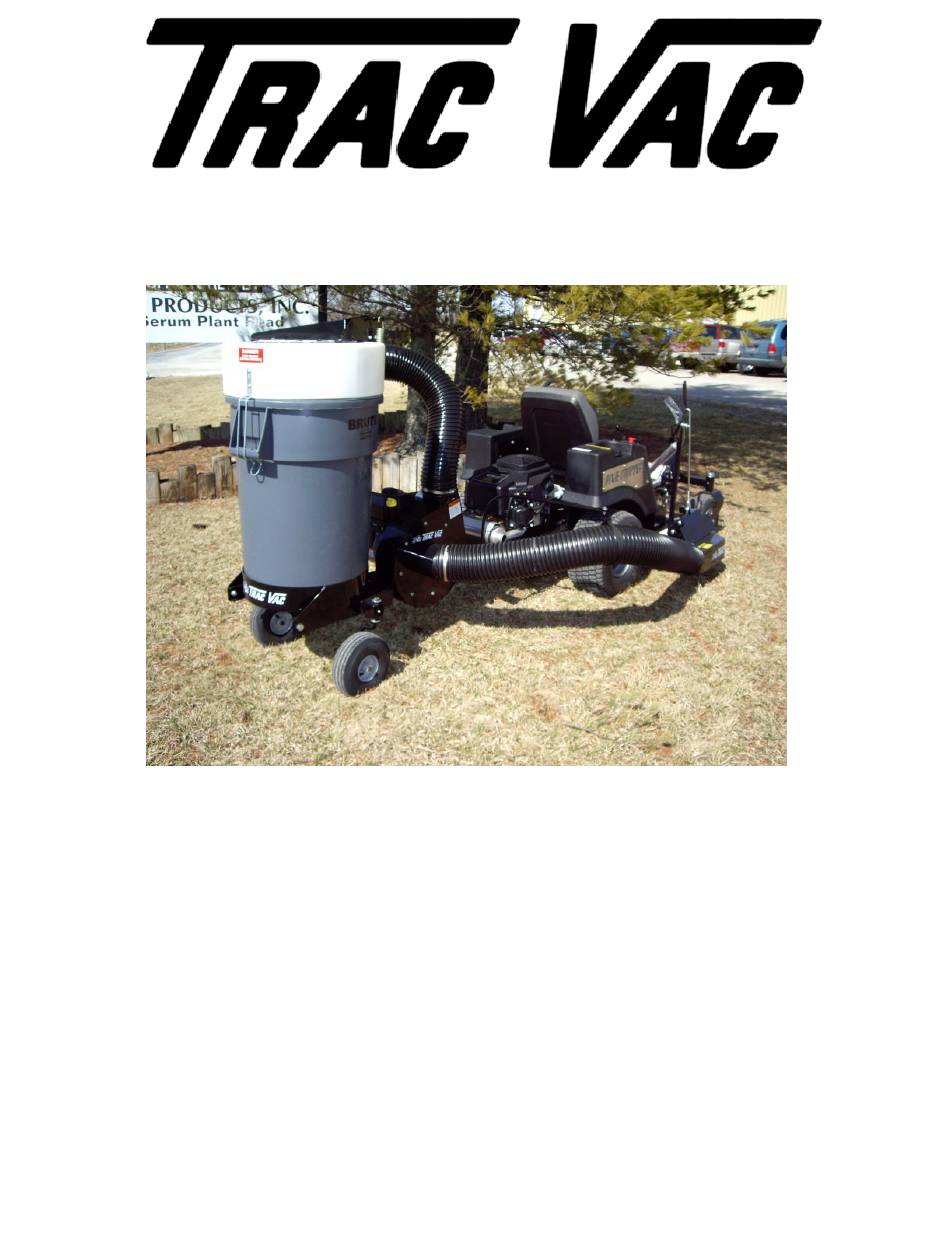

- Page 1 Model 452-DIC/DH Operating and Assembly Manual Midwest Equipment Manufacturing, Inc. 5225 Serum Plant Road Thorntown, IN 46071 02-14-12...
- Page 2 SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. This symbol means Attention!!!!! It is used to point out safety precautions. ▪...
- Page 3 Model 452-DIC/DH/DK Trac-Vac Parts List Key Part No. Description Qty. Key Part No. Description Qty. 45212 Frame, RH 3120612 Housing Bolt (5.5 Briggs 56021 Engine, 5.5 HP Briggs 3120608 Housing Bolt (Honda) Intek IC 3750238 Turbine Set Screw 56022 Engine, 5.5 HP Honda 1871714 Turbine Key (5.5 Briggs 56030 Turbine Housing (5.5 Briggs,...
- Page 4 Trac-Vac Model 452-DIC/DH/DK Accessories:...
- Page 6 Model 452-D Assembly Instructions 1. Slip one nylon washer (30) over each caster yoke (7) pin. Slip one 3/4” flatwasher over each pin. Insert caster into frame (1). Slip another 3/4” flatwasher over pin and secure with 1/8” cotter pin. Fig. 1 2.
- Page 7 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Engine fails to start 1. Spark plug wire disconnected 1. Connect wire to spark plug 2. Fuel tank empty 2. Fill tank with clean fuel 3. Faulty spark plug 3. Clean, adjust gap or replace Loss of power or erratic operation 1.
- Page 8 TRAC VAC WARRANTY POLICY Midwest Equipment Manufacturing, Inc. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
