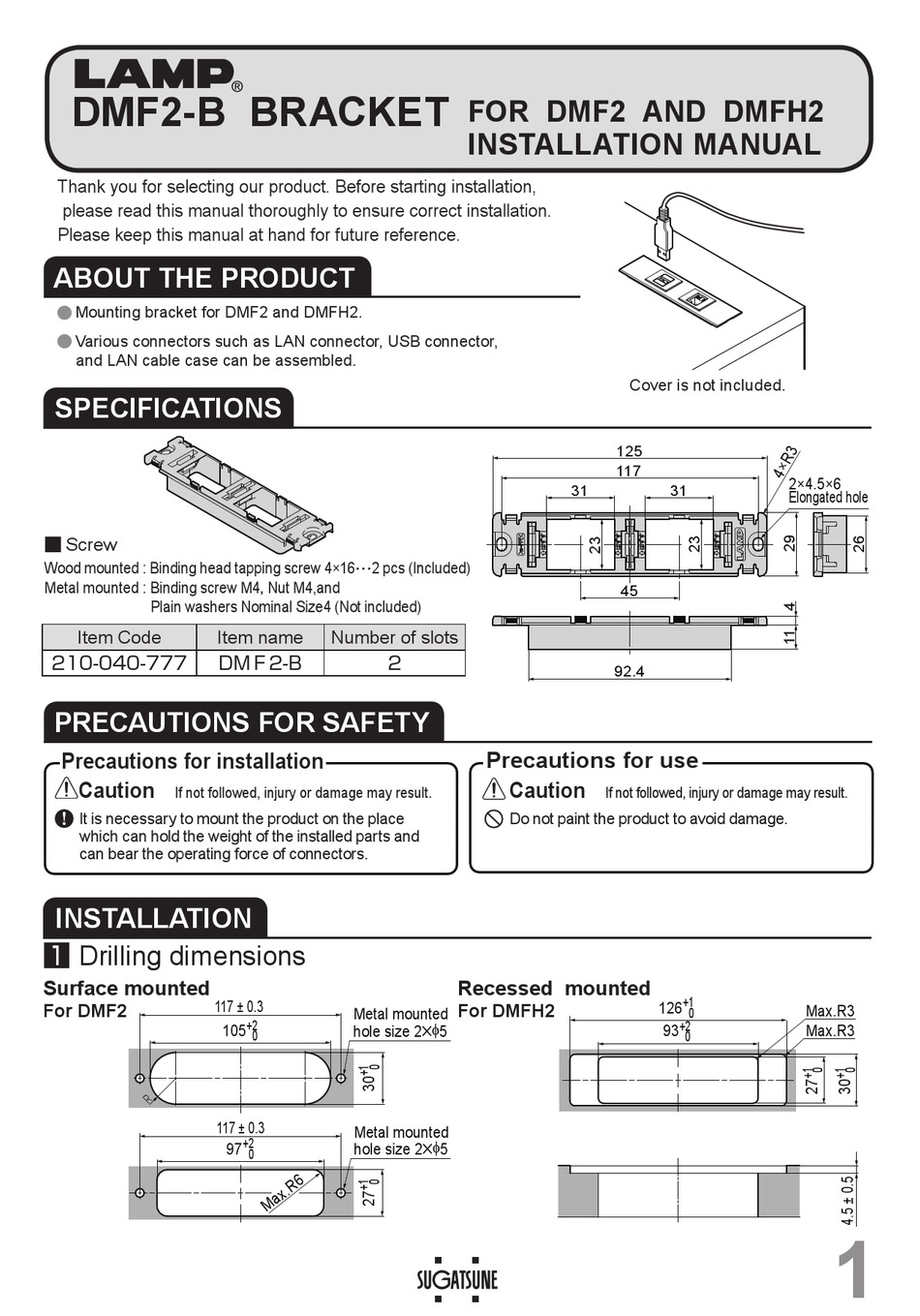

Lamp SUGATSUNE DMF2-B Installation Manual

DMF2-B BRACKET
Thank you for selecting our product. Before starting installation,
please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
● Mounting bracket for DMF2 and DMFH2.
● Various connectors such as LAN connector, USB connector,
and LAN cable case can be assembled.
SPECIFICATIONS
■ Screw
Wood mounted : Binding head tapping screw 4×16･･･2 pcs (Included)
Metal mounted : Binding screw M4, Nut M4,and
Plain washers Nominal Size4 (Not included)
Item Code
210-040-777
PRECAUTIONS FOR SAFETY
Precautions for installation
Caution
If not followed, injury or damage may result.
It is necessary to mount the product on the place
which can hold the weight of the installed parts and
can bear the operating force of connectors.
INSTALLATION
Drilling dimensions
Surface mounted
117 ± 0.3
For DMF2
117 ± 0.3
Item name Number of slots
DMＦ2-B 2
Metal mounted
+2
105
hole size 2× 5
0
Metal mounted
+2
97 hole size 2× 5
0
FOR DMF2 AND DMFH2
INSTALLATION MANUAL
Cover is not included.
125
117
31
45
92.4
Precautions for use
Caution
If not followed, injury or damage may result.
Do not paint the product to avoid damage.
Recessed mounted
For DMFH2
2×4.5×6
31
Elongated hole
+1
126
Max.R3
0
+2
93 Max.R3
0
