Passive GRS 8SW-4HE 8" Mini Subwoofer Kit Thank you for purchasing the Passive GRS 8SW-4HE 8" mini subwoofer kit. The enclosure for this speaker kit was precision cut using CNC machinery for a tight fit to make it easy to finish. With a little time and patience, your finished product will provide years of enjoyment.
Enclosure Components: B) Baffle C) 2 x Side Panel D) Back Panel E) 2 x Top/Bottom Panel F) Brace Enclosure Assembly: First, before gluing anything, do a dry fit of the enclosure to familiarize yourself with the parts and assembly. This will also give you a chance to ensure that all pieces have been cut properly.
Page 3
Apply a small bead of glue to the inside of all joining surfaces of the Back Panel (B) and one Top/Bottom panel (E). Then set in place applying enough pressure to ensure glue is spread through each joint (some glue squeeze-out can be expected). Apply a small bead of glue to the inside of all joining surfaces of one Side Panel (F) and the back and top/bottom panel assembly.
Page 4
Apply a small bead of glue to the inside of all joining surfaces of the other Side Panel (F) and the enclosure assembly. Then set in place applying enough pressure to ensure glue is spread through each joint (some glue squeeze-out can be expected). Apply a small bead of glue to the inside of all joining surfaces of the other Top/Bottom Panel (E) and the enclosure assembly.
Page 5
Make sure that all edges are flush and securely apply clamps from side to side, top to bottom, and front to back. Apply ample pressure to ensure glue is spread evenly through each joint (some glue squeeze-out can be expected). Visually inspect all seams to make sure they are all closed tightly, you may need to relocate clamps (or add more clamps) to get a perfect fit.

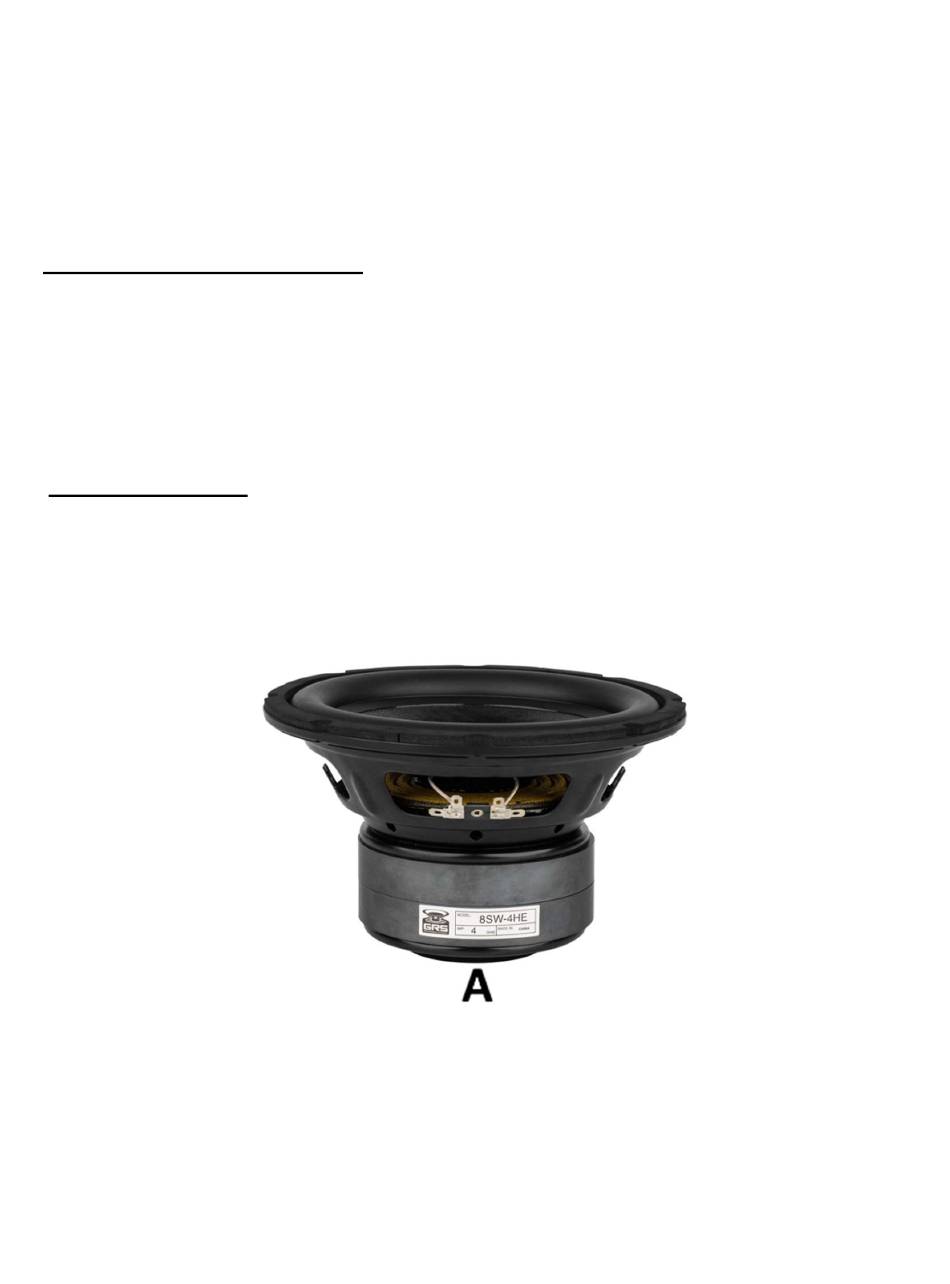

Locate and install your preferred power terminals (Spring terminals, binding posts, speakON connector, etc…) and internal wiring. Connect the speaker wires to the appropriate terminals on the GRS 8SW-4HE 8" High Excursion Subwoofer (A). Carefully set the driver into the cutout and secure using the fastener of your choice.
