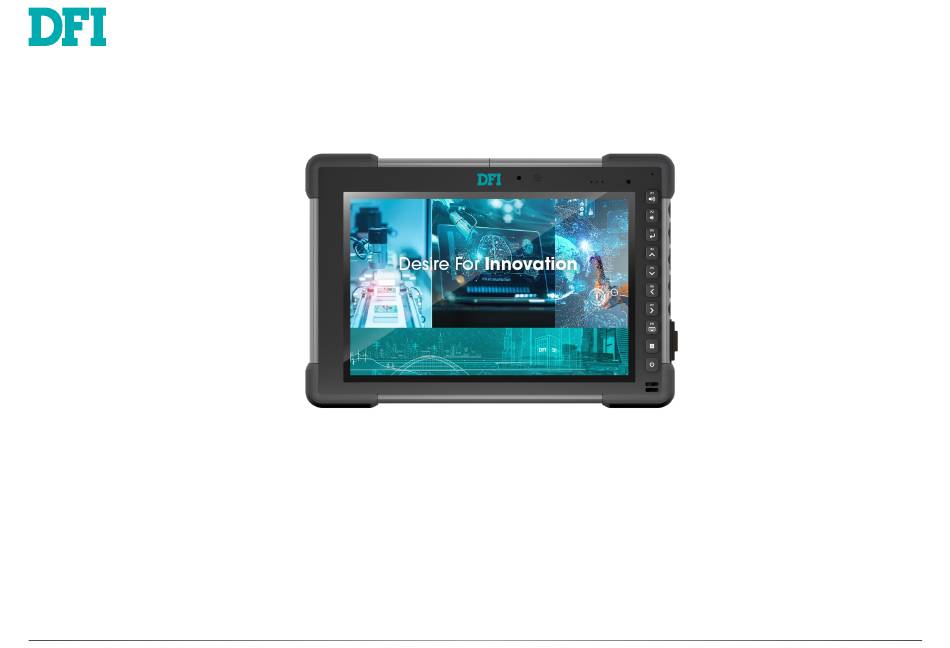

- Page 1 JUR101-TGU 10.1" Rugged Tablet User’s Manual...
-
Page 2: Copyright
This publication contains information that is protected by copyright. No part of it may be repro- To access the regulatory information for JUR101-TGU, please go to Device Settings > About > duced in any form or by any means or used to make any transformation/adaptation without the Regulatory. - Page 3 Restricted Materials Conformity In compliance with Industry Canada rules, the following statement must appear on the device The JUR101-TGU conforms to the following restricted materials regulations: or in the user documentation: This Class B digital apparatus complies with Canadian ICES-003.
-
Page 4: About This Manual
This may differ in accordance with the sales region or models in which it was sold. For the product that has been modified or altered. more information about the standard package in your region, please contact your dealer or sales representative. User's Manual | JUR101-TGU... -
Page 5: Product Warnings
• The AC wall charger must be approved by DFI, have an output rating of 19V DC and a mini mum 3.16A, and be certified or listed by a nationally recognized testing laboratory. -
Page 6: Safety Precautions
Do not use liquid or spray detergents for cleaning. • Before connecting, make sure that the power supply voltage is correct. The device is connected to a power outlet which should be grounded connection. User's Manual | JUR101-TGU... -
Page 7: Table Of Contents
Office Stand ........................31 Copyright ............................2 Chapter 5 - Storage, Maintenance, and Recycling ..............32 Trademarks ............................ 2 Store the JUR101-TGU and Battery Pack ................32 Regulatory Information ........................ 2 Protect the Touchscreen ....................32 Clean the JUR101-TGU ......................32 About this Manual ......................... 4 Recycle the JUR101-TGU and Batteries ................32... -
Page 8: Chapter 1 - Introduction
X Overview X Dimensions The Rugged Table JUR101-TGU has the Windows 11 IoT Enterprise or Windows 11 Pro operat- ing system. Standard features include a 10-inch display, capacitive touchscreen, hot-swapable battery, keypad, Bluetooth, Wi-Fi, and front and rear cameras. Standard accessories include lithiumion battery packs, an AC wall charger, hand strap, and a fine tip capacitive stylus and tether. -
Page 9: Getting To Know The Jur101-Tgu
Chapter 1 INTRODUCTION X Getting to Know the JUR101-TGU Front View Light Sensor Display /Touchscreen Camera Status LED Microphone Front-facing Camera Keypad Speaker LED Indicator Lights User's Manual | JUR101-TGU... -
Page 10: Rear View
Rear View Stylus Tether Attachment Point Rear Camera I/O Port Cover Security Lock Slot Barcode Imager (optional) RS-232 (optional) Threaded mounting holes Hand Strap Tether Look (x4) Label (x4) Battery Door Stylus Battery Door Latch Flash User's Manual | JUR101-TGU... -
Page 11: Side View
Chapter 1 INTRODUCTION Side View RS-232 (optional) 12V DC Input Port USB-C USB 3.1 Gen2 USB 3.1 Gen2 3.5mm Audio Jack User's Manual | JUR101-TGU... -
Page 12: Specifications
13 MP with LED illumination BARCODE MODULE 1D/2D IMAGER Symbologies: all common 1D and 2D (PDF417,MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code, Aztec,MaxiCode, Postal (Optional) codes, etc.) Barcode Connector™ utility, wedge and configuration, SDK support available User's Manual | JUR101-TGU... - Page 13 1.76 kg (depending on battery and expansion configuration) ENVIRONMENT Operating Temperature -20 ~ 50°C Storage Temperature -30 ~ 70°C Relative Humidity STANDARDS AND Shock MIL-STD-810H, Method 514.6 Vibration CERTIFICATIONS Vibration MIL-STD-810H, Method 516.6 Shock Certifciation CE, FCC Class B, UKCA, Industry Canada User's Manual | JUR101-TGU...
-
Page 14: Chapter 2 - Getting Started
JUR101-TGU. Note: Use the AC wall charger that came with JUR101-TGU or another approved charger from DFI. If you use a USB-C charger ensure it can deliver 20V with a minimum of 60 Watts. User's Manual | JUR101-TGU... -
Page 15: Attach The Hand Strap
• The JUR101-TGU must have at least one battery installed to operate. • The JUR101-TGU is not sealed against water and dust when the battery door is not installed. • Do not insert the battery pack straight down. Damage to the unit could occur. -
Page 16: Attach The Stylus Tether
4.Insert the stylus with the attached tether through this loop and tighten the loop. 5.Place the stylus into the stylus storage slot located on the back side of the JUR101-TGU by lining up the notched end of the stylus with the stylus catch on the JUR101-TGU. -
Page 17: Chapter 3 - Standard Features
X Device Settings App The JUR101-TGU has a bright color display and capacitive touchscreen with a diagonal view- The JUR101-TGU has a built-in app called Device Settings. In this app you can see detailed ing area of 10.1 inches (256.54 mm). - Page 18 0%, 25%, 50%, 75%, or 100%. Dimming the keypad backlight extends battery life On the Keypad screen, select All Users Settings to make keypad changes for any user logged when the JUR101-TGU is in use. into the device. Select Per User Settings to customize keypad changes for your individual ac- count.
- Page 19 When either of the Wet touchscreen profiles are in use, the JUR101-TGU must be held at a minimum 30 degree angle. While third party may work with the JUR101-TGU touchscreen, performance may vary.
-
Page 20: Led Activity Indicators
The AC wall charger is plugged in and the batteries are full The JUR101-TGU has a 19 V DC power input jack, two USB 3.1 Gen 2, one USB-C, and a 3.5 (not charging) and the device is running or put to sleep. If the JUR101-TGU mm audio jack. -
Page 21: Micro Sd And Nano Sim Cards
STANDARD FEATURES X Micro SD and Nano SIM Cards The JUR101-TGU has a slot for an SD card and a SIM card located in the battery compartment. 5. Insert your SD card or SIM card into the card tray. The card slot and tray are designed to hold the card securely in place so it will not come out or 6. -
Page 22: Audio Features
1. Open an app that uses the compass. 2. Move the JUR101-TGU around in the air so that it is oriented in different directions and angles. An effective way to assure this is properly done is to move the JUR101-TGU back and forth making a sideways figure eight for approximately 30 seconds. -
Page 23: Bluetooth ® Wireless Communication
X Wi-Fi Wireless Networking X Bluetooth Wireless Communication ® The JUR101-TGU has built-in Wi-Fi wireless networking to connect to the internet or an office network. The JUR101-TGU has built-in Bluetooth ® wireless technology, allowing you to connect it to other wireless devices with Bluetooth technology. -
Page 24: Power Management
If the JUR101-TGU battery reaches a low charge, it automatically hibernates to prevent further drain on the battery. Charge the Battery Packs To take the JUR101-TGU out of hibernation, plug it in with the AC wall charger. For instructions on how to insert and charge the removable battery packs, refer to Charge and You will see a warning to keep the charger connected until the charge is sufficient. - Page 25 5. Take out the removable batteries and store them in a cool, dry location. 6. When you are ready to power on the JUR101-TGU, replace the battery packs. Before powering the unit on, plug in the AC wall charger and connect it to the JUR101-TGU. CAUTION: The unit is not designed to run on external power without a battery installed.
-
Page 26: Settings In Bios
WLAN, Bluetooth, cell modem/GNSS, or LEDs and turn them on or off. If the JUR101-TGU is completely stuck and won’t respond or you cannot get to the Start menu, 5. After changes are made, select P1 on the keypad (or F10 on an external keyboard) to save the hold the power key down for five seconds and wait for at least five minutes for the system to changes. -
Page 27: Chapter 4 - Optional Features And Accessories
RS-232 is shown: ■ RS-232 signals enabled during device sleep: when this is on the RS-232 input and output signals are enabled when the JUR101-TGU is running or in sleep mode. ■ Configure pin 9 as input or power supply: Pin 9 is the Ring-In signal input. -
Page 28: Lte Data Modem & Gnss
SIM card (slot on the right in the left battery compartment). 5. Use the card tray eject pin that came with your JUR101-TGU to pop out the card tray. JUR101-TGU Geo/Cell models use an integrated 4G LTE cell modem and GPS/GNSS receiver with an internal antenna to provide position information. -
Page 29: Barcode Imager
The GPS/GNSS antenna in the JUR101-TGU is at the top under the JUR101-TGU label. It is intended to work in both portrait and landscape view. Do not put your hand or another object over this area; accuracy could be reduced. The more items between the antenna and the satellites, the lower the accuracy. -
Page 30: Battery Charger
2. Open an application or document to receive the barcode data and put the cursor where you want the data to be placed. 3. The barcode imager is located on the top of the JUR101-TGU when in landscape mode. Aim the barcode imager at the barcode. -
Page 31: Office Stand
OPTIONAL FEATURES AND ACCESSORIES X Office Stand The Office Stand is freestanding and enables you to use your JUR101-TGU as a desktop computer. When you receive the office stand, screw the two pieces together with the four screws and lock nuts included as shown in the picture to the left. -
Page 32: Chapter 5 - Storage, Maintenance, And Recycling
X Recycle the JUR101-TGU and Batteries X Store the JUR101-TGU and Battery Pack When the JUR101-TGU and Li-ion battery packs for your JUR101-TGU reach the end of their When the tablet is not being charged and is in a sleep state, service life, they must not be disposed of with municipal waste.
