Matter Over Thread Demo
Based on BDE Thread Module
Matter Over Thread Demo Quick Start Guide

1. Description

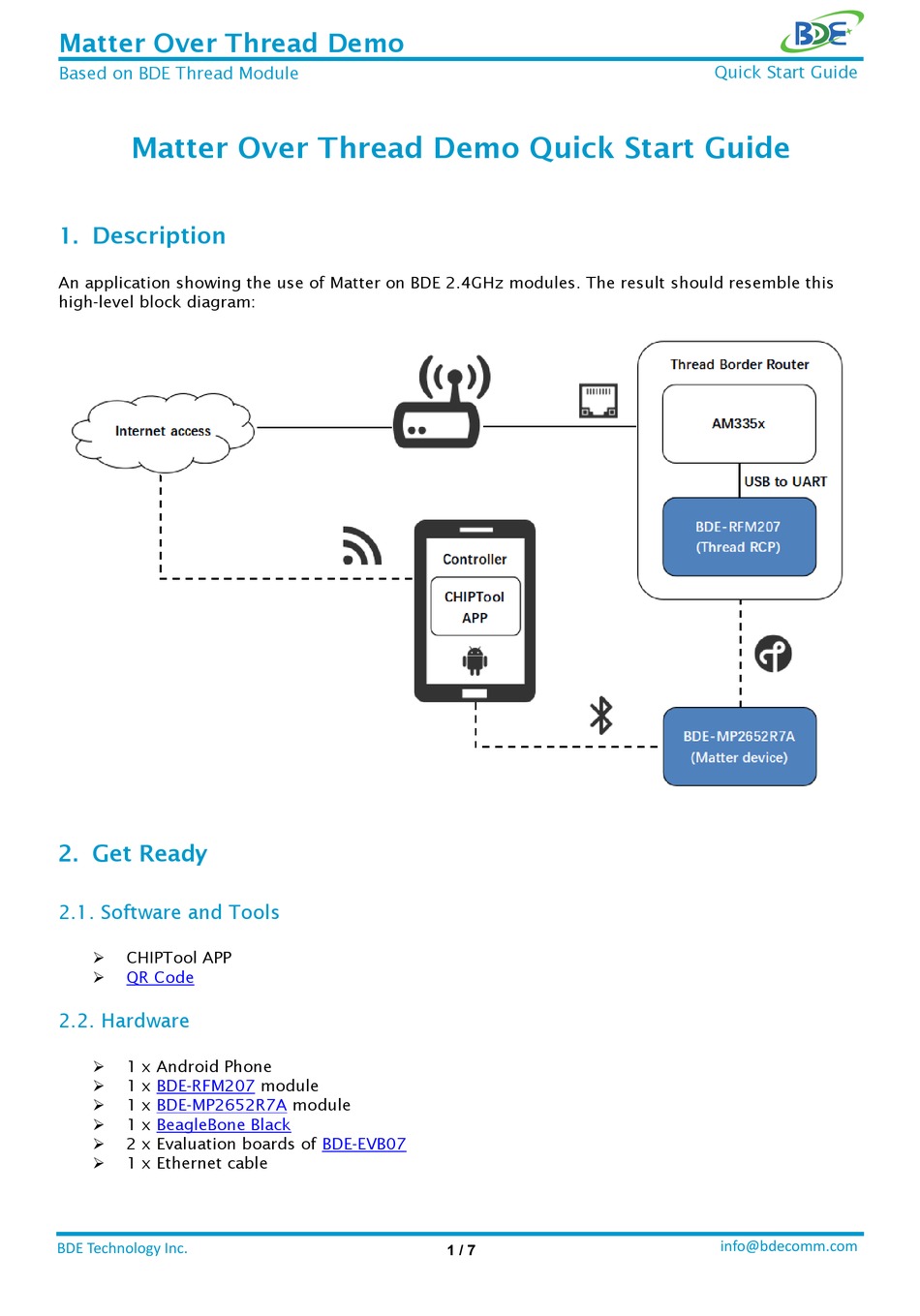

An application showing the use of Matter on BDE 2.4GHz modules. The result should resemble this
high-level block diagram:

2. Get Ready

2.1. Software and Tools

CHIPTool APP
QR Code

2.2. Hardware

1 x Android Phone
1 x
BDE-RFM207
1 x
BDE-MP2652R7A
1 x
BeagleBone Black
2 x Evaluation boards of
1 x Ethernet cable
BDE Technology Inc.
module
module
BDE-EVB07
1 / 7
Quick Start Guide
info@bdecomm.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matter Over Thread Demo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BDE Matter Over Thread Demo

  • Page 1 Based on BDE Thread Module Matter Over Thread Demo Quick Start Guide 1. Description An application showing the use of Matter on BDE 2.4GHz modules. The result should resemble this high-level block diagram: 2. Get Ready 2.1. Software and Tools CHIPTool APP ...
  • Page 2 Matter Over Thread Demo Quick Start Guide Based on BDE Thread Module 3. Running Demo It is assumed that these devices are all on the same network (e.g. this can be accomplished by connecting all to a single Wi-Fi Router): Border Router and Matter controller (Android phone).
  • Page 3 After the scan, the following will show (If the APP exits abnormally, reopen the APP and scan the  QR code again): Power on the Matter device (BDE-MP2652R7A). After ten seconds or so, it will start to work. Press  and hold the right button labeled BTN-2 on BDE-EVB07 for more than 1 second.
  • Page 4 Matter Over Thread Demo Quick Start Guide Based on BDE Thread Module Click “SAVE NETWORK” to enter the pairing mode:  The following message will pop up when the device is successfully paired:  info@bdecomm.com BDE Technology Inc. 4 / 7...
  • Page 5 Matter Over Thread Demo Quick Start Guide Based on BDE Thread Module You can click “LIGHT ON/OFF & LEVEL CLUSTER” to enter the operation view and control the  Matter device (BDE-MP2652R7A). info@bdecomm.com BDE Technology Inc. 5 / 7...
  • Page 6 Matter Over Thread Demo Quick Start Guide Based on BDE Thread Module On: Switch on the Red LED  Off: Switch off the Red LED  Toggle: Toggle the status of Red LED  Read: Read the current status of the Red LED ...
  • Page 7 Based on BDE Thread Module Important Notice and Disclaimer The information contained herein is believed to be reliable. BDE makes no warranties regarding the information contain herein. BDE assumes no responsibility or liability whatsoever for any of the information contained herein. BDE assumes no responsibility or liability whatsoever for the use of the information contained herein.
