Summary of Contents for ZIEHL-ABEGG IF-ECblue

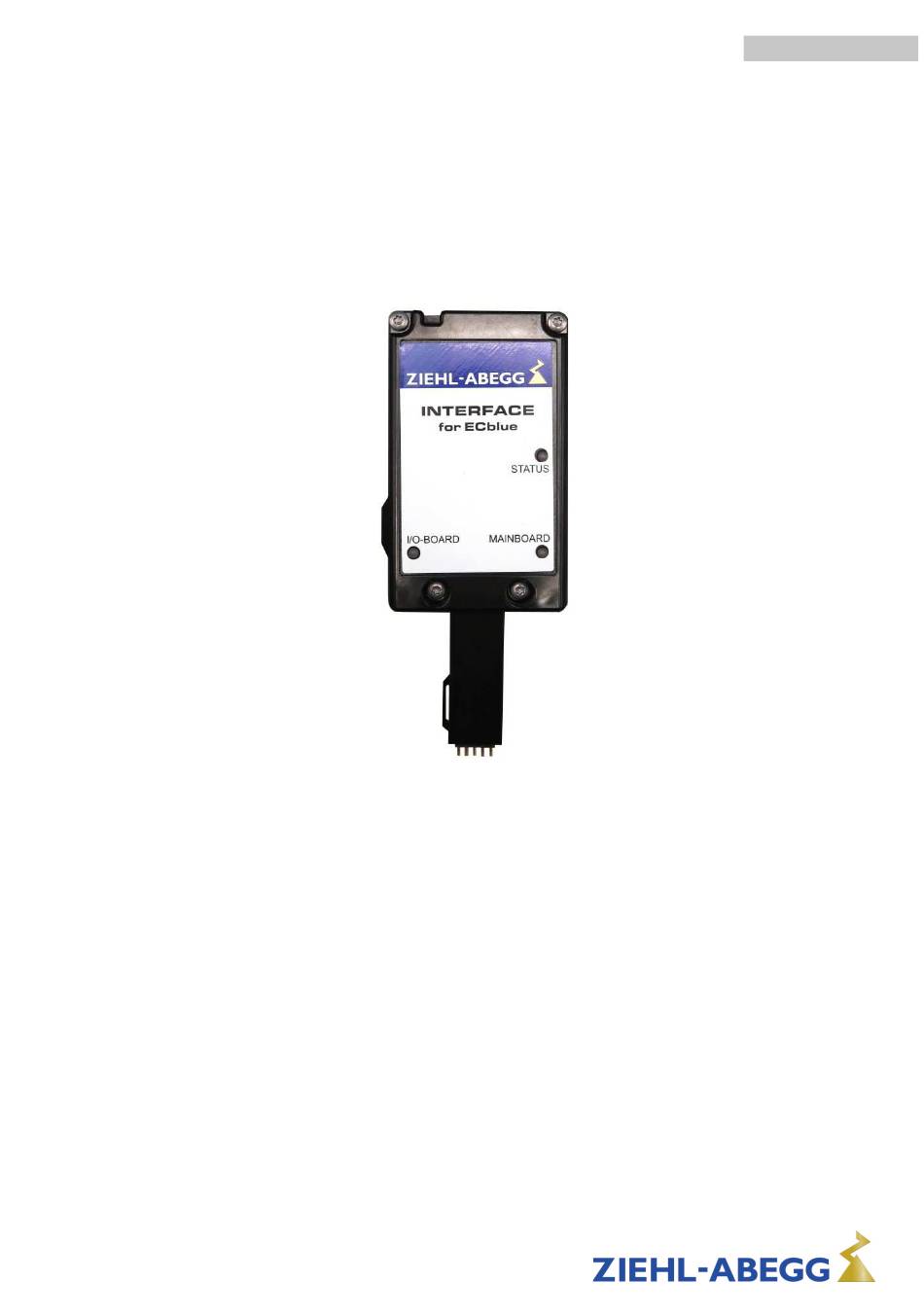

- Page 1 IF-ECblue Service adapter for ECblue fans Operating Instructions L-BAL-E327-GB 2023/19 Index 001 Part.-No.
-
Page 2: Table Of Contents
Operating Instructions IF-ECblue Content General notes .......... -
Page 3: General Notes
Operating Instructions IF-ECblue General notes 1 General notes 1.1 Meaning of the operating instructions Before installation and start-up, read this manual carefully to ensure correct use! We emphasize that these operating instructions apply to specific units only, and are in no way valid for the complete system! Use these operating instructions to work safely with and on the device. -
Page 4: Product Overview
Two versions are available, which differ in the scope of delivery. With article number 380111, the connection cables for updating the IO printed circuit board are included in addition to article number 380112. IF-ECblue Part.-No. 380111 and 380112 1 Service adapter IF-ECblue 2 USB cable with connector type A and mini-B connector 3 Operating Instructions Article no. -
Page 5: Interfaces And Leds
Operating Instructions IF-ECblue Product overview 3.3 Interfaces and LEDs 1 I/O supply ECblue 2 Communication and supply ECblue 3 Status LED - Green light - Interface blocked - Green flashing - Communication downstream - Blue flashing - Communication upstream - Red light/flashing - Error (overtemperature, overload, ...) -
Page 6: Disposal / Recycling
Operating Instructions IF-ECblue Inserting and connecting the service adapter 3.5 Disposal / Recycling Disposal must be carried out professionally and in an environmentally friendly way in accordance with the respective national legal stipulations. Separate the materials by type and in an environmentally-friendly way. -
Page 7: Ecblue Basic-Modbus And Ecblue Basic Of Motor Size
Operating Instructions IF-ECblue Inserting and connecting the service adapter 4.1 ECblue BASIC-MODBUS and ECblue BASIC of motor size B(090), D(116), G(152) Procedure for inserting the adapter • Remove the cover from the ECblue controller housing. • Remove the cover from the slot for the AM-STICK-WB. If an AM-STICK-WB is inserted, remove it. - Page 8 Operating Instructions IF-ECblue Inserting and connecting the service adapter Procedure for connecting the adapter 1. Plug the USB cable into the adapter and connect to the computer. 2. If necessary, secure the cable ties at the recess in the housing using cable ties.
-
Page 9: Ecblue Motor Size O(072)500 W, B
Operating Instructions IF-ECblue Inserting and connecting the service adapter 4.2 ECblue motor size O(072)500 W, B(090) Procedure for inserting the adapter • Remove the terminal compartment cover. • If an AM-STICK-WB is inserted, remove it. • Insert the adapter in the correct position. -
Page 10: Software Zaupdate
Operating Instructions IF-ECblue Software ZAupdate Re-install the terminal compartment cover using the specified torque, see ECblue assembly instructions. 5 Software ZAupdate The software required for the update is available for download on our website. https://www.ziehl-abegg.com/digitale-loesungen/software/zaupdate 6 Enclosure 6.1 Technical data... -
Page 11: Manufacturer Reference
Operating Instructions IF-ECblue Enclosure 6.2 Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau phone: +49 (0) 7940 16-0 info@ziehl-abegg.de...
