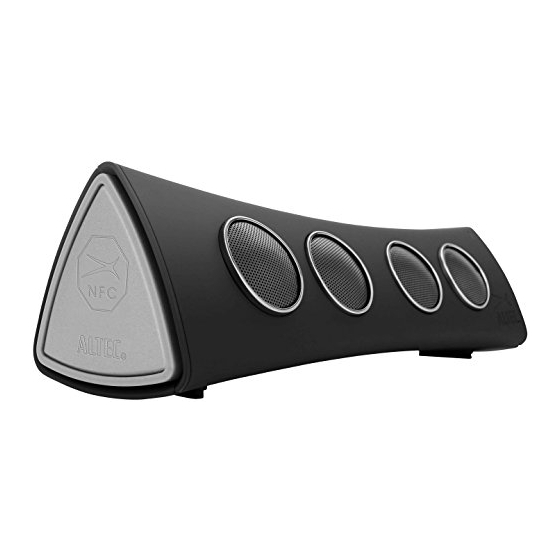

Model: iMW555
Instruction manual
EN
PRODUCT OVERVIEW
1
3
4
6
1.
Power on/off
2.
Bluetooth pairing
3.
Volume down
4.
Volume up
5.
Talk
6.
Aux in port
CONTENTS
1. IWM555.
2. USB cable
3. Line-in cable
4. User Manual
5. Warranty Card
SET UP
1. Plug the IMW555 into an outlet using the included wall charger.
2. The Charging LED light will turn off when it is fully charged. It would take around
2.5 hr for full charge.
Note:
• Please charge the battery at least 3 to 4 hours at the first time.
®
PAIRING BLUETOOTH
DEVICE
1. Pair your Bluetooth ® device to the speaker when you turn on the speaker for
the first time.
2. The speaker pairs with devices that use the Bluetooth ® Hands Free Profile
(HFP) and/or the Advanced Audio Distribution Profile (A2DP). HFP enables
hands-free communication and the A2DP dictates how audio is streamed from
one device to another over a Bluetooth® connection.
3. When you pair devices to the speaker, the devices operate accounting to their
protocols.
NFC FUNCTION WORK FLOW
1. Please upload NFC- BT Easy to your Android operated smart phone with NFC
function if your android platform is under 4.1 version
2. Please be reminded to turn on your smart phone's Bluetooth connection
3. Tap your smart phone to NFC sensor region at the left side of speaker. This
refers to " NFC" wording on left side
4. Then your smart phone will instantly pair with Bluetooth speaker for music
enjoyment
5. To disconnect it, please tab your connected smart phone at NFC sensor region
again
Note:
•
Please ensure your smart phone is equipped with NFC function.
•
To ensure your smart phone got NFC function, please find updated NFC
phone list at below website at http://www.nfcworld.com/nfc-phones-list/
PAIRING MODE AND PAIRING
1. In Press and hold
unit the voice "power is on" and press
pairing mode
2. Prepare your Bluetooth ® device (mobile phone or music player) to pair.
3. Select the searching mode on your Bluetooth ® device
4. Your Bluetooth ® device should find "ALTEC IMW555", select it and pair it
All manuals and user guides at all-guides.com
ALTEC
9
2
5
12
7
8
10
11
7.
DC in port
8.
Power output
9.
Status LED indicator
10.
Charging LED light
11.
NFC
12.
Mic
to enter the
5. Verify that you are connected to the speaker. The Bluetooth ® LED & the
speaker will change to a solid Blue when paring is complete
KEY FLOWS
Status:
1.
Status: "OFF" stage with rechargeable batteries not fully charged
a.
DC Plug in
"RED" charging LED turns red steadily.
2.
Status: "OFF" stage with rechargeable batteries FULLY charged
a.
DC Plug in
"RED" charging LED flash and then off
3.
Press & Hold the
3 second and power on the unit and then enter into the
Standby mode
4.
Status: "Standby mode"
a.
Line in plug in
Play music immediately
b.
Press & Hold
3second : "BLUE" LED flash alternatively, Enter to
Bluetooth pairing mode and connect with your Bluetooth ® devices
c.
Press & Hold
in 3second and then turn-off the unit.
5.
Status: "Bluetooth connected"
a.
"RED" LED Light on ( power-on state )
b.
Bluetooth signal disconnected
10second and then enter standby if no further signal connected
c.
Line in plug in
Music channel change to line in signal when Bluetooth
is pause or not connecting, and resume Bluetooth channel immediately
when line in plug out
d.
Press & Hold the
"BLUE" LED indicator flash
6.
Status: Music playing
a.
Press
and then the music volume are going down
7.
Status: Music playing
a.
Press
and
then
8.
Speaker Phone
When phone calling
a.
Answer a call - Press the
b.
Reject a call - Press Hold ( 3 seconds ) the
When on talking
a.
Press hold( 3 seconds ) the
b.
Press the
to hang-up the call
LINE-IN FUNCTION
1.
Plug in the line in cable into the right side of the speaker Aux in socket.
2.
Connect the other end of the line in cable to your devices headphone socket.
3.
Recommend to play the speaker unit at maximum sound level.
SPECIFICATIONS
Power input:
Total output:
®
Playtime (via Bluetooth
connect):
Recharging Time:
Dimension:
Audio input
Wireless
Built Battery
Power output
"BLUE" LED slowly flash,Searching
in 1second
enter Bluetooth pairing mode,
the
music
volume
are
to enter conference call
to cut the incoming call
to switch between speaker and phone
5V, 2A
8W, (4W/Channel)
Passive Radiator
Approximately 8~10 hours
2.5 hours
298X 85 X 87mm
3.5mm Line-in jack, Bluetooth 3.0(A2DP)
Bluetooth 3.0, NFC
3.7V, 2500mAh Li-Polymer battery
5V,500mA
going
up
