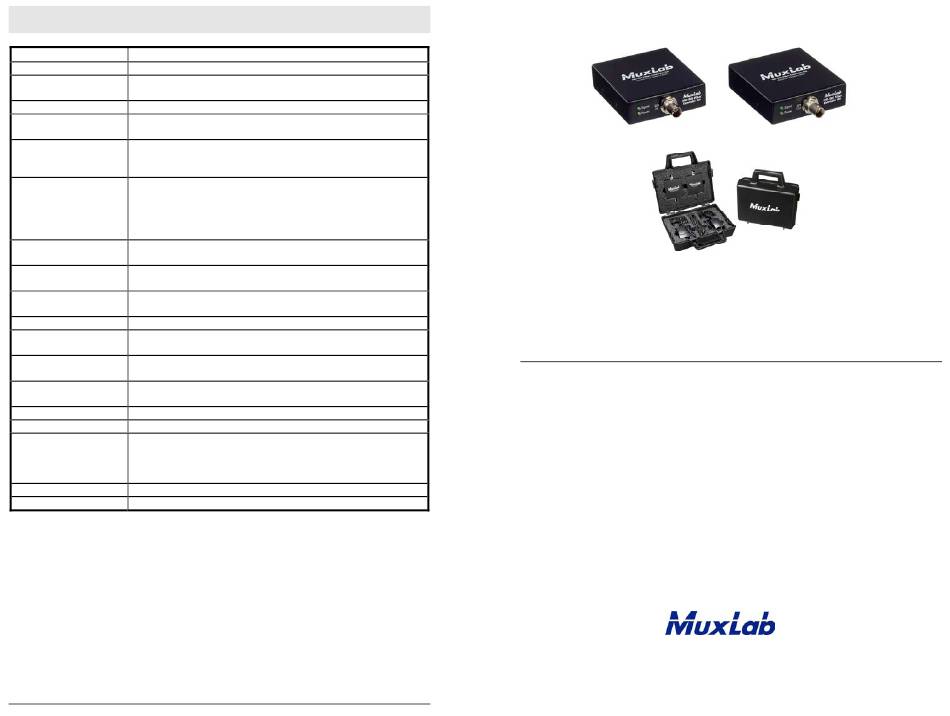

MUX 500710 Quick Installation Manual

Specifications

Environment SDI single link: SD, HD & 3G.
Monitors or any equipment supporting SDI single link.
Devices
Standard supported SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M
SMPTE 297-2006
Bit rates 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection).
Indicators Power
Signal present
Connectors One BNC 75 ohm female.
On each unit One LC Optical fiber connector.
One power connector, 2mm.
Maximum Distance Coax::
Singlemode fiber: 3G:35,000 ft (10 km),
Multimode fiber:
One multimode or singlemode fiber with LC connector.
Optic link
(Not included) Class I Laser
Camera Power Cable One cable to power the transmitter from a camera with a Hirose
connector HR10A-7P-4P(73) and 2 mm locking connector.
Power Supply Two 100-240V/12VDC 6W power supplies with interchangeable
(Included) blades for NA, Europe and UK.
Power Consumption Transmitter: 1.25 WattsReceiver: 1.25 Watts
Operating: 0° to 50°C
Temperature
Humidity: Up to 95% non-condensing
Module Enclosure Black, metal
Size: 3" x 3" x 1" (7.6 x 7.6 x 2.5 cm) excluding connectors.
Carrying Case One plastic carrying case, including two modules, two power supply
and a camera power cable. Approx: 10"x9"x4" (25x23x10cm)
Dimensions Shipping box: 10"x9"x4" (25x23x10cm)
3.5 lb. (1.5 kg)
Weight
Compliance Regulatory: FCC/CE*, RoHS
*Compliant when a ferrite is attached to the power cable near the
device
Warranty 2 years
Order Information 500710 HD-SDI Fiber Extender Kit
© MuxLab Inc.
330 ft (100 m) on RG59
HD: 70,000 ft (21 km)
SD: 100,000 ft (30km )
1000ft (300m) (typical not tested)
Storage: -20° to 85°C
Flammability: 94V0
94-000717-A SE-000717-A
HD-SDI Fiber Extender Kit
500710
Quick Installation Guide

Overview

The HD-SDI Fiber Extender Kit allows HD-SDI to be transmitted up to 1,000 ft (300m)
via a single multimode fiber and up to 6.6mi (10km) via a one singlemode fiber cable in
a point-to-point configuration at all specified bit rates.
The HD-SDI Fiber Extender Kit supports transmission of up to 2.97/3.0 Gbps digital
video within television facilities and between professional video equipment.

Applications

Video production, broadcasting, SDI camcorder, studio-to-studio, post-production,
live events, medical imaging displays, mobile video, HD/SD routing, HD CCTV,
medical imaging.
