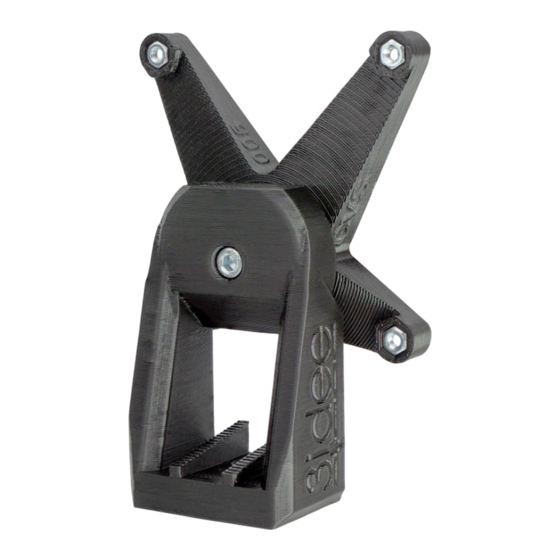

ass-mxaq VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following products from Asus
(asus.com):
MX279HS, MX27AQ, MX27UCS
The VESA adapter allows you to conveniently mount your ASUS brand monitor to a
monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and
nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws
and dowels (not included).
www.3idee.eu

Advertisement

loading

Related Manuals for 3idee ass-mxaq

Summary of Contents for 3idee ass-mxaq

  • Page 1 VESA adapter Assembly instructions The VESA adapter is compatible with the following products from Asus (asus.com): MX279HS, MX27AQ, MX27UCS The VESA adapter allows you to conveniently mount your ASUS brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.

  • Page 2: Important Safeguards

    Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.

  • Page 3: Waste Disposal

    For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5.

  • Page 4: Scope Of Delivery Accessories

    Assembly instructions Scope of Delivery Accessories 4x M4x14 Screw with cross 1x M6x20 Screw with cross recess (SP7) recess (SP7)

  • Page 5: Horizontal Mounting

    Assembly instructions Horizontal / Vertical Alignment Not all VESA adapters and monitors are suitable for vertical alignment. (upright) This is due to the geometry of the adapter / monitor, which is sometimes not otherwise feasible. We would like to point out that this information should not be disregarded under any circumstances, as the adapter will very quickly reach its durability limit if the mounting is not specified.

  • Page 6: Assembly Instruction

    / assembly. Figure 1 Step 2 Now slide the 3idee VESA adapter onto the foot from behind, as shown. (Figure 2) It is important that the hole in the VESA adapter is aligned with the hole in the monitor base. (follows in...
  • Page 7 Assembly instructions Step 3 Now screw the screw + washer + spring washer into the rear monitor base from below. (Figure 3) Please pay attention to the correct order of the washers. This is important for the permanent safety of the assembly. Figure 3 Step 4 For this step we recommend a 2nd person.
