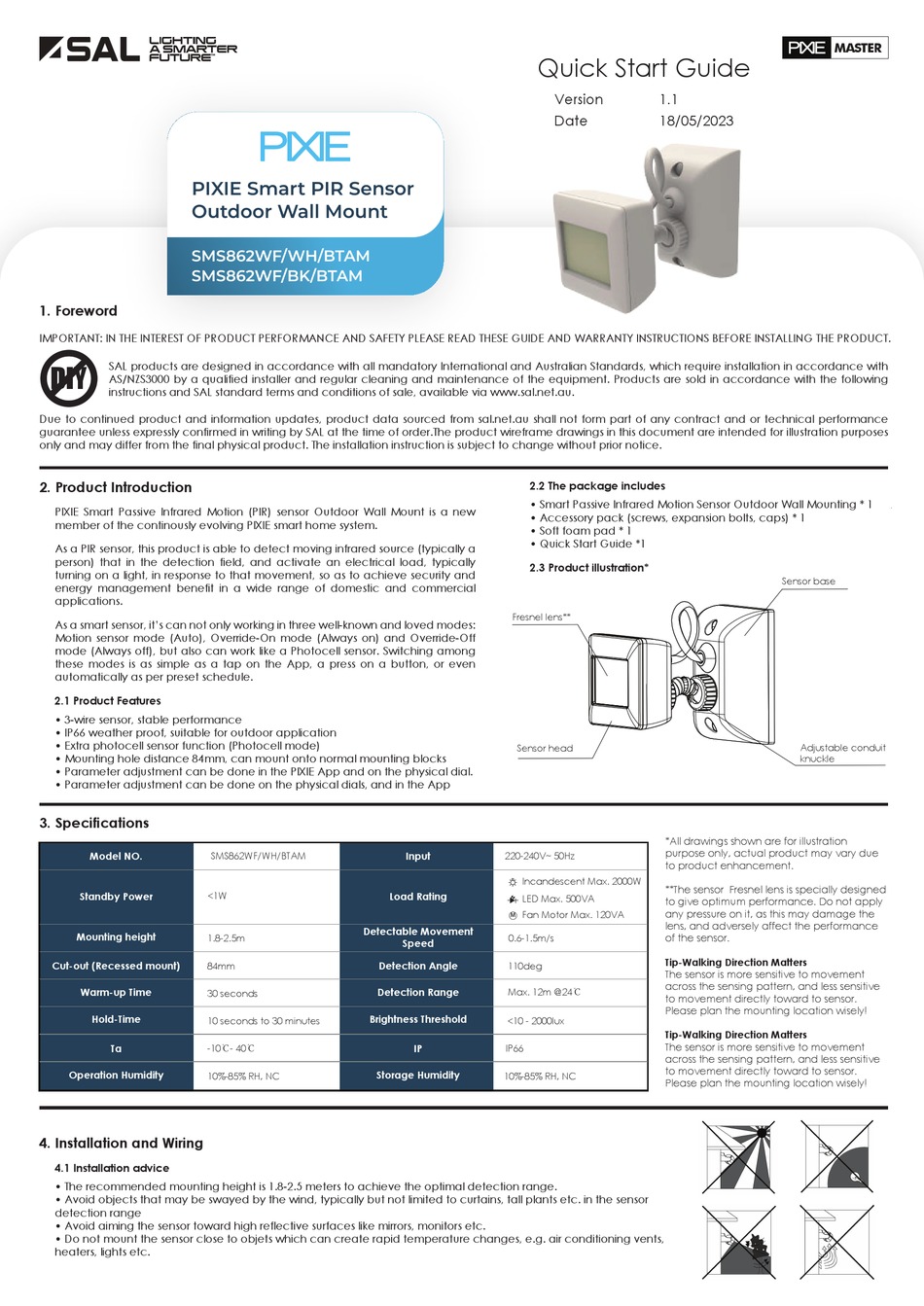

SAL PIXIE MASTER SMS862WF/WH/BTAM Quick Start Manual

PIXIE Smart PIR Sensor
Outdoor Wall Mount
SMS862WF/WH/BTAM
SMS862WF/BK/BTAM
1. Foreword
IMPORTANT: IN THE INTEREST OF PRODUCT PERFORMANCE AND SAFETY PLEASE READ THESE GUIDE AND WARRANTY INSTRUCTIONS BEFORE INSTALLING THE PRODUCT.
DIY
SAL products are designed in accordance with all mandatory International and Australian Standards, which require installation in accordance with
AS/NZS3000 by a qualified installer and regular cleaning and maintenance of the equipment. Products are sold in accordance with the following
instructions and SAL standard terms and conditions of sale, available via www.sal.net.au.
Due to continued product and information updates, product data sourced from sal.net.au shall not form part of any contract and or technical performance
guarantee unless expressly confirmed in writing by SAL at the time of order.The product wireframe drawings in this document are intended for illustration purposes
only and may differ from the final physical product. The installation instruction is subject to change without prior notice.
2. Product Introduction
PIXIE Smart Passive Infrared Motion (PIR) sensor Outdoor Wall Mount is a new
member of the continously evolving PIXIE smart home system.
As a PIR sensor, this product is able to detect moving infrared source (typically a
person) that in the detection field, and activate an electrical load, typically
turning on a light, in response to that movement, so as to achieve security and
energy management benefit in a wide range of domestic and commercial
applications.
As a smart sensor, it's can not only working in three well-known and loved modes:
Motion sensor mode (Auto), Override-On mode (Always on) and Override-Off
mode (Always off), but also can work like a Photocell sensor. Switching among
these modes is as simple as a tap on the App, a press on a button, or even
automatically as per preset schedule.
2.1 Product Features
• 3-wire sensor, stable performance
• IP66 weather proof, suitable for outdoor application
• Extra photocell sensor function (Photocell mode)
• Mounting hole distance 84mm, can mount onto normal mounting blocks
• Parameter adjustment can be done in the PIXIE App and on the physical dial.
• Parameter adjustment can be done on the physical dials, and in the App
3. Specifications
Model NO.
SMS862WF/WH/BTAM
Standby Power <1W
Mounting height
1.8-2.5m
Cut-out (Recessed mount)
84mm
Warm-up Time
30 seconds
Hold-Time
10 seconds to 30 minutes
Ta
-10℃- 40℃
Operation Humidity
10%-85% RH, NC
4. Installation and Wiring
4.1 Installation advice
• The recommended mounting height is 1.8-2.5 meters to achieve the optimal detection range.
• Avoid objects that may be swayed by the wind, typically but not limited to curtains, tall plants etc. in the sensor
detection range
• Avoid aiming the sensor toward high reflective surfaces like mirrors, monitors etc.
• Do not mount the sensor close to objets which can create rapid temperature changes, e.g. air conditioning vents,
heaters, lights etc.
Quick Start Guide
2.2 The package includes
• Smart Passive Infrared Motion Sensor Outdoor Wall Mounting * 1
• Accessory pack (screws, expansion bolts, caps) * 1
• Soft foam pad * 1
• Quick Start Guide *1
2.3 Product illustration*
Fresnel lens**
Sensor head
Input
220-240V~ 50Hz
Incandescent Max. 2000W
Load Rating
LED Max. 500VA
Fan Motor Max. 120VA
M
Detectable Movement
0.6-1.5m/s
Speed
Detection Angle
110deg
Detection Range Max. 12m @24℃
Brightness Threshold
<10 - 2000lux
IP
IP66
Storage Humidity
10%-85% RH, NC
Version 1.1
Date 18/05/2023
*All drawings shown are for illustration
purpose only, actual product may vary due
to product enhancement.
**The sensor Fresnel lens is specially designed
to give optimum performance. Do not apply
any pressure on it, as this may damage the
lens, and adversely affect the performance
of the sensor.
Tip-Walking Direction Matters
The sensor is more sensitive to movement
across the sensing pattern, and less sensitive
to movement directly toward to sensor.
Please plan the mounting location wisely!
Tip-Walking Direction Matters
The sensor is more sensitive to movement
across the sensing pattern, and less sensitive
to movement directly toward to sensor.
Please plan the mounting location wisely!
MASTER
Sensor base
Adjustable conduit
knuckle
