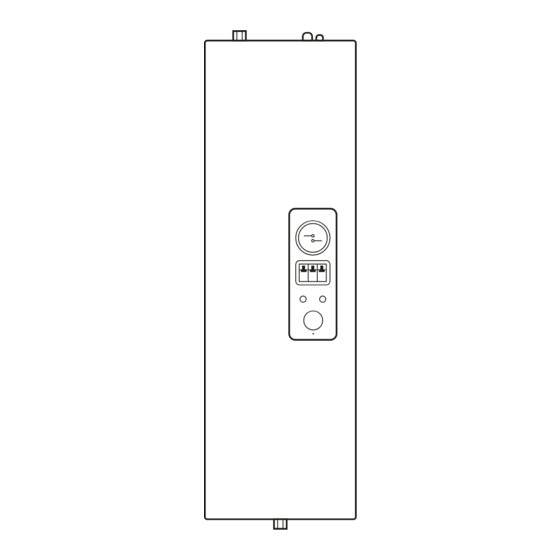

- Page 1 Instructions Live well... Electric Flow Boiler with Pump Live well...
- Page 2 Contents General information Specifications Configuration Safety How the boiler works Installing the boiler Wiring diagrams Commissioning Troubleshooting Warranty information Maintenance General information These instructions contain information The boiler must be isolated from including 12kW can be connected to about the design and operation the electrical supply before the either a single-phase (240V) or three- principles of ThermoSphere Electric...
- Page 3 Specifications Output Output per No. of Current Working Max working Weight Code Voltage (Kw) element elements pressure (BAR) temp (°C) (Kg) TSEFB-P4.5 230/400 TSEFB-P6 230/400 TSEFB-P9 230/400 TSEFB-P12 12.0 230/400 TSEFB-P15 15.0 TSEFB-P18 18.0 TSEFB-P24 24.0 9 + 15 Dimensions TSEFB-P4.5...
- Page 4 Safety This product should only be installed by a qualified and competent professional. It is the installer’s sole responsibility to ensure that the boiler and heating/hot water system is installed in a safe way, in compliance with all relevant local standards and regulations. This applies to both the electrical and plumbing aspects of the installation.
- Page 5 Installing the boiler Fixing to the wall the pipe connection at the bottom located near the pump, must be of the boiler, ahead of the pump. connected to a length of high The boiler must be located in a area temperature hose, through a that is away from possible tampering, 3.
- Page 6 Wiring diagrams Single-phase (230V) without external controls If no external controls are to be connected the red jumper wire must be left in place to provide a constant call for heat. In this case the boiler and pump will always be on unless N C L the set temperature on the boiler thermostat dial is satisfied.
- Page 7 Commissioning the boiler All installation, commissioning and maintenance should only be done by a competent, qualified professional. 1. Turn off all 3 heating element 6. Check the whole plumbing 11. Switch the first element switch switches on the front of the system for leaks and repair as on and check the operation of the boiler.
- Page 8 Issue Possible cause Things to try Boiler is not heating Temperature settings It sounds obvious, but you should check that the thermostatic dial is turned up to request a temperature that is higher than the measured temperature on the gauge. The boiler will only heat up if the water inside it is cooler than the set temperature on the thermostatic dial.
- Page 9 Issue Possible cause Things to try Boiler is tripping Overloaded circuit The first thing to check is the total load on the circuit that the RCBO or MCB boiler is connected to. The boiler must be fed by a dedicated supply circuit with suitably sized cable and circuit breaker.
- Page 10 Warranty information Thermogroup Ltd (T/A ThermoSphere) owner‘s responsibility. lies on the wider plumbing system, will repair or, if necessary, at its not the within the boiler and not the The warranty applies to the boiler only sole discretion, replace a faulty boiler or boiler components;...
- Page 11 Maintaining the boiler All maintenance should only be done by a competent, qualified professional. The boiler and complete heating and there are no loose cables. parts and repairs. and hot water system should be Any parts of the heating or hot water If there are any signs of faults or checked annually for signs of wear system that are not manufactured...
- Page 12 ThermoSphere Electric Flow Boiler Instructions Issue 2 June 2023 ThermoSphere Bridge House Pattenden Lane Marden Kent TN12 9QJ UNITED KINGDOM www.thermosphere.com hello@thermosphere.com +44 (0) 800 019 5899 Find us on LinkedIn Search “ThermoSphere” Check out our Youtube channel Search “ThermoSphere underfloor heating” Find us on Instagram Search “ThermoSphere”...
