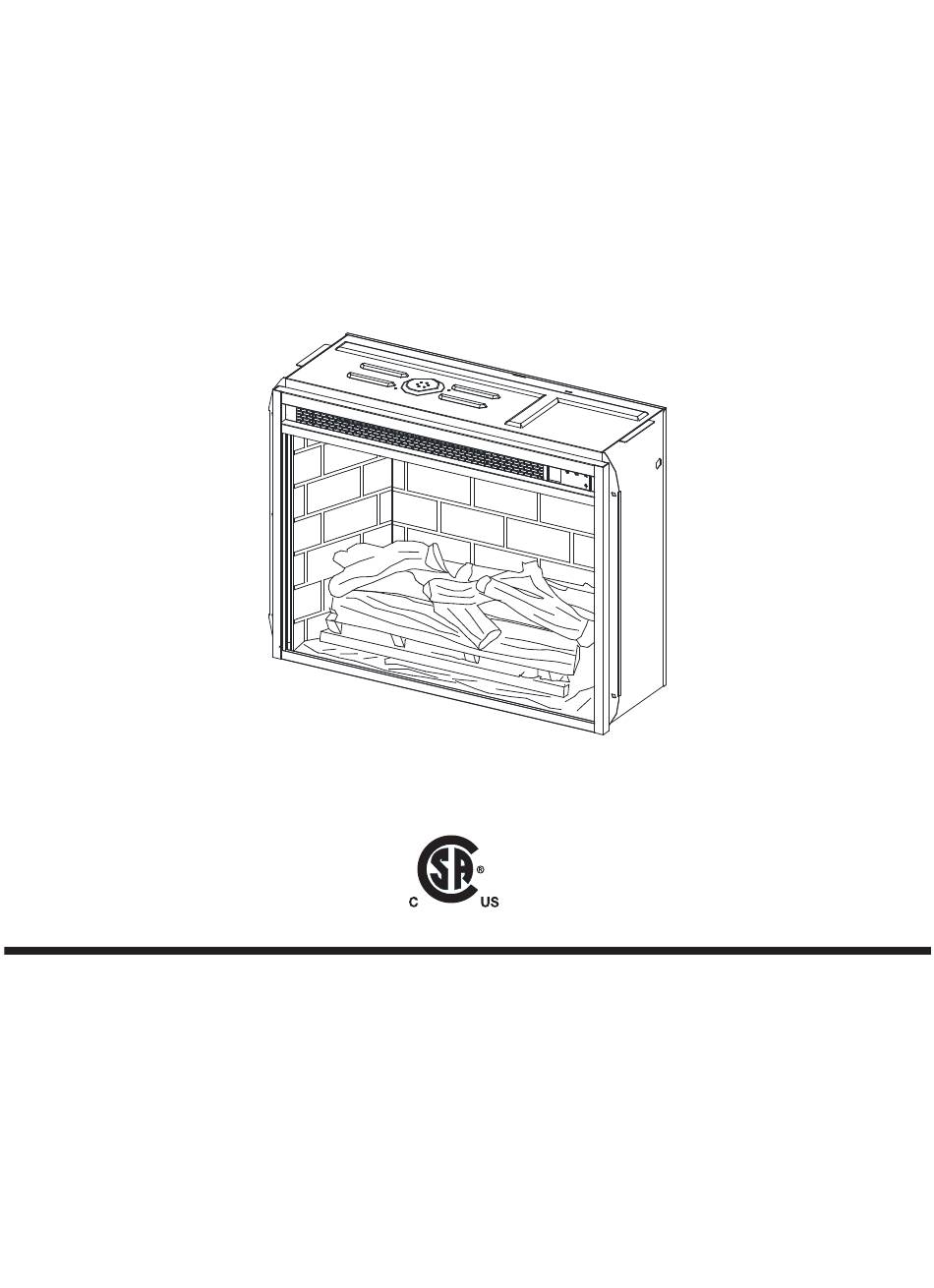

HOMEOWNERS OPERATING MANUAL
The actual appearance should be subject to the purchase model
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR
INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN ELECTRIC
SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF
LIFE.
THIS INSTRUCTION BOOKLET CONTAINS
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

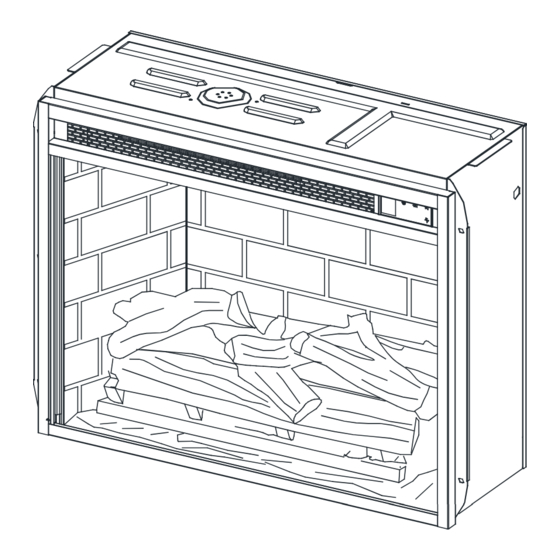

ELECTRIC FIREPLACE
MODELS: 2322-L-12
261046
2622-L-12
3022-L-12
3622-L-12
4222-L-12
IMPORTANT
01
SAFETY INFORMATION.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altra 2322-L-12
Summary of Contents for Altra 2322-L-12
- Page 1 ELECTRIC FIREPLACE HOMEOWNERS OPERATING MANUAL The actual appearance should be subject to the purchase model MODELS: 2322-L-12 2622-L-12 3022-L-12 3622-L-12 4222-L-12 261046 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If pro- vided, use handles when moving this heater. -
Page 3: Package Contents
PACKAGE CONTENTS 2 L-Brackets Fireplace Remote Control 6 screws Manual INSTALLATION INSTRUCTION Position your completed mantel close to its final location. Make sure you can access the back of the mantel as your electric fireplace appliance will be installed from back. Unpack the electric fireplace appliance carefully. -
Page 4: Grounding Instructions
If the clearance distance of side panel of insert and mantel less than 3.4inch, fix the insert with furniture by L-Brackets on the back panel. 1. Align the large hole on the long side of the L-Brackets with the half-screwed screws on the fireplace. -
Page 5: Cleaning Trim
COLD CLIMATE INSTALLATION RECOMMENDATION: When installing this unit against a Non-insulated exterior wall or chase, it is mandatory that outer walls be insulated to conform to applicable insulation codes. ELECTRICAL CONNECTION The unit comes standard with 6 feet (1.8M) three wire cord, exiting from the rear of the fire- place. - Page 6 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
- Page 7 OPERATING INSTRUCTION On the top-right of the fireplace is the touchscreen control panel. This panel contains the buttons to properly operate the electric fireplace. The functions of buttons on the remote control are the same as the control panel. The remote control has an effective range of up to 19 ft.. 1.
-
Page 8: Infrared Sensor
Temperature unit convert function: When the heater is on, press and hold the Power Button for 5 seconds, current temperature unit display will flash 3 timers and convert to another temperature unit (Note: This can't be set with the remote control). Lock &... -
Page 9: Battery Replacement
BATTERY REPLACEMENT NOTE: Do not mix old and new batteries. Do not mix alkaine, standard (carbon zinc), or rechargable (nicad, nimh, etc.) batteries. Do not ingest batteries. CAUTION: Always purchase the correct size and grade of battery most suitable for the intended use. Replace all batteries of a set at the same time. -
Page 10: Troubleshooting
TROUBLESHOOTING Fault code Fault Cause Solution The heater overheating Call after-sales service. The heater not working. If the vents are dirty or clogged. Unplug the power, clean the dust and debris of the vent area. Wait for 5 minutes, plug in and turn on the heater. If the heater still don't work, please call after-sales service. -
Page 11: Year Limited Warranty
1 YEAR LIMITED WARRANTY Electrical Fireplace Basic Warranty Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product, Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
