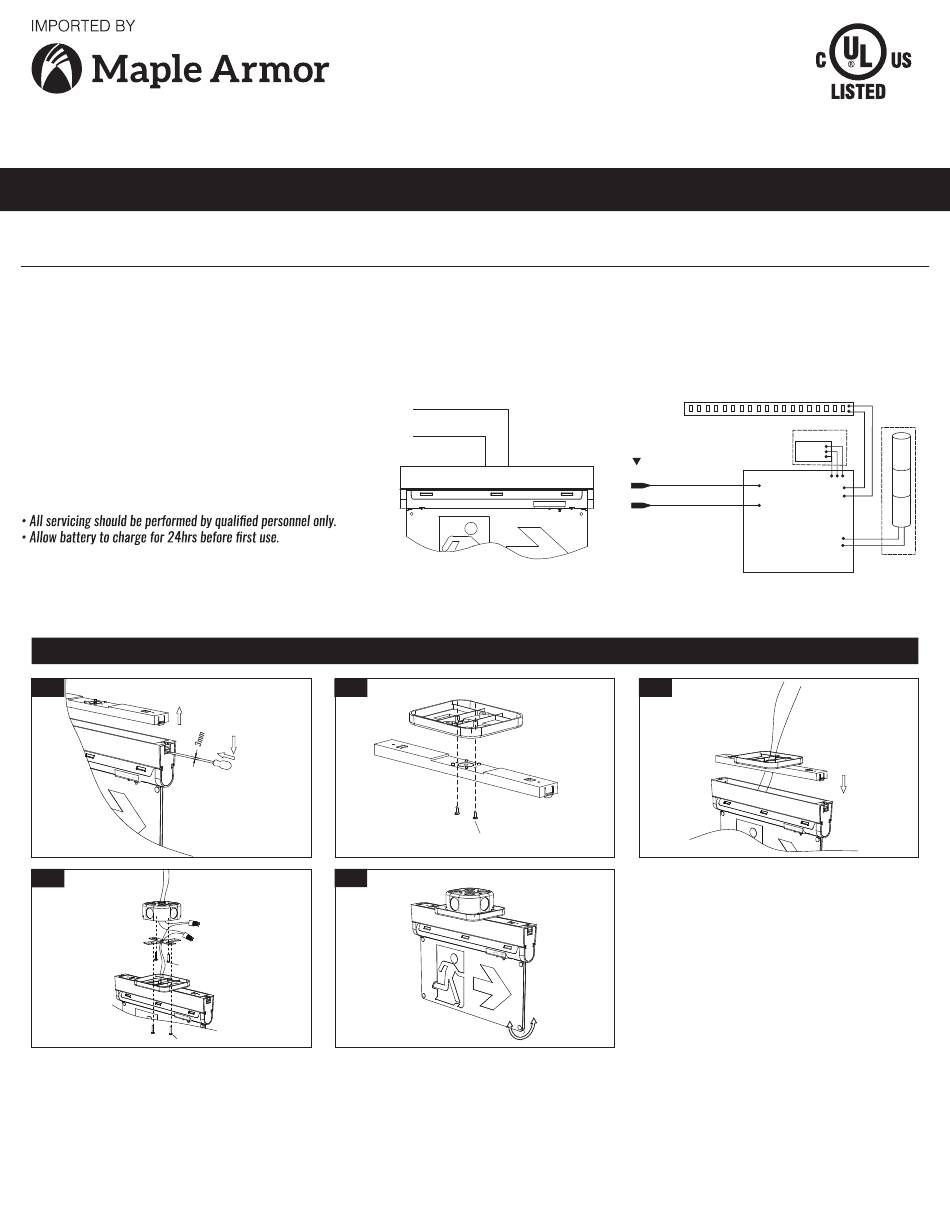

INSTALLATION MANUAL FOR RO-Z2408U2
LED RUNNING MAN EDGE LIT EXIT SIGN
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
• Review the diagrams thoroughly before beginning.
• All electrical connections must be in accordance with local codes,
ordinances and the National Electric Code.
• Disconnect power at fuse or circuit breaker before installing
or servicing.
• Do not use outdoors.
• Do not mount in hazardous locations or near gas or electric heaters.
• Do not let power cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where
it will not be subject to tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by
the manufacturer.
• Do not use this equipment other than intended use.
CIRCUITRY
• Emergency duration: ≥ 2 hours
• Recharge time: 24 hours
• Output Wattage: 2W
Fig 1
Insert the flat screw driver
into the buckle groove and
remove the top cover
The flat screw driver should be
no more than 3mm in size
Fig 4
M4x25mm screw
M4x20mm screw
1. Remove the top cover using flat driving(Fig1)
2. Connected the top cover with the canopy using the screws(Supplied) .(Fig2)
3. Feed AC supply wire through top cover and canopy center hole,snap top cover and the fixture
together.(Fig3)
4. Assemble canopy onto Junction box with screws (supplied) and make proper wire connections.
Black Wire (L); White Wire (N);(Fig4)
• Light Source: Ultra bright LED
• Color temperature: 6500K
• Ni-cad Battery: 3.6V 900mAh
Fig 2
Fig 5
WIRING DIAGRAM
AC WIRING
Black Wire (L)
AC120V -347V
Whit e Wire (N)
AC WIRING
TEST
CEILING MOUNT
ST 2.9x9.5mm screws
5. Use screws (supplied) to tighten canopy to mounting plate (spider plate/cross bar)(Fig5)
6. The unit can be installed on any surface, you may rotate the Acrylic panel in any angle from
0 degrees to 180 degrees.(Fig5)
AC WIRING
Working Voltage:
AC120V - 347V 50Hz / 60Hz
LED Stri p
Test
re d led
Input AC cabl e
Blac k Wire (L)
White Wir e (N)
MAIN PCBA
Transformer
Fig 3
Black Wire (L)
White Wire (N)
--------------------
Green Wire (E)
Battery
For battery
Snap together
