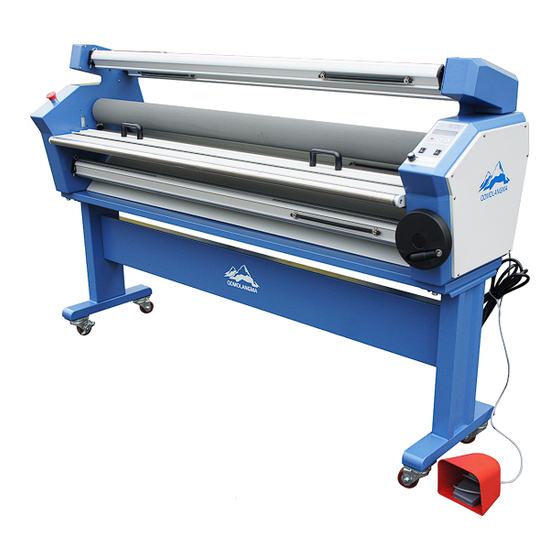

Brand full-auto wide format cold laminator, with heat assisted
Hide thumbs
Table of Contents

Advertisement

Quick Links

DIGITAL PRINT FINISHING
We are looking for distributor, please ask us for better offer!
Samples are available.
QOMOLANGMA
COLD LAMINATOR, WITH HEAT ASSISTED
USER'S MANUAL
FMJ-1400-WA-PLUS
FMJ-1600-WA-PLUS
Learn More >>
BRAND FULL-AUTO WIDE FORMAT
®
Please read this manual carefully before operat ion
Add: Room 17-20, F-3M, Building 1, Community 3, Hanwei International Plaza,
No.186, Western Road of South 4th Ring Road, Fengtai District, Beijing, China. 100070
+86 138 012 487 14
Cell Phone:
Business Cooperation - info@Sign-in-China.com
Sign-in-China.com
Online Wholesale for AD & Signage Products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMJ-1400-WA-PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qomolangma FMJ-1400-WA-PLUS

Summary of Contents for Qomolangma FMJ-1400-WA-PLUS

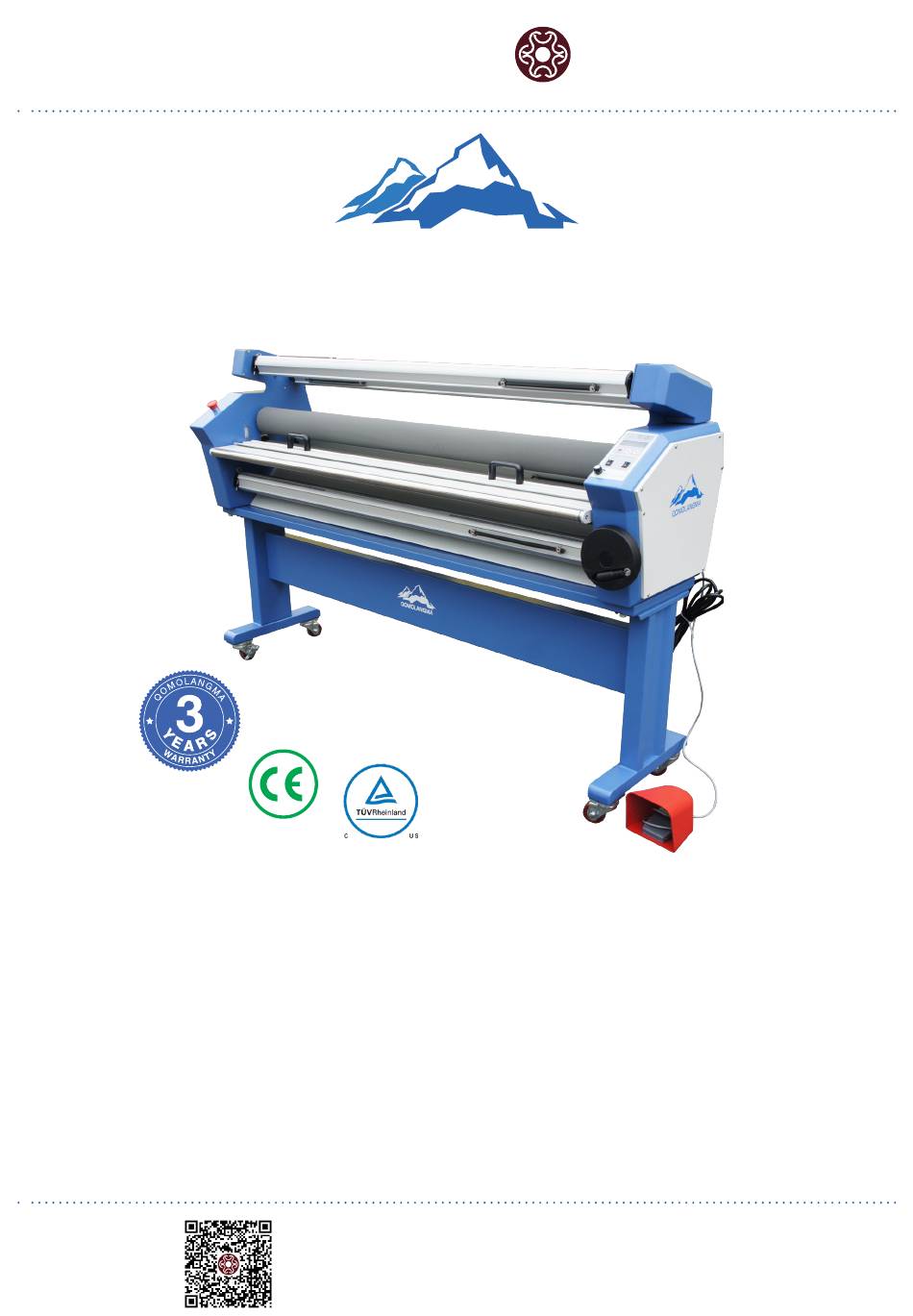

  • Page 1 BRAND FULL-AUTO WIDE FORMAT ® COLD LAMINATOR, WITH HEAT ASSISTED USER’S MANUAL FMJ-1400-WA-PLUS FMJ-1600-WA-PLUS Please read this manual carefully before operat ion Add: Room 17-20, F-3M, Building 1, Community 3, Hanwei International Plaza, No.186, Western Road of South 4th Ring Road, Fengtai District, Beijing, China. 100070 Learn More >>...

  • Page 2: Table Of Contents

    Sign-in-China.com Online Wholesale for AD & Signage Products CONTENT Features ..........................3 I.

  • Page 3: Features

    Features PRINTERS, AND SIGN-MAKERS! Thank you very much for choosing our Qomolangma brand series laminator, Please read the manual carefully, including the installat ion, operat ion and maintenance to ensure the best output and the lifet ime of the machine.

  • Page 4: Technical Parameter

    Specification / Item Code FMJ-1400-WA-PLUS FMJ-1600-WA-PLUS FMJ-1600-WA-PLUS-H Picture Name Qomolangma Full-auto Wide Format Cold Laminator, with Heat Assisted Lift Up System By hand Funct ions Cold laminat ing, mount ing, with heat assited Hot / cold laminat ing, mount ing Max.

  • Page 5: Installation

    Sign-in-China.com Online Wholesale for AD & Signage Products II. Installation 2.1 installation precautions 1. Before unpacking, carefully check if there is damage for the packing and machine during transportat ion. 2. After unpacking, check if the service parts are correct as the packing list. 3.

  • Page 6: Machine Assembly

    Sign-in-China.com Online Wholesale for AD & Signage Products 2.3 Machine assembly 1) Take out the machine from crate, use 4 of M10 screw to connect the machine and shaft followed the picture, be attent ion the shaft direct ion. The four corners are fixed with M10 screws. Not ice: When moving, touch the bottom plate, don’t move the hand wheel, frict ion wheel and other week posit ion.
  • Page 7 Sign-in-China.com Online Wholesale for AD & Signage Products B) Place the front table gently down, and the gap behind it corresponds to the screw behind. C) Push an embolus of a bolt and lock the bolt of the front table. 3) Shaft assembly (Refer to 4.3).

  • Page 8: Safety Instructions

    Sign-in-China.com Online Wholesale for AD & Signage Products 6) Turn on the machine, roller is rotat ing. Make trial laminat ing if everything is well and check the laminat ion result. III. Safety Instructions Read the safety instruct ions and familiarize yourself with the main structure, performance and operat ion measures before start ing the machine.

  • Page 9: Safety Parts

    Sign-in-China.com Online Wholesale for AD & Signage Products B. Ant i-chain Prick: Keep your hand away from chain and gear. Your long hair and clothing would be caught in the rollers. C. Ant i-hand trapped: this safety not ice means that your fingers and hands could be trapped and crushed in the rollers, clothing and long hair could be caught in the rollers and pull you into them.

  • Page 10: Caution

    Sign-in-China.com Online Wholesale for AD & Signage Products Photocell Safety Switch The machine has an opt ical safety device at the input side of the nip at the main rollers on the right cabinet. When the signal is interrupted (e.g. by foreign object or hand), the device will be act ivated and the motor will stop so as to prevent hazards caused by interrupt ion of foreign objects.

  • Page 11: Parts Identification

    Sign-in-China.com Online Wholesale for AD & Signage Products IV. Parts Identification 4.1 Front Views 1. Foot wheel 2. Stand 3. Print Rolls 4. Left cabinet 5. Emergency Stop Switch 6. In-feed table 7. Panel for covering the picture 8. Top roller 9.

  • Page 12: Annotation

    Sign-in-China.com Online Wholesale for AD & Signage Products 4.3 Annotation  Safety foot pedal switch Foot pedal is another way to control the start and stop roller rotat ing.Step on the foot pedal, press the direct ion button to adjust the speed, then the roller runs, roller stops when loose.
  • Page 13 Sign-in-China.com Online Wholesale for AD & Signage Products Assemble the front turntable (Refer to 1.3 section)  Pressure board Lift and take off the pressure board. Insert screw in the holes of pressure board to put on back.  Top and Bottom Roller Top and bottom rollers are the key component of the laminator and they directly affects the quality of laminat ing and t itled image.
  • Page 14 Sign-in-China.com Online Wholesale for AD & Signage Products  Unwind/rewind shafts Four shafts for this machine, they are film liner rewinder (A), film unwind shaft (B), media rewinder (C), media unwind shaft (D), they are changeable to each other. It is motorized shaft for film liner rewinder and media rewinder, non-power for film unwind shaft and media unwind shaft.
  • Page 15 Sign-in-China.com Online Wholesale for AD & Signage Products  Temperature-measuring for Warm series only The contact temperature detect ion only for Warm series. The contact material is brass. It is sensit ive, small and durable.  Pressure limit This device limits the space of pressure plate. In order to protect speed controller, the hand crank is not able to use when reach the limit space which means max roller pressure.
  • Page 16 Sign-in-China.com Online Wholesale for AD & Signage Products  Drive system Film unwind drive liner take up through the sprocket wheel. The running speed is different because the number of teeth of the two sprockets is different, you can adjust the two- brake tension knob to change the speed rat io.

  • Page 17: Usage Of Machine

    Sign-in-China.com Online Wholesale for AD & Signage Products Press to show D-1, D-2, D-3, D-4 in order. Press up and down button to regulate the value of specificat ion, If the buttons are not pressed in 1 minute, the specificat ion sett ing state will be automat ically ended.
  • Page 18 Sign-in-China.com Online Wholesale for AD & Signage Products  Emergency button In case of emergency, press the red button to shut off the electric, roller stopped. Turn the button clockwise, the button will rise up automat ically. Press “on” from control panel, the roller can start to rotate.
  • Page 19 Sign-in-China.com Online Wholesale for AD & Signage Products change a new metal frict ion pad.  Friction system of media rewind: it is combined by bracket, metal frict ion pad, fiber frict ion pad, spring, spring bracket and black handle. Adjust pressure on spring by rotat ing the handle.
  • Page 20 Sign-in-China.com Online Wholesale for AD & Signage Products 1.left pressure bracket 2. left cabinet 3. Spring 4. top pressure bracket 5. pressure bolt 6. Screw Top and bottom rollers are the key component of the laminator and they directly affect the quality of laminat ing and t itled image.
  • Page 21 Sign-in-China.com Online Wholesale for AD & Signage Products adjustment for bolts on both side. NOTES: Measure the length for two springs and keep the same height. 3) When the image is t ilted on right side, the left side pressure must be smaller than right side.

  • Page 22: Laminating Process

    Sign-in-China.com Online Wholesale for AD & Signage Products VI. Laminating Process 6.1 Lamination Principles 6.2 Operation Laminat ion is an experienced and more technical work. Starters should be under guidance of an experienced technician. Following is laminat ing instruct ion.  Pre-heating Rise the top roller and take off the pressure board.

  • Page 23: Notes For Operation

    Sign-in-China.com Online Wholesale for AD & Signage Products put the media on the shaft and adjust the frict ion. Insert the media in space between rollers. Be noted that the media should be even on the working table, media edge align with film edge to avoid walking deviat ion.

  • Page 24: Problems And Solutions

    Sign-in-China.com Online Wholesale for AD & Signage Products 8. For the issue in above picture indicates the pressure is too small, please increase pressure to improve 9. If the image is off-tracking on the left right of the machine, it indicates the pressure on the left side is higher than that on the right side, please decrease the pressure (see chapter 4).

  • Page 25: Maintenance

    Sign-in-China.com Online Wholesale for AD & Signage Products The motor can not be started. The speed controller fails. Replace a speed controller. The motor runs fast and its speed can Potent iometer fails. Replace a potent iometer. not be controlled. The rotat ion of the rollers stops from The chains are too loose.
  • Page 26 Sign-in-China.com Online Wholesale for AD & Signage Products 3. To extend the lifet ime of the rollers, please ensure the rollers are clean. please remove the adhesive residue by a piece of flannelette with alcohol, detergent or eraser. 4. Please remove the adhesive residue by a piece of flannelette with alcohol, detergent or eraser.

  • Page 27: Cleaning

    Sign-in-China.com Online Wholesale for AD & Signage Products 8.2 Cleaning To extend the lifet ime of the machines, please ensure the machine are clean. 2. Make sure environment clean and keep away from obstacles. 8.3 Checking In order to ensure your safety, please check the safety of the machine regularly. If you find failures in the check, please refer to the sect ion of Trouble shoot ing and solut ion.

  • Page 28: Warranty Card

    Sign-in-China.com DIGITAL PRINT FINISHING We are looking for distributor, please ask us for better offer! Online Wholesale for AD & Signage Products Samples are available. WARRANTY CARD MODEL LOT # BUYER DATE SELLER Notes i. The warranty card should be filled by seller and kept by buyer. Alterat ions are prohibited. ii.
