Operating Instructions

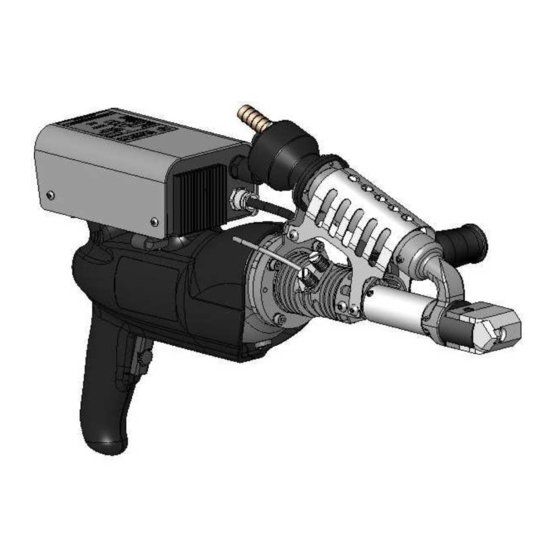

MEK 18B & MAK 18B
Type:
MEK-18 / MAK-18
These operating instructions contain important information to
be observed for hand extruder operation and maintenance.
It is therefore imperative that they be read and their contents fully
understood by the operators before the hand extruder is placed in
service.
MUNSCH Kunststoff-Schweißtechnik GmbH
Serial No.:
Article No.: ______________
Issue 08.2008/Rev. 00
______________
Page 1/20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Barnes MEK-18
- Page 1 Operating Instructions MEK 18B & MAK 18B Type: MEK-18 / MAK-18 Serial No.: ______________ Article No.: ______________ These operating instructions contain important information to be observed for hand extruder operation and maintenance. It is therefore imperative that they be read and their contents fully understood by the operators before the hand extruder is placed in service.
-
Page 2: Table Of Contents
Hand Extruder MEK-18 / MAK-18 Scope of delivery: Please check that the delivery is complete. The delivery comprises: 1) Container engineering design: fillet weld a = 7mm, 40mm long 1 hand extruder 1) Landfill construction design: sheeting/film weld 25mm, 40mm... -
Page 3: General
Hand Extruder MEK-18 / MAK-18 Non-observance of the safety instructions may in 1 General particular involve the following risks: • failure of important hand extruder functions, These operating instructions must always • hazards to persons due to electrical and me-... -
Page 4: Identification Of Information In The Operating Instructions
Furthermore, the Operator [mm²] has to make sure that the contents of the operating up to 19 instructions is fully understood by the operating per- 20-50 sonnel. 1) for 230 V AC MEK-18 / MAK-18 Issue 08.2008/Rev. 00 Page 5/20... - Page 5 Hand Extruder MEK-18 / MAK-18 • Extension cables must be certified for the specific • service conditions (e.g. outdoor service) and The hand extruder must not be used in identified accordingly. explosion hazard areas or flammable atmos- pheres. Always handle the connecting cable with care.
-
Page 6: Safety Instructions For Maintenance , Inspection And Mounting
- the unit does not work properly or there are unusual changes in its operating behaviour. • Never allow the hand extruder to come into contact with water: Hazard to persons and equipment, short-circuit risk. MEK-18 / MAK-18 Issue 08.2008/Rev. 00 Page 7/20... -
Page 7: Transport And Storage
Hand Extruder MEK-18 / MAK-18 3 Transport and Storage 4 Product Description 3.1 Transport 4.1 Application range • The application range of the hand extruder is defined Before transport and storage, make by the data on the type tag and the service limits sure that the hand extruder has cooled down indicated in these operating instructions. -
Page 8: Startup And Shutoff
CAUTION The supply air must be clean, dry and must be observed. free from oil and water. Any working practices posing a safety risk are pro- Never connect an external air source to a hibited. MAK hand extruder. MEK-18 / MAK-18 Issue 08.2008/Rev. 00 Page 9/20... -
Page 9: Starting The Hand Extruder
Hand Extruder MEK-18 / MAK-18 • Mount welding shoe - Select the welding shoe required for the CAUTION The hot air hood must be in place. specific weld geometry or machine a welding shoe blank to the required geometry. - Observe DVS 2207 Guideline, Part 4 for machining welding shoe blanks. -
Page 10: Welding With The Hand Extruder
Make sure to maintain the air supply. bore for introducing the welding rod. • When interrupting the welding job, switch off the drive unit and deposit the hand extruder as shown in the illustration below. MEK-18 / MAK-18 Issue 08.2008/Rev. 00 Page 11/20... -
Page 11: Shutoff
Hand Extruder MEK-18 / MAK-18 5.4.5 Shutoff 5.4.6 Transport/Storage Observe section “Safety”. Make sure to observe the instructions under section “Transport/Storage“. • After completion of the welding job, switch off the drive unit and deposit the hand extruder as shown in the illustration (see preceding section). - Page 12 MEK-18 / MAK-18 Issue 08.2008/Rev. 00 Page 13/20...
