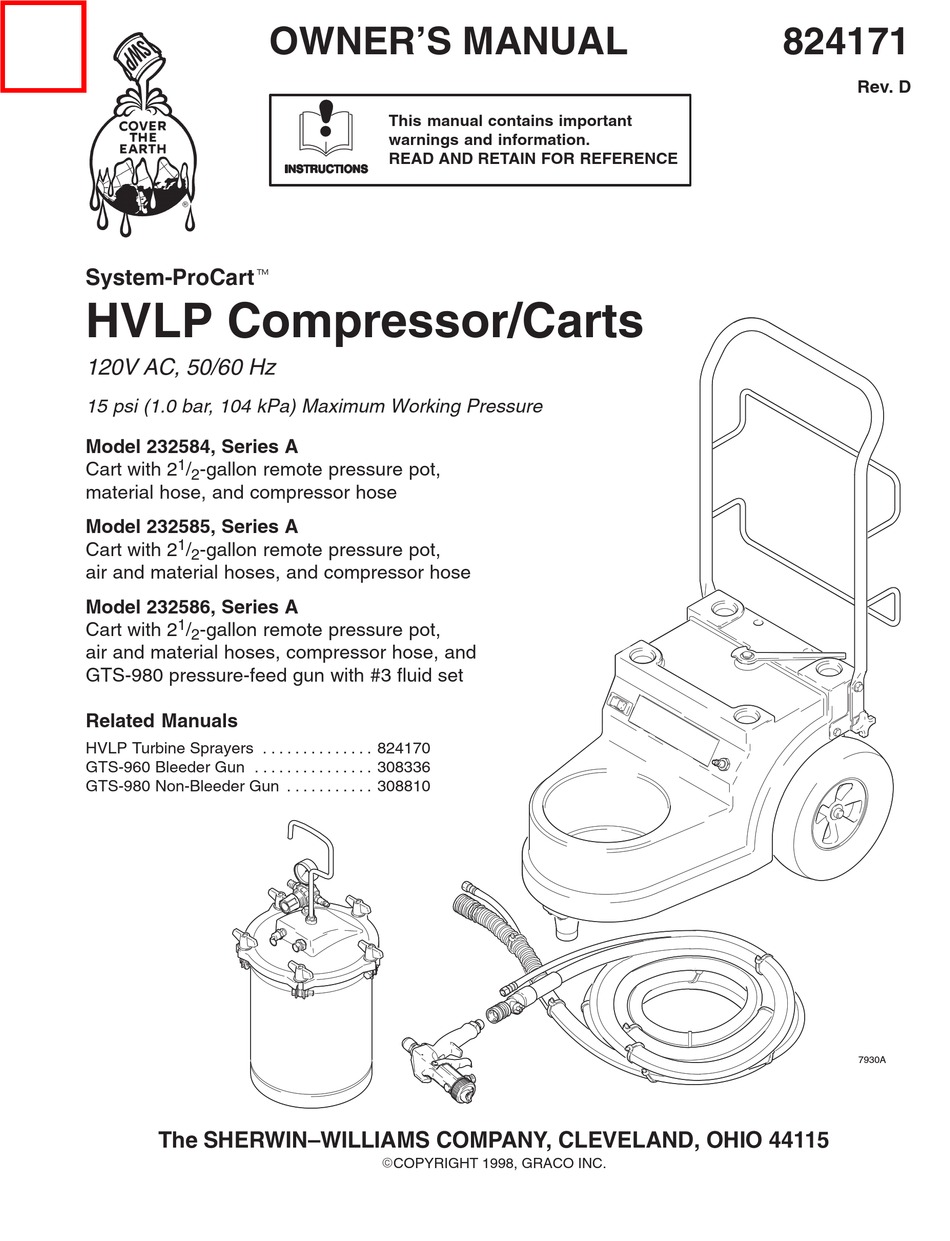

System-ProCartt
HVLP Compressor/Carts
120V AC, 50/60 Hz
15 psi (1.0 bar, 104 kPa) Maximum Working Pressure

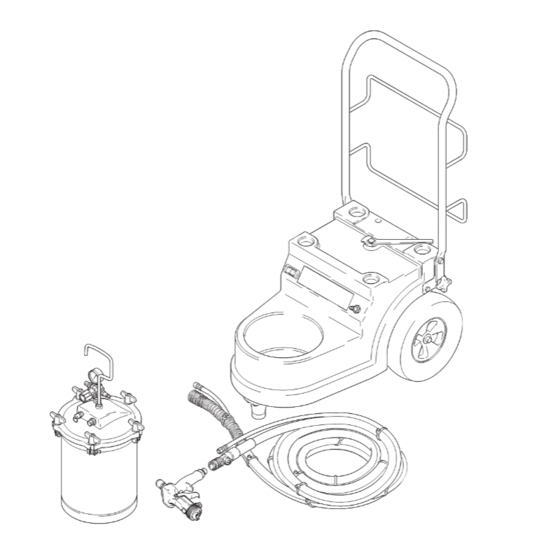

Model 232584, Series A
1
Cart with 2
/
-gallon remote pressure pot,
2
material hose, and compressor hose
Model 232585, Series A
1
Cart with 2
/
-gallon remote pressure pot,
2
air and material hoses, and compressor hose
Model 232586, Series A
1
Cart with 2
/
-gallon remote pressure pot,
2
air and material hoses, compressor hose, and
GTS-980 pressure-feed gun with #3 fluid set
Related Manuals
HVLP Turbine Sprayers
. . . . . . . . . . . . . .
GTS-960 Bleeder Gun
. . . . . . . . . . . . . . .
GTS-980 Non-Bleeder Gun
The SHERWIN–WILLIAMS COMPANY, CLEVELAND, OHIO 44115
OWNER'S MANUAL
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
824170
308336
. . . . . . . . . . .
308810
ECOPYRIGHT 1998, GRACO INC.
824171
Rev. D
7930A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Sherwin-Williams System-ProCart 232584
- Page 1 OWNER’S MANUAL 824171 Rev. D This manual contains important warnings and information. READ AND RETAIN FOR REFERENCE System-ProCartt HVLP Compressor/Carts 120V AC, 50/60 Hz 15 psi (1.0 bar, 104 kPa) Maximum Working Pressure Model 232584, Series A Cart with 2 -gallon remote pressure pot, material hose, and compressor hose Model 232585, Series A...
-
Page 2: Table Of Contents
Table of Contents Symbols Warnings ........Warning Symbol General Information . - Page 3 WARNING EQUIPMENT MISUSE HAZARD Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury. INSTRUCTIONS D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before you operate this equipment. D Use the equipment only for its intended purpose.
-
Page 4: General Information
General Information Unpacking HVLP System Operation Unpack the compressor/cart from the shipping carton, The System-ProCart HVLP Compressor/Cart, turbine and inspect for shipping damage. If anything is sprayer, and turbine spray gun comprises the HVLP damaged, call your distributor. system. The HVLP system can spray most coatings or finishes currently being used for automotive refinish, The contents of the System-ProCart HVLP industrial, aerospace, marine, wood, plastic, and... -
Page 5: Component Identification And Function
Component Identification and Function 7930A Fig. 1 Remote pressure pot holder Provides space for 2-quart or 2 -gallon remote pressure pots Air outlet Connection for compressor air supply to remote pressure pots Turbine latch Locks turbine sprayer in position on cart Hose holder Provides storage space for sprayer hose, gun, and accessories Cart handle... -
Page 6: Setup
Setup Grounding Prepare the Fluid D Always strain the fluid before you spray; this WARNING includes color, reducer, and hardeners if used. Improper installation or alteration of the grounding D Use a slower-drying reducer or thinner to plug will result in a risk of electric shock, fire or compensate for the faster drying time caused by explosion that could cause serious injury or death. - Page 7 Setup Remote Pressure Pot 1. Place remote pressure pot in pressure pot holder on cart. 2. Follow Connect Fluid and Air Supply instructions on page 8. Storage Position for Cart Handle turbine sprayer 1. Turn knob to free handle. (see manual 824170) 2.
- Page 8 Setup Connect Fluid and Air Supply 2. If using spray gun cup (D): Connect cup to gun fluid inlet (E). See Fig. 4. If using accessory remote pressure pot (F): D The HVLP Compressor/cart provides the air supply Connect fluid supply hose (G) between remote for remote pressure pots.
- Page 9 Setup Fill the Cup or Remote Pressure Pot Spray Gun Cup WARNING The spray gun cup is pressurized by the gun’s air supply. To reduce the risk of serious injury from pressurized fluid or accidental spray from the gun, always turn off the air supply to the gun before you remove the spray gun cup.
- Page 10 Setup Prepare the Surface to be Sprayed Cold Weather Operation To achieve proper adhesion, make sure the surface to The HVLP compressor/cart uses a diaphragm be sprayed is completely clean. compressor. A new diaphragm might be stiff in cold weather. If cold enough, the diaphragm is too stiff to Operating the Compressor allow the compressor motor to start (the unit hums).
-
Page 11: Shutdown
Shutdown Pressure Relief Procedure WARNING PRESSURIZED EQUIPMENT HAZARD The equipment stays pressurized until pressure is manually relieved. To reduce the risk of a serious injury from pressurized fluid, accidental spray from the gun, or splashing fluid, follow the Pressure 206c Relief Procedure whenever you gallon D Are instructed to relieve the pressure... -
Page 12: Maintenance
Maintenance Daily Check the cart daily for cleanliness. The compressor system is lifetime lubricated. The only maintenance required is filter cleaning and replacement. The compressor filter must be clean at all times to provide sufficient air flow to cool the motor and sufficient pressurized air to the remote pressure pots. -
Page 13: Troubleshooting
Troubleshooting PROBLEM CAUSE SOLUTION No fluid delivery No material, no remote container Check container for material. pressurization, hose or pickup tube clogged Check for leaks at the container gasket (2-quart pressure pot cover or -gallon pressure pot wing nuts). Tighten wing nuts if loose. Check for air flow from male quick disconnect at compressor outlet (approx. -
Page 14: Repair
Repair WARNING Turn off turbine and unplug power for the following procedures. Compressor/Cart Switch Replacement Power Cord Replacement See Fig. 9, Fig. 10, and Parts Drawing on page 16. See Fig. 10 and Parts Drawing on page 16. 1. To remove compressor power switch (28), wedge 1. - Page 15 Notes 824171...
-
Page 16: Parts Drawing
Parts Drawing System-ProCart HVLP Compressor/Carts Model 232584, Series A Model 232585, Series A Model 232586, Series A 7938B 824171... -
Page 17: Parts List
Parts List System-ProCart HVLP Compressor/Carts Model 232584, Series A Model 232585, Series A Model 232586, Series A Part No. Description Part No. Description 240008 HOUSING ASSY, cart 192802 SPACER, handle 191824 . WASHER, space 192797 PLATE, grill, cart 113658 . NUT, crest, hat 106084 SCREW, mach, pan hd 113647... -
Page 18: Sherwin-Williams Standard Warranty
Sherwin-Williams Standard Warranty Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
