Swefog Ultimate 3000DMX
30 203-240 Ultimate 3000 DMX 230V 50Hz
Rev. 2 2012-12-02
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultimate 3000DMX and is the answer not in the manual?

Questions and answers

Summary of Contents for Swefog Ultimate 3000DMX

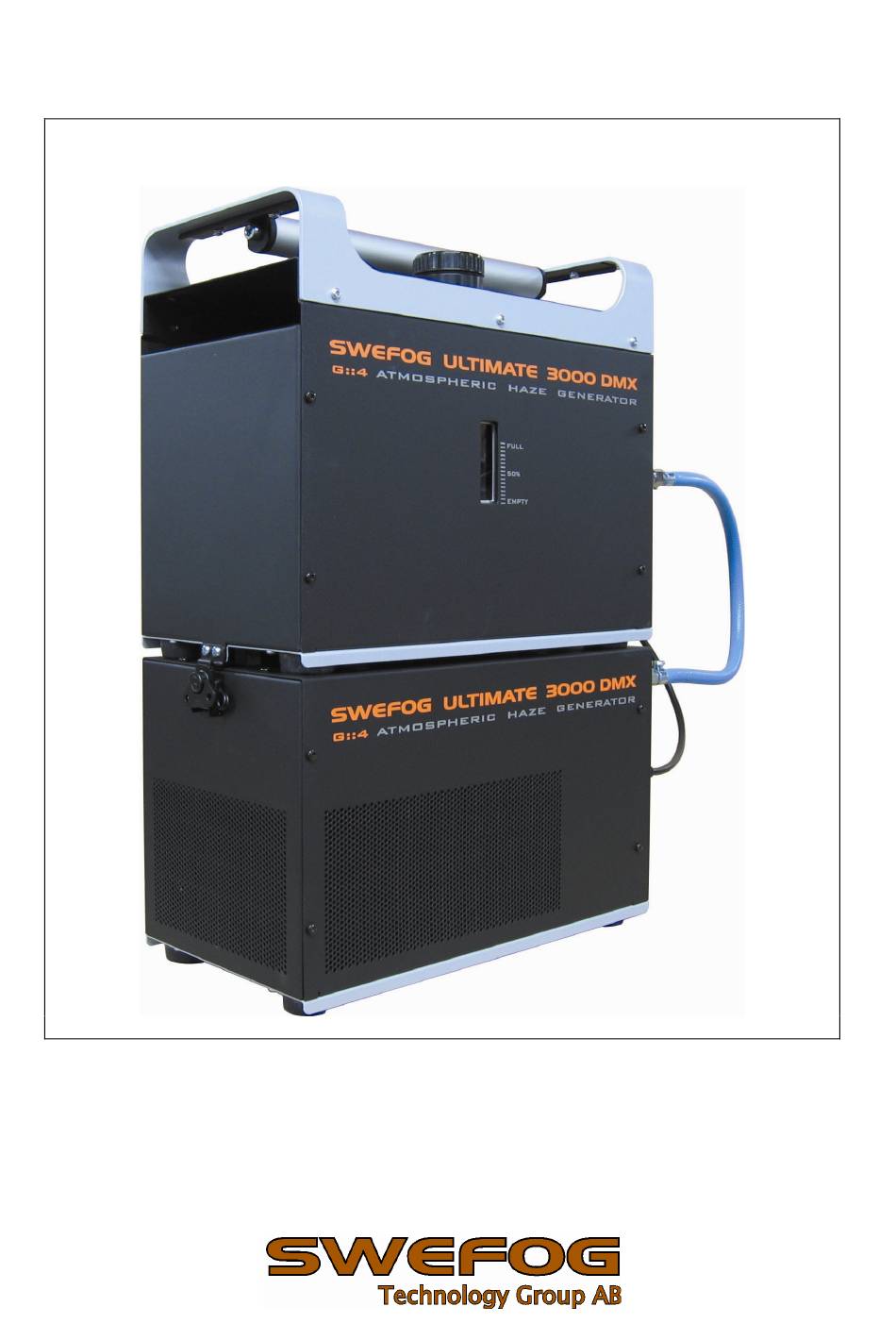

  • Page 1 Swefog Ultimate 3000DMX 30 203-240 Ultimate 3000 DMX 230V 50Hz Rev. 2 2012-12-02 OWNER’S MANUAL...
  • Page 2 IMPORTANT! Read all cautions and warnings prior to assembly, mounting and operating this equipment. IMPORTANT ! Prière de lire toutes les précautions et les avertissements avant l’assemblage, le montage et de faire fonctionner cet équipement. WICHTIG ! Lesen Sie alle Warnungen sorgfältig bevor Sie das Gerät zusammenbauen, installieren und benutzen.

  • Page 3: Table Of Contents

    6.2.2 Control – DMX 512 & manual on/off Fluids 7. SERVICE, MAINTENANCE & REPAIR 8. SPECIFICATIONS 9. SWEFOG WORLDWIDE WARRANTY Manufactured by: S W E F O G T E C H N O L O G Y G R O U P AB INDUSTRIVÄGEN 15 SE-682 33 FILIPSTAD, SWEDEN.

  • Page 4: How To Use This Guide

    1. Read chapter 3: “SAFETY PRECAUTIONS”. 2. Place machine on a level surface. 3. Fill Swefog Ultimate haze fluid in the tank, fill slowly, and do NOT exceed the “max” level indicator! 4. Connect to a mains outlet with earth lead.

  • Page 5: Introduction

    However, to keep your machine functioning like new throughout its entire life, it is important to follow the instructions in this manual and to perform regular maintenance of the hazer. For the best results, use only original Swefog Ultimate haze fluid in the machine. Use of any other fluid will void the warranty.
  • Page 6 • Service internal parts ONLY if you have the know-how and experience to perform the service correctly. If not, please contact a Swefog service centre or the manufacturer. NOTE: Incorrect service and/or use of non-original spare parts will void the warranty.

  • Page 7: Ce-Conformity

    4. CE-CONFORMITY (230V models only): We, Swefog, declare that the appliance described in this manual conforms to the EEC machine directive. Complete documents may be required from Swefog. 5. INSTALLATION AND PRECAUTIONS: • Make sure the area in which this product is to be used is well ventilated.

  • Page 8: Operation

    6. OPERATION : 6.1 Explore your machine: Ergonomic AluGrip handle Fluid fill Haze outlet Fluid level indicator Air tube Front butterfly catch Air in & outlet Heavy-duty rubber feet...

  • Page 9: Air Inlet Filter Mats On Machine Housing

    Internal fan air inlet filter holder screws (release both screws when replacing the filter mat). Internal fan air inlet filter frame. Compressed air inlet. Operation indicator Power supply inlet Butterfly catch Compressed air outlet Power supply outlet to haze unit Control panel 6.1.1 Air inlet filter mats on machine housing: Ultimate 3000 DMX uses air filter mats covering all air in/outlets on the machine housing.

  • Page 10: Ergonomic Alugrip Handle

    Place the machine on a level surface. • Remove the fill cap on top of the machine. Fill with original “Swefog Ultimate” fluid. Fill slowly. DO NOT overfill. NEVER exceed the ”max” fluid level. Close the fill cap before switching on the machine.

  • Page 11: Control - Dmx 512 & Manual On/Off

    6.2.2 Control – DMX 512 & manual on / off: If controlled with DMX, the machine uses one channel only, and reads all channels between 001 and 512. The machine is ON at DMX level 77 (approx. 30%). XLR pinout: Pin 1 = gnd / sleeve, pin 2 = signal - , pin 3 = signal + ON / OFF can be controlled with DMX or manually.

  • Page 12: Fluids

    Ultimate hazer series. The oils used during the manufacturing process are also filtered several times to ensure an extremely clean fluid. Swefog Ultimate fluids are of medical grade, which is the finest oil quality available. Medical grade oils, which is a quality grade far better than “food grade”...

  • Page 13: Service, Maintenance & Repair

    If not, refer service tasks to qualified technical personnel, or contact a preferred Swefog dealer. Preferred dealers have qualified service technicians, and will be able to perform most service works.

  • Page 14: Swefog Worldwide Warranty

    If purchase date cannot be provided, date of manufacture will be used to determine warranty period. Returning an item for repair covered by warranty Before any units are sent to Swefog for repair, a Return (RMA) Form has to be filled out. This RMA form can be obtained by contacting Swefog info@swefog.com or downloaded from our website www.swefog.com.
