EUTHANEX SmartBox M1TSFF2C-FM Manual

Auto co2 system
Hide thumbs

Advertisement

Quick Links

Download this manual
Auto CO
877-559-0159 Toll Free
610-559-0159 Phone
610-821-3061 Fax
www.euthanex.com
System
2
Models M1TSFF2C-FM
4/21/2020
Euthanex Corp. / E-Z Systems Inc.
P.O. Box 3544
Palmer, PA 18043
info@euthanex.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmartBox M1TSFF2C-FM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EUTHANEX SmartBox M1TSFF2C-FM

Summary of Contents for EUTHANEX SmartBox M1TSFF2C-FM

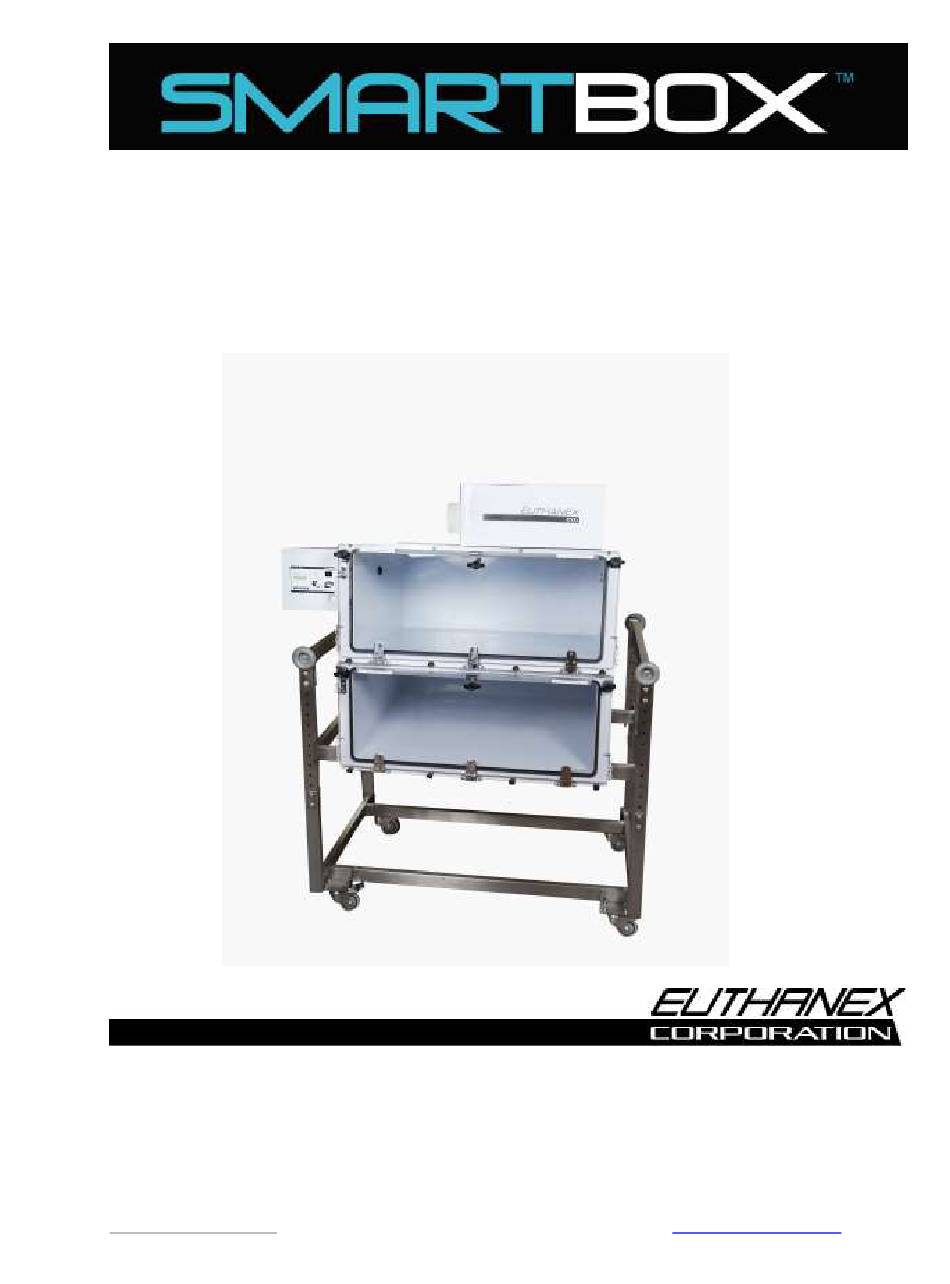

  • Page 1 Auto CO System Models M1TSFF2C-FM 4/21/2020 877-559-0159 Toll Free Euthanex Corp. / E-Z Systems Inc. 610-559-0159 Phone P.O. Box 3544 610-821-3061 Fax Palmer, PA 18043 www.euthanex.com info@euthanex.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Disclaimer ____________________________________ System Overview _______________________________ Saftey________________________________________ System Setup __________________________________ Operating the System ___________________________ Changing Operating Specifications _________________ Troubleshooting _______________________________ EMC / EMI. This equipment has been tested and found to comply with the limits for a Class A Equipment, pursuant to part 15 of the FCC rules.

  • Page 3: Disclaimer

    Parts that have failed, in whole or in part, exhibit excessive wear, are contaminated or are otherwise at the end of their useful life, should not be used and should be replaced with parts supplied by Euthanex Corporation. Tampering with the controller unit by unauthorized personnel voids all warranties and specifications.

  • Page 4: System Overview

    SMARTBOX FIXED FLOW SYSTEM OVERVIEW The SmartBox Fixed Flow M1-TSFF Auto CO System is an advanced automated euthanasia unit that has been developed specifically for euthanizing small rodents. The system incorporates three key components, the SmartBox Fixed Flow Controller, the M1 Chamber and the Exhaust Blower. The system works with preset timings that assure humane and efficient levels of CO .
  • Page 5 The exclamation point within an equilateral triangle is The lightning flash with an arrowhead intended to alert the user to the presence of important symbol within an equilateral triangle, is operating and maintenance (servicing) instructions in intended to alert the user to the presence of the literature accompanying the product.

  • Page 6: System Setup

    SYSTEM SETUP 1) The SmartBox controller is attached to the top M1 chamber utilizing the four keyholes on the back of the controller. Note: The chamber door must be opened to hang controller. Screw mounts on chamber side Controller keyhole mounted on chamber screw Align the keyholes with the four screws on the left side of the chamber.
  • Page 7 Input Fitting Input Hose 2) On the bottom of the SmartBox side control box is a brass CO input fitting that must be connected to the CO supply. For Tank supply gas see step #9 and for house see step #12. Input Connection ConnCpmme.
  • Page 8 4) TSFF-2C/3C Models Only are equipped with the ESC safety lock microswitch that allows the second and third chamber to lock when in use. Use the four pin connector to attach to the back of the ESC. 5) Rest the exhaust blower on top of the chamber. The large 4” exhaust hose must be on left and the 1” intake hose on the right.
  • Page 9 CO to dissipate away from personnel. Euthanex also offers a flat wall plate thimble for adapting to flat return grates. 8) For hose supplied gas go to step #10 9) EA-6500 Install Instructions The unit should be mounted above the top of the tanks as seen above.
  • Page 10 A. Hold assembly firmly against the wall where you would like to mount your manifold. B. Use level to ensure the manifold is level against the wall C. Use a marker or pencil to scribe the four (4) holes, 2 located on the manifold bracket and 2 located on the regulator bracket.
  • Page 11 Connect the power cord. Turn on the heater and leave it on, it is thermostatically controlled. Connect the hose from the regulator to the gas inlet on the side control box of your system. Input Fitting Input Hose K. Attach CO2 hoses to the tanks. L.
  • Page 12 M. Adjust the regulator. SYSTEM SETTING M1-TSFM-2 40 PSGI M1-TSFM-3 40 PSGI 10) For house supplied gas connect the supplied FF-1130 hose from the barb on the house side to the connector for gas in on the side control box as shown above. For either methods of gas supply, gas flow is regulated using the flow meters on the back side of the ADJUST GAS INLET RATE TO 60 LPM side control box.
  • Page 13 11) Plug AC cord from SmartBox controller into AC power outlet. 12) Plug AC cord from exhaust blower into back of the SmartBox controller. This outlet is to only be used for the EA-Blower supplied by Euthanex. Cette sortie est à être utilisé uniquement pour l'EA-Soufflante fournies par Euthanex.

  • Page 14: Operating The System

    OPERATING THE SYSTEM 1) Press the On switch in the back of the SmartBox FF. The unit will boot and come to the home screen ready for use. If this is the first time using the system the operating parameters must be setup prior to running any cycles (see administrator instructions).
  • Page 15 2) Turn the three knobs on the front of the M1 chamber door counterclockwise to open. Please note: Knobs must be in a fully horizontal position in order to open. 3) The chamber(s) is now ready to be loaded. Cages with wire bar lids can be stacked in two layers. Do not position upper layer cages directly on top of cages below.
  • Page 16 4) After the chamber is loaded, close the door and turn all three knobs fully clockwise to seal. If the knobs are not fully turned, a slight gas leak may occur. The red “Fault” light indicates that the door is open. It does NOT indicate that the door is not fully latched. 5) Open the gas flow from the CO manifold by turning the regulator valve knob counterclockwise.
  • Page 17 7) From the home screen press start. Enter Password and hit “NEXT” If the system has password turned on you will get the following screen. Enter password to move forward. 8) Enter Password and hit “NEXT”...
  • Page 18 Note: The status button will show if any cycle is currently running. 9) Select the species by touching the type you want to use, the press Next. 10) Select the chambers that will be used by touching the ones you want to use, the press Next.
  • Page 19 11) If the doors are closed the above screen will appear. If the door is not shut properly you will see a message to close the door. Press Start to begin the cycle. 12) During the first initial run, adjust the regulator flow rate to 100 CFPH. This adjustment will assure a humane process.
  • Page 20 Option: If programed the system will do a second charge and dwell cycle. Stage 3: Exhaust blower turns on and purges the chamber, fully evacuating CO 14) After the blower automatically switches off, the animals may be safely removed from the chamber. 15) The red emergency “STOP”...

  • Page 21: Changing Operating Specifications

    Default flow rates and times were chosen to comply with the latest guidelines of the AVMA Panel on Euthanasia and through extensive testing performed by Euthanex. Flow rates and times are programmable and may be changed by a designated administrator. Refer to the “Recommended Settings”...
  • Page 22 This red button will issue the system to shutdown. Once pressed the screen will go black and the main power switch need to be turned off to shut off the unit completely. 1. From the Home Screen press Admin. 2. Enter the Administrator 4 digit password (default is 7777 and can be changed once in the admin settings screen) and press Next.
  • Page 23 The down arrow is for service techs use only 3. The Admin Options Screen will appear. a. Add New Species i. Use this to add new Species for cycle b. Edit Existing Species i. Use to change operating parameters of defined species that are already in the system.
  • Page 24 4. To Add new Species, select from admin screen 5. The add new cage screen will be displayed. a. Type in the Label of the Species that you want to add. b. When input is complete press next. c. Now the times need to be set for the new Species. Use the + and – next to the times to be adjusted.
  • Page 25 6. To Edit Species, select from admin screen a. Select the species that you would like to edit from the popup and hit ok. b. The info screen will appear. From this screen you can delete or edit the species.
  • Page 26 c. Press Edit and the name edit will appear. Change name here or just hit next when complete. The next screen will appear. d. The parameters will appear. Change the times parameters here. Hit save when complete. A confirm popup will appear, just hit ok to return to the main screen.
  • Page 27 7. Change System Parameters, select from admin screen a. Change Exhaust time using the + and – next to the times to be adjusted A. b. Select if the system will require a password for users. c. Adjust system language. As more translations are added we will update the software. d.
  • Page 28 WIFI settings. Used to connect the unit to your WIFI network. WIFI is connected WIFI in NOT connected Select the network and security protocol then enter the password. Hit Save. g. Reg Sensor. If you have purchased the Remote tanks monitor option, this is where you can register and name the tank monitors.
  • Page 29 d. This option allows the admin to limit the users to their designated cages. Set a selection next to each species allow. Once complete hit OK. A confirm popup will appear, hit OK to return to the main screen. 9. Edit User a.
  • Page 30 b. Change User settings as desired. Also the user can be deleted. Hit save when complete. 10. Change Admin Password a. Input current Admin password, change to new password and hit save. 11. Use logging website. For the unit to send logs to our useage website it must be on wi-fi To access logs: https://eztrakdata.com/runlog/runlog.swf use the user id and password that was provided to you on the calibration sheet for the unit.

  • Page 31: Troubleshooting

    TROUBLESHOOTING Before any service is done that would require opening the unit it must be disconnected from the power source. If your location has lockout-tag out protocols please follow them. System will not turn on: 1) Make sure power cord is properly plugged in. 2) Make sure the power switch on the back of the unit is turned in the “ON”...
  • Page 32 In both of the above please power off system at master power switch located on the lower left of the rear side of the control box. Allow power to be off for at least 1 min. If this troubleshooting guide does not resolve your problem, contact Euthanex Tech Support at info@euthanex.com...
