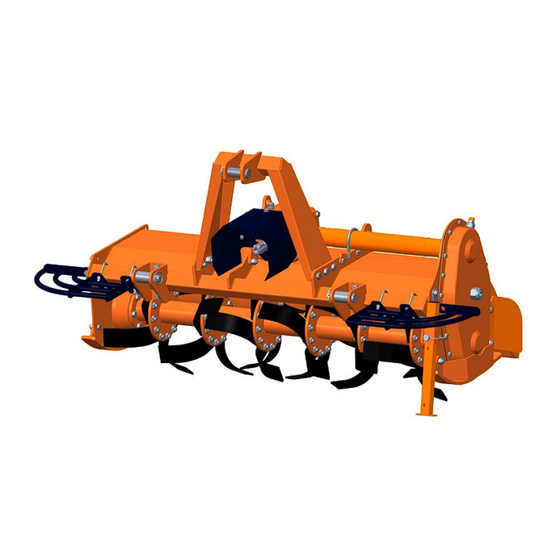

- Page 1 WESSEX CULTIVATOR RC - SERIES RC-120 – RC-150 OPERATOR'S PARTS MANUAL Manual P/N: OM 1121-1 / REV. 05 / 2015...
- Page 2 Congratulation for purchasing your new Wessex Cultivator! This Cultivator has been designed and manufactured following all safety and quality requirements needed for a safe and satisfactory use over time. A careful reading of this manual will permit you to familiarize with your new equipment, and will provide you all the tools needed to use it safely.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ABOUT THIS MANUAL..............INTRODUCTION................2.1. CULTIVATOR IDENTIFICATION........................ 2.2. INTENDED USE............................ 2.3. MAIN PARTS DESCRIPTION......................2.4. CULTIVATOR SPECIFICATION........................SAFETY....................3.1. GENERAL SAFETY INSTRUCTIONS..................... 3.2. EQUIPMENT SAFETY INSTRUCTIONS..................3.3. OPERATING SAFETY INSTRUCTIONS..................3.4. TRANSPORTING SAFETY INSTRUCTIONS................3.5. MAINTENANCE SAFETY INSTRUCTIONS................. 3.6. - Page 4 6.2. GEARBOX LUBRICATION......................... 6.3. SIDE CASE LUBRICATION........................ 6.4. BEARING HOUSING LUBRICATION..................... 6.5. DRIVESHAFT MAINTENANCE....................... STORAGE................... SCRAPPING..................TROUBLESHOOTING..............28 10. TORQUE VALUES TABLE.............. 30 11. SPARE PARTS LIST………………………………………………………… 31 12. EC DECLARATION OF CONFORMITY......... 46...
-
Page 5: About This Manual
RC-Series Rotary Cultivators 1. ABOUT THIS MANUAL The operator must read the manual for a correct understanding of the hazards that may present when operating the Cultivator, as well as for obtain optimum performance from the machine. The manual is part of the machine, it must be kept in good condition and remain with the machine even in case of resale, until its demolition. -
Page 6: Main Parts Description
RC-Series Rotary Cultivators Hitch Category: 3-point Cat. I standard PTO: 540 RPM, 6-spline, 1 3/8 Z6 Horsepower: Cultivator (RC-120): 20-30 HP Cultivator (RC-150): 25-40 HP DANGER Any use of the machine other than the intended use is non-intended use, and is to be considered as unauthorized and dangerous. -
Page 7: Cultivator Specification
RC-Series Rotary Cultivators 2.4. CULTIVATOR SPECIFICATIONS CULTIVATOR MODEL (RC-120) (RC-150) Overall dimensions 1340 x 805 x 600 1645 x 805 x 600 45.6'' 58.2'' Tilling width 115.82 147.83 Recommended 20-35 25-40 Tractor HP range Cat. I, Cat. I, 3-point Hitch type compat. -
Page 8: Safety
RC-Series Rotary Cultivators 3. SAFETY Proper use of equipment, a strict observance of the safety messages listed below and application of all reasonable practices to avoid any risks, prevents accidents or injury, allows the machine working better and longer, and minimize the failures. The manufacturer assumes no liability for any damage resulting from not applying the behavioral rules indicated into the manual. -
Page 9: Equipment Safety Instructions
RC-Series Rotary Cultivators Do not operate the implement when tired, not in good condition or under the influence of alcohol or drugs. CAUTION If the use of the machine is required at night or in conditions of reduced visibility, use the lighting system of the tractor and possibly an auxiliary lighting system. -
Page 10: Operating Safety Instructions
RC-Series Rotary Cultivators DANGER Do not operate the Cultivator if the driveshaft is damaged. The driveshaft could be subject to breakage during operation, causing serious injury or death. Remove the driveshaft and replace it with an undamaged. 3.3. OPERATING SAFETY INSTRUCTIONS WARNING Before using the machine, be sure to have cleared the operating area from obstacles (stones, branches, debris, etc...). -
Page 11: Transporting Safety Instructions
RC-Series Rotary Cultivators DANGER Before engaging the PTO of the tractor, always make sure that the drive shaft is mounted in the correct direction, and that its clamping elements are properly connected both to tractor side and to Cultivator side. WARNING Stop operating immediately if blades strike a foreign object. -
Page 12: Maintenance Safety Instructions
RC-Series Rotary Cultivators CAUTION Always use tractor lighting system and auxiliary lighting system for an adequate warning to operators of other vehicles, especially when transporting at night or in conditions of reduced visibility. DANGER In case of Cultivator lifting, make sure that the lifting device chosen is suitable to perform the operation safely, and use only the lifting points prescribed on Cultivator. -
Page 13: Safety Labels
RC-Series Rotary Cultivators Place support blocks under Cultivator as needed to prevent unit from tipping over onto a child and/or an adult. A Cultivator that tips over can result in injury or death. CAUTION Store the unit in an area away from human activity. 3.7. - Page 14 RC-Series Rotary Cultivators Disengage the PTO, turn off the tractor engine, remove the key and ensure that all rotating parts have stopped before approaching the implement. Read the operator’s manual before performing any maintenance operation. Thrown or flying objects hazard Safety Wear Crushing hazards &...
-
Page 15: Set-Up
RC-Series Rotary Cultivators Operate only with 540 rpm PTO. Rotating Gears Oil filling point Lifting point Grease filling point Hand Hazard 4. SET UP The Cultivator is delivered fully assembled and equipped with a driveshaft with torque limiter (clutch discs) and related operating manual. When the machine is delivered, check that there is no damage to the Cultivator or driveshaft. -
Page 16: Lower Hitches Positioning
RC-Series Rotary Cultivators 4.1. LOWER HITCHES POSITIONING The RC-SERIES Cultivators are designed to be mounted on tractors equipped with: 3-point Hitch Category I (ISO 730 standard); Quick Hitch Category I (ASABE Standard). The position of the lower hitches must be adjusted accordingly. If the tractor is equipped with a Quick Hitch Category I (ASABE Standard), verify that the lower clevises show the pins oriented up (see figure), so that the distance between upper and the lower pins is 15'' (381 mm), as required from the standard. -
Page 17: Connecting To The Tractor
RC-Series Rotary Cultivators invert the clevis orientation and reposition it on the square tube at distance of 13 7/16'' from the center of Cultivator PTO. At the end of the operation the lower clevises should be positioned symmetrically respect to Cultivator PTO, at distance of 26 7/8'' (683 mm); ... -
Page 18: Driveline Length Check
RC-Series Rotary Cultivators hook to the tractor and Cultivator the two retaining chains of the the driveline shielding, to prevent shielding rotation during functioning of the machine. DRIVELINE LENGTH CHECK Before operating the Cultivator, ensure that the size of driveshaft is adequate. The driveshaft supplied with the machine has a standard length, therefore it may need an adaptation of the length, depending of the tractor which the Cultivator is combined. -
Page 19: Tractor-Cultivator Stability
RC-Series Rotary Cultivators IMPORTANT before operating the Cultivator the first time, make sure that the driveshaft is lubricated in accordance with how indicated in the instruction booklet; before operating the Cultivator the first time, and after long periods of inactivity, make sure that the driveline clutch has run a short "run in"... - Page 20 RC-Series Rotary Cultivators check that the driveshaft clutch is in good condition, and that its components are not subject to "sticking" (see section: Maintenance / Driveline); check the presence of lubricant in all greasing points of the Cultivator (driveshaft, supports...) (see sect.
-
Page 21: Operating Instructions
RC-Series Rotary Cultivators 5.2. OPERATING INSTRUCTIONS During operations:/ OPERATE ACCORDING TO FOLLOWING INTRUCTION always keep the tractor engine at rpm rate ensuring to the Cultivator the right power required for the use; always keep a tractor speed adequate to conditions of the soil to be worked (from 2 to 10 km / h approx.). -
Page 22: Friction Clutch Adjustment
RC-Series Rotary Cultivators FRICTION CLUTCH ADJUSTMENT The PTO driveshaft and friction clutch are designed to transmit adequate power to the Cultivator. The clutch preserves the machine from overloads, through the slipping of friction discs, and limits the max torque transmissible to a calibrated value set at factory. It is recommended, therefore, to leave unchanged this value to avoid damages to the machine or to driveshaft. -
Page 23: Skids Adjustment
RC-Series Rotary Cultivators The manufacturer is not liable for damages resulting from a wrong modification of the clutch calibration. NOTE Excessive tightening of the springs can prevent the clutch from slipping and to protect the machine from overload. Make sure that the height of all the compressed springs is equal to prevent clutch malfunctioning. SKIDS ADJUSTMENT The working depth of the Cultivator is determined by the position of the side skids: it may be increased by raising the skids, and decreased by lowered them. -
Page 24: Rear Board Adjustment
RC-Series Rotary Cultivators The position of the rear board is adjustable by varying the number of chain links included between distance XY, which remain tensioned under the weight of the board (i.e. links between the rear board U-bolt 1 and the slot of the frame 2). ... -
Page 25: Transporting
RC-Series Rotary Cultivators To disconnect the Cultivator from the tractor (e.g. to make a change of implement): adjust the skids to their lowest position (see Section Adjustments); adjust the parking stand to the lowest position, through the use of relative retaining pin; ... -
Page 26: Blades Replacement
RC-Series Rotary Cultivators compromise the functioning and duration of the machine, and consequently invalidate the warranty. The frequency of maintenance indicated refers to normal conditions of use: it must be intensified in severe operating conditions (frequent stops and starts, prolonged winter season etc ...). Repairs, maintenance and modifications other than those mentioned in this paragraph should NOT be performed without consulting the manufacturer or your dealer. -
Page 27: Gearbox Lubrication
RC-Series Rotary Cultivators Periodically check the tightness of screws and nuts, and tighten if necessary. IMPORTANT Remove and install one blade at a time to ensure blades are correctly oriented when installed. Replace worn blades only with original parts. CAUTION Worn tines may be very sharp! 6.2. -
Page 28: Side Case Lubrication
RC-Series Rotary Cultivators after the first 50 working hours; each 500 working hours. To make the oil change: place a tank under the oil drain plug (bottom of gearbox) ; unscrew the oil drain plug and drain oil completely into the tank; ... -
Page 29: Bearing Housing Lubrication
RC-Series Rotary Cultivators To make the oil change: remove the skid from the transmission side; place a tank under the oil level plug; unscrew the oil level plug and drain completely the oil into the tank; retighten the level plug; ... - Page 30 RC-Series Rotary Cultivators IMPORTANT For details about maintenance and lubrication of the driveshaft, refer to the user manual of the driveshaft manufacturer. Driveshaft clutch: Exposition to the elements of Cultivator and driveshaft, or a long period of inactivity, generally results in oxidation of some clutch components, and creates "sticking" effect on the clutch. Consequently, the torque required to the slippage of the clutch increases considerable respect to the value set at factory, and this may be cause of driveshaft breakage during operation, or damage to the tractor or implement.
-
Page 31: Storage
RC-Series Rotary Cultivators 7. STORAGE Before leaving the Cultivator unused for a long time, it's necessary to perform following tasks to preserve the appearance and functionality of the machine, and to make easier the restart at later use: park the Cultivator on a flat surface, in a place dry and protected from exposition to the elements, possibly with storage temperature between 0 and 50 °... -
Page 32: Troubleshooting
RC-Series Rotary Cultivators 9. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Gearbox/transmission case Low oil level. Add oil to the noise noticeable and gearbox/transmission case. constant Worn gears. Replace gears Intermittent Loose blades. Tighten blades hardware Gear tooth damaged. noise from Cultivator Replace damaged gear Noise and/or vibration Blades worn or damaged. - Page 33 RC-Series Rotary Cultivators Skids need adjusting. Adjust skids. Blades worn or bent. Replace blades. Blades incorrectly installed. Install tines correctly. Debris entangled in blades Clear rotor and/or blades and/or rotor. Soil texture too coarse Rear board too high. Lower rear board. PTO speed too slow.
-
Page 34: Torque Values Table
RC-Series Rotary Cultivators 10. TORQUE VALUES TABLE Check frequently Cultivator hardware to make sure that screws and bolts are tightened according to torque values listed in following table: 8.8 grade 10.9 grade BOLT SIZE Ft lb Ft lb (METRIC) - Page 35 RC-Series Rotary Cultivators...
-
Page 36: Spare Parts List
RC-Series Rotary Cultivators RC-120 CULTIVATOR SPARE PARTS LIST ITEM. P/NUMBER QTY. PART NAME 8032 CASTLE NUT 28mm 1003 BEARING 30207 10181 HEX BOLT M10 X 1.50 X 30 10180 HEX BOLT M10 X 1.50 X 25 1209 M12X1.75 NYLOCK NUT 2202 HEX BOLT M14 X 1.50 X 37 1253... - Page 37 RC-Series Rotary Cultivators 14019 ROTOR SHAFT HOUSING (RC-SERIES) 14020 DUST COVER (RC-SERIES) 14021 STUB AXLE SHAFT (RC-SERIES) 14022 R D SHAFT (RC-SERIES) 14023 S D PLATE (RC-SERIES) 14024 R D PLATE (RC-SERIES) 14025 R D SHAFT SMALL (RC-SERIES) 14026 SPACER DIA-60 x 30 x 5 MM 14027 JACK SHAFT HOUSING MOUN PLATE (RC-SERIES) 14028...
- Page 38 RC-Series Rotary Cultivators 10209 ROTOR SRT-1.2M C/L-TYPE (RC-SERIES)(60X6) 10210 TRAILING BOARD ROD 1.2M (RC-SERIES) 14126 AIR BREATHER 1/2" BSP 2833 ALLEN BOLT M10 X 1.50 X 25 14131 O RING 30 x 3.50 19018 COTTER PIN (DIA 4 X 35) 14172 PTO SHAFT GUARD ASSEMBLY (SMALL) 14239...
- Page 39 RC-Series Rotary Cultivators RC-150 CULTIVATOR SPARE PARTS TABLE...
- Page 40 RC-Series Rotary Cultivators RC-150 CULTIVATOR SPARE PARTS LIST ITEM. P/NUMBER QTY. PART NAME 1509 SHEAR BOLT PTO 6SP COM(COVER)14.5"(35MM) 14124 BLADE L-TYPE RH (60X6)(157X117) 14125 BLADE L-TYPE LH (60X6)(157X117) 8032 CASTLE NUT 28mm 1003 BEARING 30207 10181 HEX BOLT M10 X 1.50 X 30 10180 HEX BOLT M10 X 1.50 X 25 1209...
- Page 41 RC-Series Rotary Cultivators 14011 M/C HITCHING BRACKET COMP (RC-SERIES) 14012 M/C MOUN STAND COMP (RC-SERIES) 14013 M/C STAND PIPE COMP (RC-SERIES) 14014 V-BOLT M14 x 2 x 90 x 83.2 x 26TL 14015 HITCH PIN BOTTOM CAT-I (DIA-22 X 99) 14016 BUSH (DIA.
- Page 42 RC-Series Rotary Cultivators 10179 3/8" BSPT PLUG WITH SQ. HEAD 14126 AIR BREATHER 1/2" BSP 2833 ALLEN BOLT M10 X 1.50 X 25 14131 O RING 30 x 3.50 19018 COTTER PIN (DIA 4 X 35) 14172 PTO SHAFT GUARD ASSEMBLY (SMALL) 14239 TOP MAST COMP.
- Page 43 RC-Series Rotary Cultivators RC-SERIES CULTIVATOR SPARE PARTS TABLE...
- Page 44 RC-Series Rotary Cultivators RC-SERIES CULTIVATOR CE KIT SPARE PARTS LIST RC-120 Part List ITEM P/NUMBER DESCRIPTION 14202 CE BARRIER COMP. UL-1.2 RH (RC-SERIES) 14201 CE BARRIER COMP. UL-1.2 LH (RC-SERIES) 14190 U-BOLT M8 X 1.25 X 77 X 60 X 28TL 14181 BARRIER ASM SUPPORT CLAMP RH (RC-SERIES) 14180...
- Page 45 RC-Series Rotary Cultivators Tirth Agro Technology Pvt. Ltd. (An ISO 9001:2008 Certified Company) National Highway – 27, Nr. Bharudi Toll Plaza, – Gondal Road At.: Bhunava 360311 Ta. Gondal, Dist.: Rajkot. State: Gujarat- INDIA. Phone: + 91 (2827) 661637 e-mail: info@shaktimanagro.com...
