Feature
3-channel intelligent LED driver with
constant current output
-
Up to 15mA current output with
4-level adjustable for each LED
-
Support both Direct PWM control
mode and One Shot Programming mode
-
Support 256 PWM steps
2
Fast I
C interface with maximum
operating frequency 400KHz
-
Adaptive to 1.8V/2.8V/3V interface
2
-
Configurable I
C address with default
value 45h
Interrupt pin INTN, active low
LDO and OSC inside
Power supply VCC，2.5V～3.3V
ESD HBM 7kV
Operation temperature -40℃~85℃
Package 2mm×2mm DFN-10L
Applications
Mobile phones, hand-hold devices
LED in home Appliance

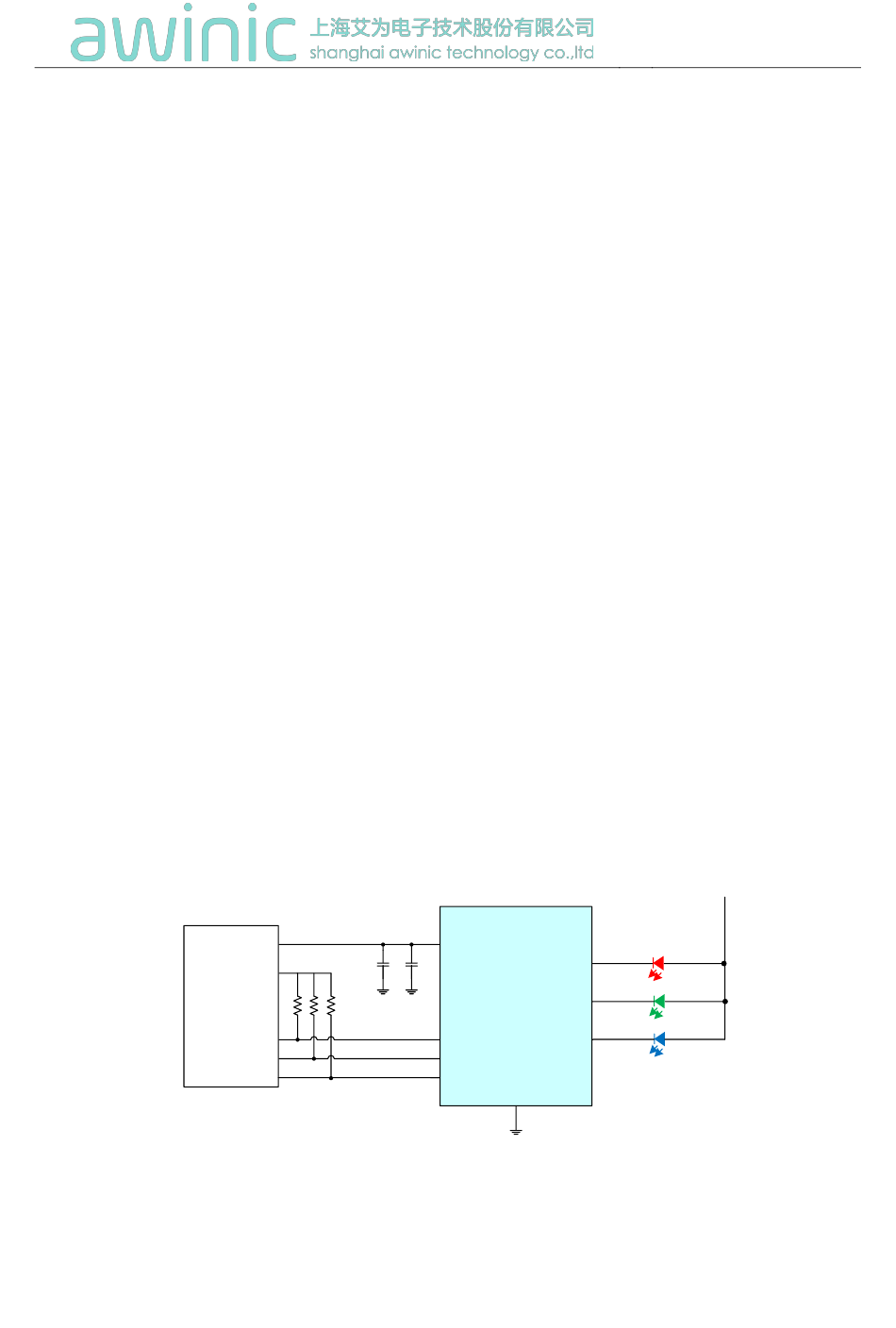

Typical Application Circuit
VIO1
VIO2
AW2013 3-channel LED Driver with I
Compatible Interface
VIO2
1u 0.1u
VIO1
MCU
4.7k
x3
SCL
SDA
INTN
：
I2C interface voltage
：
，
power supply voltage
2.5~3.3V
Figure 1 AW2013 Typical Application Circuit
General Description
AW2013 is a product of 3-channel LED
driver supporting auto breathing mode with
I2C interface in AWINIC LED driver product
line. It can drive 3 individual LEDs or one
group of RGB.
AW2013 drives LEDs with common anode,
constant current. The brightness can be
modulated in PWM with 256 steps. The
output current can be configured in 4 levels:
15mA、10mA、5mA、0mA(default)。
AW2013 supports fade-in and fade-out
effect for brightness control. There are two
modes: the Direct PWM Control mode and
One Short Programming mode. In the one
short programming mode, it's flexible to set
the breathing speed, timing, brightness and
repeat times.
VCC
LED0
LED1
AW2013
LED2
SCL
SDA
INTN
GND
AW2013
Nov 2017 V1.5
2
C
VBAT
Advertisement
Table of Contents
Related Manuals for AWINIC AW2013
Summary of Contents for AWINIC AW2013
- Page 1 Compatible Interface Feature General Description 3-channel intelligent LED driver with AW2013 is a product of 3-channel LED constant current output driver supporting auto breathing mode with I2C interface in AWINIC LED driver product Up to 15mA current output with line.
- Page 2 Function Block Diagram Figure 2 AW2013 block diagram PIN information AW2013 is available in DFN-10L(2mm*2mm) 2.1 Device PIN out Figure 3 AW2013 Top View and Marking 2.2 PIN description INDEX SYMBOL DESCRIPTION LED current source output, which can be connected to VBAT...
-
Page 3: Order Number
AW2013 Nov 2017 V1.5 Power supply, 2.5-3.3V Not used, keep floating DATA signal of I C interface，1.8V/3.3V compatible. Clock signal of I C interface，1.8V/3.3V compatible. Thermal PAD, Connect to GND Thermal PAD Order Information Temperature Package Marking ROHS Packing ORDER NUMBER... - Page 4 AW2013 Nov 2017 V1.5 Symbol Description Test Condition Unit Power Supply Sleep power Immediately after power up sleep supply current or soft reset Quiescent power Set register GCR=01h supply current Output Current Set register GCR=01h，LEDE=07h，PWM0～2=FFh （ ） LCFG0～2=03h Note1 12.5 LED output （...
- Page 5 AW2013 Nov 2017 V1.5 Symbol Description Con. Unit Total capacitance of one bus line ： Note1 Designed to ensure ： ， Note2 is the time for Voltage from 0.3×Vcc to 0.7×Vcc. HIGH HD:STA SU:STO HD:DAT SU:DAT SU:STA Stop Start Stop...
- Page 6 SCL and SDA. The maximum clock frequency supported is 400 KHz, which is compatible with I2C standard. 6.2 I2C Address The default I2C device address (7-bit) of AW2013 is 45h, followed by the R/W bit(Read=1/Write=0)， composites an slave address byte： Bit7...
- Page 7 AW2013 Nov 2017 V1.5 d) Master sends control register address (8-bit) e) Slave sends acknowledge signal Master sends data byte to be written to the addressed register g) Slave sends acknowledge signal h) If master will send further data bytes the control register address will be incremented by one...
- Page 8 I2C compatible standard. The typical value is 4.7KΩ AW2013 can support different high level (1.8V, 2.8V, 3V, 3.3V) of this two-wire interface. And deglitch circuit is also implemented inside to filter out the glitch in the SCL, SDA line.
-
Page 9: Soft Reset
After power-up reset operation finished, the ISR.4(PUIS) will be set to “1”. The INTN port will be driven low to inform master AW2013 has finished the power-up operation and is ready to work. This bit can also be used to check whether there’s a power-down event after reading this register last time. - Page 10 31h~33h) to “1”. In this mode, AW2013 can modulate the brightness of LED according to the programmed timing in a breathing cycle. T0~T4 define the 4 key timing in a breathing cycle. T0 is a delay time for starting, T1~T4 composite a full cycle.
- Page 11 AW2013 Nov 2017 V1.5 Registers 9.1 Register Function Address Name Function Default Soft Reset register, RSTR Soft reset control Global Control Register, GCR Set Global control bits Interrupt Status Register, ISR Report interrupt status LED Control Register, LCTR Enable LED channels...
- Page 12 Bit 0 Symbol Description Soft reset control register. Set this register to 55h, all of the circuits in AW2013 will be reset and the configurable registers will be reset to default value. D[7:0] This register can also be used for ID register when reading. The value is 33h when reading this register.
- Page 13 AW2013 Nov 2017 V1.5 IMAX Symbol Description Fade out effect enable. If current brightness level is higher than the value set into PWMx, the controller will darken the LED smoothly when this bit is set to “1” This bit is only valid when LCFGx.MD=0 Fade in effect enable.
- Page 14 AW2013 Nov 2017 V1.5 000：0.13s 011：0.26s 010：0.52s 011：1.04s 100：2.08s 101：4.16s 110：8.32s 111：16.64s 9.3.9 LED Timing Control Register2, LEDxT2 Address: 39h,3Ch,3Fh (Default value: 00h), RW Bit7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 REPEAT...
-
Page 15: Package Information
AW2013 Nov 2017 V1.5 10 Package Information 10.1 Tape And Reel Carrier Tape Pin 1 direction Reel 15 / 19... - Page 16 AW2013 Nov 2017 V1.5 10.2 Package DFN2x2-10 Unit:mm DFN-10L Symbol 0.800 0.700 0.750 0.000 0.050 0.152( Ref.) 0.200 0.250 0.150 0.350 0.250 0.300 1.950 2.000 2.050 Bottom View 1.350 1.400 1.450 Top View 1.600 ( Ref.) 0.400 (BSC) 1.950 2.000 2.050...
-
Page 17: Reflow Profile
Nov 2017 V1.5 10.4 Reflow Profile Reflow profile Figure 9 Classification Reflow Profile Parameters for classification reflow profile Note: 1. All of the temperature parameters are measured from the top of package; 、 AW2013 is suitable for Pb-Free assembly. 17 / 19... -
Page 18: Related Product Information
AWINIC Technology reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. - Page 19 Resale of AWINIC components or services with statements different from or beyond the parameters stated by AWINIC for that component or service voids all express and any implied warranties for the associated AWINIC component or service and is an unfair and deceptive business practice.
