TiGHT AV DSP-AEC-1410 User Manual

Audio dsp with aec 12-in/8-out analog and 2x2 usb
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

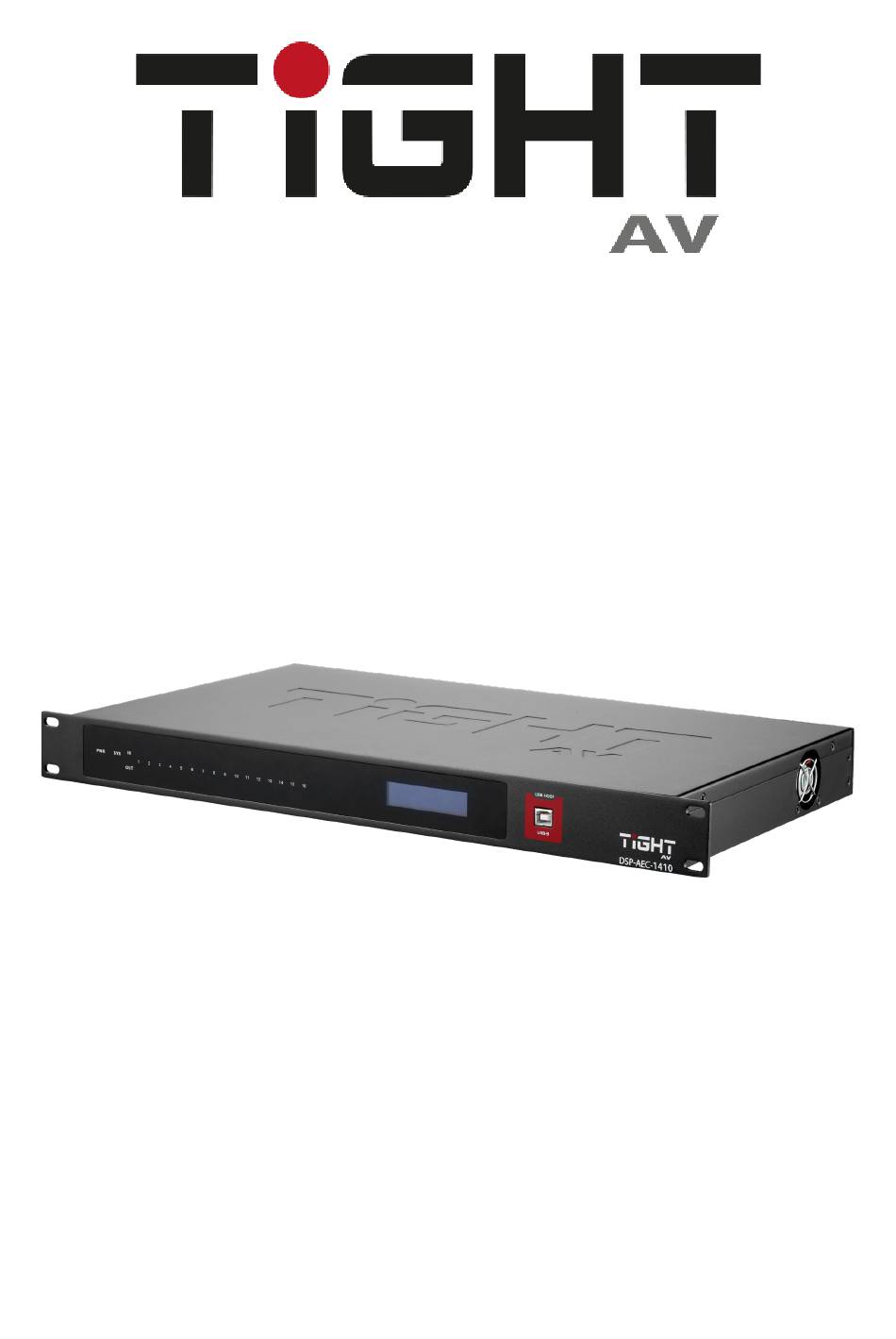

User Manual
DSP-AEC-1410
Audio DSP with AEC
12-in/8-out analog and 2x2 USB
All Rights Reserved
Version: DSP-AEC-1410_2023V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSP-AEC-1410 and is the answer not in the manual?

Questions and answers

Related Manuals for TiGHT AV DSP-AEC-1410

Summary of Contents for TiGHT AV DSP-AEC-1410

  • Page 1 User Manual DSP-AEC-1410 Audio DSP with AEC 12-in/8-out analog and 2x2 USB All Rights Reserved Version: DSP-AEC-1410_2023V1.1...
  • Page 2 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
  • Page 3 Ensure adequate ventilation if the product is placed on a stand or cabinet. Place the product in a well-ventilated place, away from direct sunlight or any heat source. Overheating: Avoid stacking the DSP-AEC-1410 on top of a hot component, such  as a power amplifier.

  • Page 4: Table Of Contents

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Table of Contents Quick Start Guide ....................... 5 1. Product Introduction....................6 1.1 Key Features ..................... 6 1.2 Package List ...................... 6 1.3 Customer Service ....................7 1.4 Technical Specifications ..................7 1.5 Front Panel Features ..................
  • Page 5 Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.7.1 Processing modules slots ..............28 2.3.8 Module Tabs ..................... 29 2.3.8.1 Inputs / Outputs .................. 29 2.3.8.2 AutoMixer ................... 30 2.3.8.3 AEC (Acoustic Echo Cancellation) ............. 33 2.3.8.4 ANS (Automatic Noise Suppression) ..........34 2.3.8.5 Matrix ....................

  • Page 6: Quick Start Guide

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 4.2.4 UDP to RS232/RS485 (V2 protocol only) ..........57 4.2.4 RS232/RS485 to UDP (V2 protocol only) ..........58 4.2.5 Central Control Response control ON/OFF (V2 protocol only): ....59 4.2.6 Feedback and response to SET or GET commands (V1 and V2) ..... 59 4.3 Appendix A: Module ID ..................

  • Page 7: Product Introduction

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 1. Product Introduction Thanks for choosing the TiGHT AV DSP-AEC-1410. The DSP-AEC-1410 is an audio signal processing unit with analog and a USB interface for computer audio. The unit is configured and controlled from a Windows application that presents an easy-to-use GUI.

  • Page 8: Customer Service

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 1.3 Customer Service TiGHT AV provide a limited warranty for the product within five years counting from date of purchase (The purchase invoice shall prevail). For more information see TiGHT AV general Warranty Statement at or just scan the QR-code.
  • Page 9 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Audio Performance Input Gain 0 - 48dB in 3dB steps Frequency Response ±0.2dB (20Hz~20KHz) Maximum Level +18dBu THD + Noise 0.003%@4dBu Input Dynamic Range 110dB Output Dynamic Range 112dB Background Noise (A-weighted) -91dB Common Mode Rejection Ratio @60Hz 80dB...

  • Page 10: Front Panel Features

    6. GPIO: 8- channel General Purpose I/O. The function of the GPIO pins can be configured in the GPIO Settings section of the TiGHT AV DSP software. GPIO Input: The port value is considered “low” when voltage level is less than 0.3VDC and considered “high”...
  • Page 11 Audio DSP with AEC 12-in/8-out analog and 2x2 USB GPIO Output: When the port is triggered ´”high” it will output 5VDC @ 100mA. When triggered “low” it will equal ground. Note: Maximum combined current if all 8GPIO is configured as outputs is 500mA.

  • Page 12: Signal Flow Chart

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 1.6 Signal Flow Chart...

  • Page 13: Dsp Software

    Double click the downloaded file and install by following the instructions on the screen. After installation is complete, launch the software by clicking the TiGHT AV DSP software icon. Wait for the software to launch, may take 1-15s to start.

  • Page 14: File Menu

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB To connect to the DSP click on ”Device List” and choose your DSP from the list. Then click ”Connect”. The software will automatically scan the network for available DSPs. The software will be able to find DSPs even if they are not configured with an IP address according to the computer network configurations if the DSP can be reached.

  • Page 15: Settings Menu

    Import All: Imports a snapshot file stored on a computer. Note: Unit will disconnect after import is done and users need to connect again. 2.3.2 Settings Menu For the Device Settings Menu to be accessible the software and DSP-AEC-1410 must be connected. 2.3.2.1 Device Settings Device Name: Set the name of the device and the name will display anywhere the device is addressed.

  • Page 16: Gpio Settings

    Cancel: Will close the window and no changes are saved. 2.3.2.2 GPIO Settings The DSP-AEC-1410 has 8 GPIOs that allows for independent input or output configuration. Input GPIOs control options: Preset, Route, Gain, Mute/Unmute, Command, and Analogue To Digital Gain.
  • Page 17 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Channel: 8 channel buttons select the channel to be configured. Direction: Sets either input, GPI, or output, GPO for selected channel. Output and Input selections has different control options. Control type (Inputs only): Selects the control option type for input, GPI. Preset: Changes the preset value when triggered.
  • Page 18 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Mute/Unmute: Will mute selected channel when the trigger is active and unmute the channel when it is inactive. Trigger type: “High Level Trigger” will mute the channel when the voltage is above the threshold. “Low Level Trigger”...

  • Page 19: Group Settings

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Level: Trigger event is initiated when channel level exceeds a set level threshold. Output type: “Output low level” will set the channel pin to ground. “Output high level” will set the channel pin to +5VDC.

  • Page 20: Preset Name

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB The relationship between groups and link: The channel participating in a group will not participate in LINK, which means the group’s priority is higher than LINK. The difference between groups and LINK is that groups can only control channel gain and mute, while LINK includes all parameters in the channel.

  • Page 21: Panel Setting

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.2.5 Panel Setting Panel configuration page for button and OLED panels. Use network cables to connect multiple physical panels with DSP devices via the network switch(es). Offline devices: Panels can be configured offline for later upload on-site commissioning.

  • Page 22: User Interface

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Edit panel: The OLED panel consists of a 1.3” OLED screen and a knob. The panel functions are added in a list, and a single encoder is used for selecting the function and parameter adjustment.
  • Page 23 Audio DSP with AEC 12-in/8-out analog and 2x2 USB New Page: Opens a new empty design page. Save: Saves the user´s current design. Open: Allows the user to open a previously created panel design. Template: Allows the user to choose from specific templates based on common hand-held devices.

  • Page 24: Useradmin

    For more information and details of the User Interface, please watch the User Interface tutorial video series on www.TiGHTAV.com or the TiGHT AV YouTube Channel. 2.3.2.8 UserAdmin Allows for setting up user and admin accounts with password. When activating this feature different users can access the DSP and the ability to lock the software by double clicking the padlock symbol.

  • Page 25: Editpassword

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.2.9 EditPassword If UserAdmin feature is activated a EditPassword menu item emerges, and this selection will allow for the current user to change password. 2.3.3 Help Menu 2.3.3.1 About In this window the software version number and DSP model are displayed. 2.3.3.2 Support Brings up the device manual pdf.

  • Page 26: Theme Menu

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.4 Theme Menu Switch between using Light Mode and Dark mode GUI at user´s preference. 2.3.4.1 Light Mode Light Mode is changing the GUI to using a white and blue color GUI. 2.3.4.2 Dark Mode Dark Mode is changing the GUI to using a black and teal color GUI.

  • Page 27: Device List

    Device IP address: Displays the units IP address, this can be changed in the Settings Menu, Device Settings option. Version: Displays the units current version. Connect / Disconnect: When the DSP-AEC-1410 is on the same network as your computer running the software the button will be available. Click on the button to connect to your device.

  • Page 28: Top Right Settings

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.6 Top Right Settings 1. Reset to default: Resets the configuration to the chosen default preset set in the Settings Menu - Device Setting window. 2. Restore Factory Settings: Reverts the configuration to the factory settings. 3.

  • Page 29: Processing Modules Slots

    2.3.7.1 Processing modules slots The DSP-AEC-1410 has 6 available slots for the input channels and 5 available slots for output channels processing modules. The first slot “Input Source” is fixed for the input channels and the last slot “Output Setting”...

  • Page 30: Module Tabs

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Note: when the CPU displays more than a 100 this will turn red, this time the resource cannot be uploaded to the host and needs to be re-edited to reduce processing power. This can be done by deactivating some modules or by choosing a less demanding module.

  • Page 31: Automixer

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.8.2 AutoMixer In the AutoMixer tab all input channels are shown with a respective fader control and mute option and routing option. Clicking on ”AutoMixer” button for a certain channel will route the audio through the automixer. Users can select between a gainsharing Automixer or a gating Automixer.
  • Page 32 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Gain(db): Determines the desired target gain for the output of the automixer module. Slope: Sets the aggression of the gain sharing- Low Slope settings cause the module to act just like a conventional mixer. High slope causes the inputs to attenuate more deeply for inactive sources, very much like a gate module.
  • Page 33 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Gating Automixer: A more traditional automixer. A gating automixer uses noise gates to only allow active channels to pass through and prevent inactive channels to contribute to the overall mix. Gain(dB): Determines the desired target gain for the output of the automixer module. Hold(ms): Sets the amount of time a channel remains open after the signal on that channel falls below the Noise Threshold.

  • Page 34: Aec (Acoustic Echo Cancellation)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Priority: Adjusts the level of priority for the selected channel. This value feeds into the automixer engine and may influence the automatic gain adjustments decisions. Mute: Mute the selected channel. The Mute function on the channel is after the input to the automixer engines.

  • Page 35: Ans (Automatic Noise Suppression)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.8.4 ANS (Automatic Noise Suppression) The Automatic Noise Suppression can remove noise from the audio when detected. Because of an algorithm that distinguishes human voice from other sounds, such as constant background noise, it can detect the noise and subtract it from the audio signal.

  • Page 36: Meters

    2.3.8.7 Camera The DSP-AEC-1410 features a camera tracking system. There are two sections to the Camera module, the left part is tied to the Automatic Voice Tracking feature and the right part is tied to Manual Camera control.
  • Page 37 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Voice Tracking can be created from any input channel on the DSP. When the signal level on the monitored inputs exceeds a set threshold value a camera preset can be sent to a PTZ camera. Automatic Voice Tracking Threshold (dB): Sets tracking activation threshold.
  • Page 38 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Serial Type: RS-232 or RS-485. Command Field: Enter the command string to be sent as custom command. Send: Sends the custom command defined in Command Field. Enable: The selected channel is participating in Automatic Voice Tracking module and a custom command will be sent out upon trigger.

  • Page 39: Channel Processing Modules

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9 Channel Processing Modules The DSP-AEC-1410 software is designed to be flexible and includes a wide range of modules, each providing a unique function configurable per input or output channel. 2.3.9.1 Input Source The Input Source module is a fixed module on every input channel.

  • Page 40: Expander (Inputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.2 Expander (Inputs) The Expander module is a helpful dynamic processing tool to increase the dynamic range of an audio signal. An expander engages when the signal drops below a defined threshold. An expander can be seen as a Noise Gate but with more nuanced settings.

  • Page 41: Compressor (Inputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.3 Compressor (Inputs) A compressor reduces the amount of dynamic range in an audio signal. Dynamic range is the difference between the loudest and the quietest part of a signal. A compressor reduces this range by attenuating the louder parts of the signal and boosting the quieter parts of the signal.

  • Page 42: Agc (Automatic Gain Control) (Inputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.4 AGC (Automatic Gain Control) (Inputs) Automatic Gain Control maintains the dynamic range while automatically adjusting the audio signal level. The goal of an AGC is to normalize the signal level while maintaining dynamic range.

  • Page 43: Peq (Parametric Equalizer)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.5 PEQ (Parametric Equalizer) A Parametric Equalizer is an adjustable filter to attenuate or boost a signal frequency content of an audio signal. The PEQ allows for multiple frequency bands, or filters, with adjustable parameters.

  • Page 44: Afs (Adaptive Feedback Suppression) (Inputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.6 AFS (Adaptive Feedback Suppression) (Inputs) The Feedback Suppression is a module on each input channel. The module detects fundamentals in the audio signal that causes feedback and adds notch filters to respected parts of the signal that causes feedback.

  • Page 45: Geq (Graphical Equalizer)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.7 GEQ (Graphical Equalizer) Like a parametric equalizer, a graphic equalizer is an adjustable filter used to shape the frequency content of a signal. Graphic equalizers, however, are much simpler. Unlike parametric equalizers, graphic equalizers have a fixed frequency and Q (bandwidth).

  • Page 46: Gate (Inputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.8 Gate (Inputs) The primary purpose of a Noise Gate is to attenuate signals below a set threshold and to allow normal signals to pass when the signal level is above the set threshold. The Gate also controls how quickly the signal is allowed to pass, how long the Gate remains open, and how quickly the Gate opens fully again.

  • Page 47: Ducker (Inputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.9 Ducker (Inputs) A Ducker is a processing module that reduces the volume of one audio source based on the presence of another. When the volume of the reference audio signal is greater than the specified threshold, the volume of the specified channel will be attenuated.

  • Page 48: Anc (Ambient Noise Compensation) (Inputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.10 ANC (Ambient Noise Compensation) (Inputs) ANC, or ambient noise compensation, automatically modifies the channel's level to account for background noise in the area. This is accomplished via a complex algorithm that utilizes dedicated “listening” microphone or microphones to pick up background noise and analyse it.

  • Page 49: Filter (Outputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.10 Filter (Outputs) Each output channel provides a band-pass filter module which consists of a high- pass filter (HPF) also referred to as a “low-cut filter” and a low-pass filter (LPF) also referred to as a “high-cut filter”.

  • Page 50: Delay (Outputs)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 2.3.9.11 Delay (Outputs) The delay module applies delay to a selected output channel. Its main purpose is to adjust time alignment. Milliseconds, Meters and Feet: These parameters are interlinked, the display the same delay time measured in three distinct units.

  • Page 51: Output Setting

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Threshold(db): If a signal pass above the set threshold the Limiter will be engaged. Attack(ms): Attack time, sets the time for the Limiter to engage signal exceeds the set threshold. Release(ms): Release time refers to the time it takes for the Limiter to disengage after the signal falls below the set threshold.

  • Page 52: Usb Soundcard

    MAC using generic HID audio. When connected to a computer via USB, the driver will appear as a ”TiGHT AV DSP” in your computer settings. The USB Soundcard is built into the hardware and can be used for playback or recording.

  • Page 53: Overview Of Dante Controller

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB View Dante-enabled device clock and network settings.  Route audio between these devices and view the status of existing audio routes.  Connect to Dante Domain Manager to control enrolled devices. ...
  • Page 54 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Multicast Flow: Click any device to enter Device View page. Click on “Create a new multicast flow”-button as below. Select the input channels that should be added to this multicast flow.
  • Page 55 Audio DSP with AEC 12-in/8-out analog and 2x2 USB To delete a multicast flow, in “Device View” select “Transmit” tab and select the flow that should be deleted. Then press “Delete” to delete the multicast flow and disable multicast transmission. Device Config: Select the “Device Config”...

  • Page 56: Control

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 4. Control 4.1 External Control Programmer External control programmer supports UDP and RS232 and controls protocols covering all controls parameters of processor, including parameter controls, parameter acquisition and preset calling. When UDP controls are used, the default port is 50000. Ports can be set in ”Device Setting”...

  • Page 57: V2 Protocol

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Data Bytes 5-12: All using 2 bytes in little endian format. Byte 5~6 Byte 7~8 Byte 9~10 Byte 11~12 Module ID Parameter Type Parameter 1 Parameter 2 Byte 1 - Fixed start: B3. Byte 2 - Message type: SET= 21, GET =22 and PRESET =13.

  • Page 58: Preset Structure (V1 And V2 Protocol)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Byte 4 - Version number: V1 = 00 and V2 = 01. Data bytes 5-72 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9~72 Parameter Input/Output Start Channel End Channel Parameter Type Value Output = 01...

  • Page 59: Rs232/Rs485 To Udp (V2 Protocol Only)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Control Type: Data Length Reserved Reserved Data Bytes RS232 = 02 RS485 =03 Byte 5 - Control Type: 02 = RS232, and 03= RS485. Byte 6 - The data length of byte 6 refers to the data length in bytes that shall be sent via RS232/485.

  • Page 60: Central Control Response Control On/Off (V2 Protocol Only)

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB Note: Baudrate for RS232 and RS485 is set globally by software in “Device Settings”. 4.2.5 Central Control Response control ON/OFF (V2 protocol only): Byte 1 Byte 2 Byte 3 Byte 4 Byte 5~9 Fixed Fixed...

  • Page 61: Appendix A: Module Id

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 4.3 Appendix A: Module ID Module: Input Source Input Channel 1-32 - 1 module (Default Expander) 1~32 Input Channel 1-32 - 2 module (Default Compressor) 33~64 Input Channel 1-32 - 3 module (Default AGC) 65~95 Input Channel 1-32 - 4...

  • Page 62: Appendix B: Module Parameters

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 4.4 Appendix B: Module Parameters Param Parameter 1 Parameter 2 Module: eter Description (Value) (Value) Type (-)72dB to 12dB in Input channel 1 ~ steps of 0,01dB => Input Gain 14 => Values: 0 ~ Values: -7200 ~ 1200 Input channel 1 ~...
  • Page 63 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Link CH3 and CH4 Link CH5 and CH6 Link CH7 and CH8 Link CH9 and CH10 = 9 Link CH11 and CH12 = 11 Link CH13 and CH14 = 13 Input channel 1 ~ Channel Level 14 =>...
  • Page 64 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Values: -2400 ~ 1800 ON = 1 12 Bands => Reset Values: 0 ~ 11 OFF=0 ON = 0 Global Switch OFF=1 0dB to 20dB in Max Gain steps of 0,01dB => Values: 0 ~ 2000 (-)20dB to 0dB in Min Gain...
  • Page 65 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Output channel 1 ~ ON = 1 Invert Phase 10 => Values: 0 ~ OFF= 0 +3dB = 300 +2dB = 200 Output channel 1 ~ +1dB = 100 Increase/decre 10 => Values: 0 ~ ase by step -1dB = -100 -2dB = -200...
  • Page 66 Audio DSP with AEC 12-in/8-out analog and 2x2 USB 1ms to 500ms in Attack Time steps of 1ms => (ms) Values 1 ~ 500 1ms to 10 000ms Release Time in steps of 1ms => (ms) Values 1 ~ 10 000 (-)72dB to 6dB in Gain steps of 0,01dB =>...
  • Page 67 Audio DSP with AEC 12-in/8-out analog and 2x2 USB 20Hz to 20 000Hz Low Pass in steps of 1Hz => Frequency Values: 20 ~ 20 (-)15dB to 15dB in steps of 0,01dB => Low Pass Gain Values: -1500 ~ 1500 Gating Auto ON = 1 Global Switch...
  • Page 68 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Channel 1 ~ 14 => ON = 1 Default Values: 0 ~ 13 OFF= 0 (-)90dB to (-)24dB Noise in steps of 0,01dB Threshold => Values: -9000 ~ -2400 Gain Sharing ON = 1 Global Switch Auto Mixer...
  • Page 69 Audio DSP with AEC 12-in/8-out analog and 2x2 USB (-)36dB to 0dB in Panic steps of 0,01dB => Threshold (dB) Values: -3600 ~ 0 (-)96dB to -24dB in Feedback steps of 0,01dB => Threshold (dB) Values: -9600 ~ - 2400 Auto Gain ON = 0 Switch...
  • Page 70 Audio DSP with AEC 12-in/8-out analog and 2x2 USB AutoMixer = 14 Remote Source CH 1 = 515 CH 2 = 516 CH 3 = 517 CH 4 = 518 CH 5 = 519 CH 6 = 520 CH 7 = 521 CH 8 = 522 CH 9 = 523 CH 10 = 524...
  • Page 71 Audio DSP with AEC 12-in/8-out analog and 2x2 USB 10ms to 500ms in Attack steps of 1ms => Values 10 ~ 500 10ms to 10 000ms in steps of 1ms => Hold Values 10 ~ 10 10ms to 17 431ms in steps of 1ms =>...

  • Page 72: Appendix C, Command Structure Examples

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 4.5 Appendix C, Command Structure Examples 4.5.1 V1 examples SET examples 1. Set input Gain to -3dB for input 4. Structure Command Comments Byte 1 : Fixed start B3 Fixed Byte 2: Message type: SET= 21, GET =22 PRESET =13 Byte 3: Fixed to AB Fixed...
  • Page 73 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Byte 7-8: Parameter type: Appendix B: 0A 00 Appendix B Input source Gain Module Parameter Types (1). = 10 gets 0A 00 in little endian format Byte 9-10: Parameter 1 01 00 Inputs starts counting at 0 = input 1 so input 2 gets value 1 and in little endian 01 00...
  • Page 74 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Byte 4: Version number: V1 = 00 and V2 =01. Version 1 Appendix A, Echo Cancellation Byte 5-6: Module ID: See Appendix A: = 163 gets A3 00 in little Module ID in manual. A3 00 endian format Appendix B Echo Cancellation...
  • Page 75 Audio DSP with AEC 12-in/8-out analog and 2x2 USB Byte 4: Version number: V1 = 00 and V2 =01. Version 1 Appendix A, Output ID = 295 Byte 5-6: Module ID: See Appendix A: gets 27 01 in little endian Module ID in manual.

  • Page 76: V2 Examples

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 4.5.2 V2 examples SET example: 1. SET Input Mute CH1-CH4 Structure Command Comments Byte 1 : Fixed start B3 Fixed Byte 2: Message type: SET= 21, GET =22 and PRESET =13 Byte 3: Fixed to AB (any will actually do but we set it to AB) Fixed...

  • Page 77: Environment And Recycle Information

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB CH2 = 18 FC (little endian) = -1000 > Gain = -10dB CH2 = 50 FB (little endian) = -1200 > Gain = -12dB RS232 to UDP example: 1. Send command “HELLO DSP” to 192.168.40.159 on UDP port 50 000.

  • Page 78: Packaging Recycling Information

    Audio DSP with AEC 12-in/8-out analog and 2x2 USB 5.2 Packaging recycling information Note: This manual is recycled as paper (mixed paper and card).
