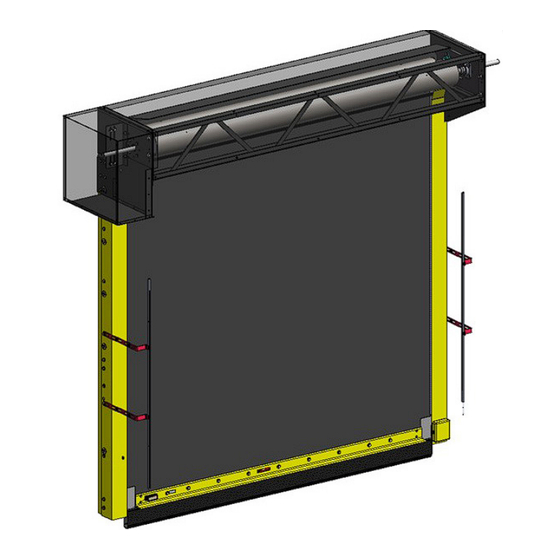

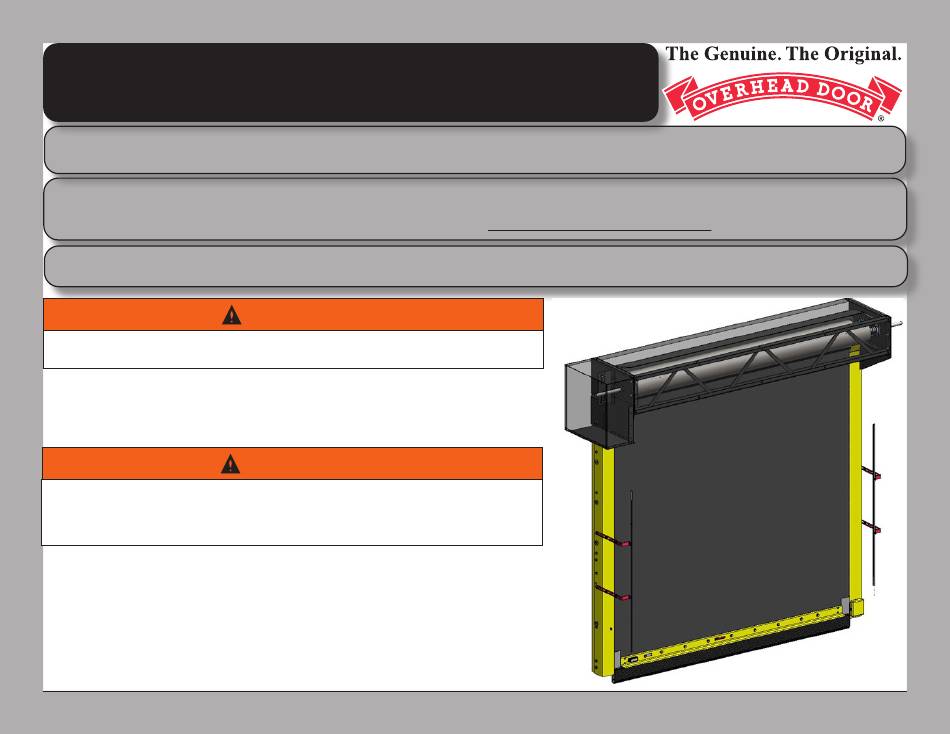

LIGHT CURTAIN INSTRUCTIONS
FOR RAPIDFLEX MODELS 990, 991, 992, 993, 994, AND 995
This installation manual provides a trained door technician information required to install light curtains.
Refer to the Door Installation Instructions for additional safety warnings and precautions and as a reference for any items that are not
This manual is intended ONLY for professional use by a trained door systems technician.
FOLLOW THE STANDARD WORK BELOW WHEN INSTALLING THE LIGHT
CURTAINS. FAILURE TO DO SO MAY RESULT IN SEVERE OR FATAL INJURY.
- Refer to your Door Installation Instructions for additional safety warnings and
precautions. Manual may also be used as a reference for any items that are not
addressed by this document.
- Door should be in the fully closed position for this project.
YOUR SAFETY AND THE SAFETY OF OTHERS DEPENDS ON YOU READING
THE INFORMATION IN THIS MANUAL. IF YOU HAVE ANY QUESTIONS OR
DO NOT UNDERSTAND THE INFORMATION PRESENTED, CALL TECHNICAL
SUPPORT AT 1-800-929-4692 (OPTION 2).
Copyright 2023 Overhead Door Corporation
©
READ COMPLETE INSTRUCTIONS BEFORE PROCEEDING WITH REPAIR.
addressed by this document.
Installation Manuals can be accessed at https://connect.overheaddoor.com.
WARNING
WARNING
825708-0001
Rev- 07/28/2023
1
Advertisement
Table of Contents
Related Manuals for Overhead door RAPIDFLEX 990
Summary of Contents for Overhead door RAPIDFLEX 990
- Page 1 YOUR SAFETY AND THE SAFETY OF OTHERS DEPENDS ON YOU READING THE INFORMATION IN THIS MANUAL. IF YOU HAVE ANY QUESTIONS OR DO NOT UNDERSTAND THE INFORMATION PRESENTED, CALL TECHNICAL SUPPORT AT 1-800-929-4692 (OPTION 2). 825708-0001 Rev- 07/28/2023 Copyright 2023 Overhead Door Corporation ©...
- Page 2 Turn OFF electrical power before removing Control Panel or motor cover. When replacing Control Panel cover make sure wires are NOT pinched or near moving parts. CAN CAUSE SERIOUS Operator must be electrically grounded. INJURY OR DEATH ELECTRICAL SHOCK 825708-0001 Rev- 07/28/2023 Copyright 2023 Overhead Door Corporation ©...
- Page 3 - Turn power off to prevent the door moving unexpectedly while servicing. - See Figure1.0 and Figure 2.0 CLOSE UP OF ASSEMBLED ASSEMBLED BRACKET BRACKET DOOR OPENING Figure 2.0 Figure 1.0 825708-0001 Rev- 07/28/2023 Copyright 2023 Overhead Door Corporation ©...
- Page 4 SECTION 3 - CONNECTOR WIRING CONNECTING RAPID FLEX DOORS TRANSMITTER RECEIVER CONNECTIONS: CONNECTIONS: Brown +24V Brown +24V White Transmitter White Receiver White White Black Programmable Black N/C input Blue 0V Blue 0V 825708-0001 Rev- 07/28/2023 Copyright 2023 Overhead Door Corporation ©...
- Page 5 - Any unused programmable input may be used. Refer to door installation manual for programming instructions. - The white sync wires need to be connected to each other with a wire nut (500229-0001) to operate correctly. They do not connect to the controller. 825708-0001 Rev- 07/28/2023 Copyright 2023 Overhead Door Corporation ©...
- Page 6 3. Test the reversing function by closing the door and placing an object in the light curtain. The door will reverse and open fully. 825708-0001 Rev- 07/28/2023 Copyright 2023 Overhead Door Corporation ©...
- Page 7 SECTION 6 - BEAM CONFIGURATION Appendix 1, Beam Pattern 6FT SG-17 3FT SG-17 825708-0001 Rev- 07/28/2023 Copyright 2023 Overhead Door Corporation ©...
