IRIS PERFORMANCE Haisen HD05R User Manual

Quick programming
"Scene" button brings back factory
default program
1. Press on
2. Press on by pointing the
luminaire to be programmed with
the remote control
Note: it will always be possible to change parameters afterwards
Description of main functions

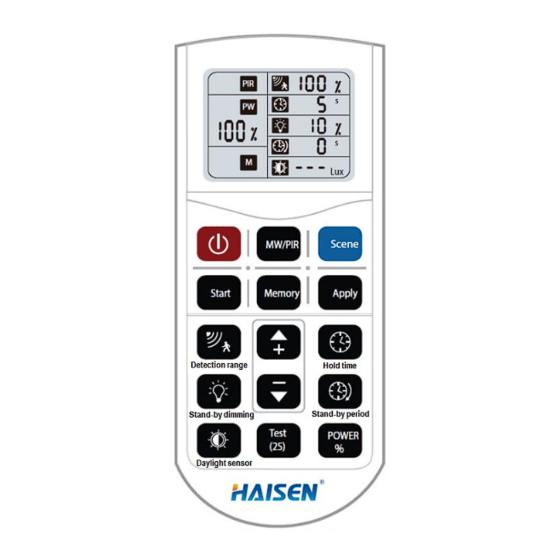

Remote controller Haisen HD05R
Default
setting
Scene 100%
To turn On/Off the luminaire or deactivate the motion sensor function
To switch between microwave technology and
PIR (Passive InfraRed)
Activates detector/programming mode and restores factory default
settings
Buttons for saving the chosen settings and applying them to the
luminaires within reach of the remote
Motion sensor detection area
25% = narrow; 100% = wide
Stand-by period dim level
Light level during the stand-by period
Ambient light detection
Holding period
Time to first reduction in light level
Stand-by period
Time before the luminaire turns off
To increase or reduce the lighting level of the luminaire when a
person is present
Allows you to increase or decrease the values
Note: « Test (2s) key is not used
5s 0s 10%
User Manual
(Iris p/n: RC-HD05R)
Application
disabl
General
e
Popular: MW
Popular: from 30% to 50%
Normally:
disable
Popular : 30 min
Populaire : + ∞
( never turns off)
