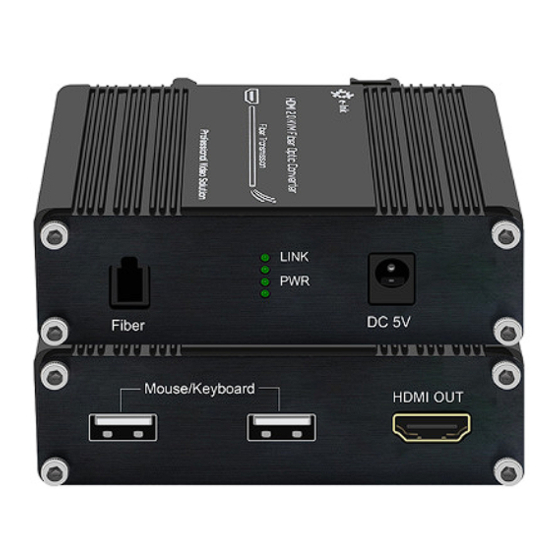

- Page 1 E-link China Technology Co., Ltd. 4K HDMI 2.0 KVM Optical Transceiver Model: LNK-109KVM User Manual V1.0 www.e-linkchina.com.cn sales@e-linkchina.com.cn...
- Page 2 E-link China Technology Co., Ltd. FEATURES • Supports HDMI Video up to 4Kx2K@60 Resolution • HDMI 2.0 with HDCP Support • DDC CEC HPD Signal Support • No Settings or Adjustments Necessary, Automatically Recognizes HDCP, EDID & CEC • Supports up to 300m Transmission Distance with OM4 multimode fiber •...
- Page 3 E-link China Technology Co., Ltd. Resolution Chroma Subsampling 4K Resolution 1080P Resolution 4:4:4 4K@60Hz 1080P@120Hz 4:2:2 4K@60Hz 1080P@120Hz 4:2:0 4K@60Hz 1080P@120Hz LNK-109KVM System Connections www.e-linkchina.com.cn sales@e-linkchina.com.cn...
- Page 4 4. Connect power to the 5V DC port of Transmitter and Receive. 5. Check LED Indicator and image on Display Screen. LED Indicator LINK Fiber Link Indicator FIBER Power Indicator Package Includes LNK-109KVM-T- (Transmitter, To Video Source) ■ LNK-109KVM-R - (Receiver, To TV/Display) ■ USB cable x 1pcs ■ User’s Manual ■...
