MODEL: PVLS-521
DOUBLE VANTAGE DELUXE
18' TWO MAN LADDERSTAND
Always Wear a Safety Harness with this Product
Practice Using at Ground Level
Weight Limit: 500 lbs.
Tree Size: 9"-18" diameter
Instruction and Safety Manual
W A R N I N G
Every year serious injury or death can occur from hunting related accidents. To ensure your safety, please COMPLETELY read
and follow this safety manual and ALL warning labels BEFORE assembling, installing or utilizing this product.
DO NOT USE THIS PRODUCT BEFORE FULLY UNDERSTANDING ALL SAFETY WARNINGS AND INSTRUCTIONS. IF YOU HAVE
QUESTIONS, ARE UNSURE ABOUT ANY INFORMATION OR NEED ADDITIONAL INFORMATION CONCERNING YOUR PRODUCT,
CONTACT OUR CUSTOMER SERVICE DEPARTMENT AT 1-866-972-6168 OR VISIT WWW.PRIMALTREESTANDS.COM. KEEP
AND MAINTAIN THIS SAFETY AND INSTRUCTION MANUAL IN A SAFE LOCATION FOR FUTURE REFERENCE.
Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120
SAFETY MUST BE YOUR FIRST PRIORITY WITH THIS PRODUCT
©2018 (rev. 3/18)

Advertisement

loading
Need help?

Need help?

Do you have a question about the PVLS-521 and is the answer not in the manual?

Questions and answers

Related Manuals for Primal PVLS-521

Summary of Contents for Primal PVLS-521

  • Page 1 CONTACT OUR CUSTOMER SERVICE DEPARTMENT AT 1-866-972-6168 OR VISIT WWW.PRIMALTREESTANDS.COM. KEEP AND MAINTAIN THIS SAFETY AND INSTRUCTION MANUAL IN A SAFE LOCATION FOR FUTURE REFERENCE. ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 SAFETY MUST BE YOUR FIRST PRIORITY WITH THIS PRODUCT...
  • Page 2 ALWAYS be sure to retighten all bolts BEFORE each new use of treestand. ALWAYS have a minimum of three people present when installing or removing this treestand. ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 3 TREESTAND SAFETY WARNINGS NEVER adjust your stand while in use. Practice the attachment of this treestand at ground level before using in a hunting environment. ALWAYS ensure that you and your treestand are safely secured to a healthy tree. Your tree stand MUST be attached tightly to the tree and secured in place. If the stand is not secure, it may shift while in use, resulting in serious injury or death.

  • Page 4: Proper Care And Maintenance

    • We recommend replacing all hardware/cables/nuts/bolts/clips on your tree stand every two (2) years or sooner if inspection finds it necessary. Use only Primal Vantage approved replacement straps and parts. Use of any other straps or parts, will be viewed as a modification to the product. Any modifica- tion will void the warranties and relieve Primal Vantage from all liabilities.

  • Page 5: Parts List

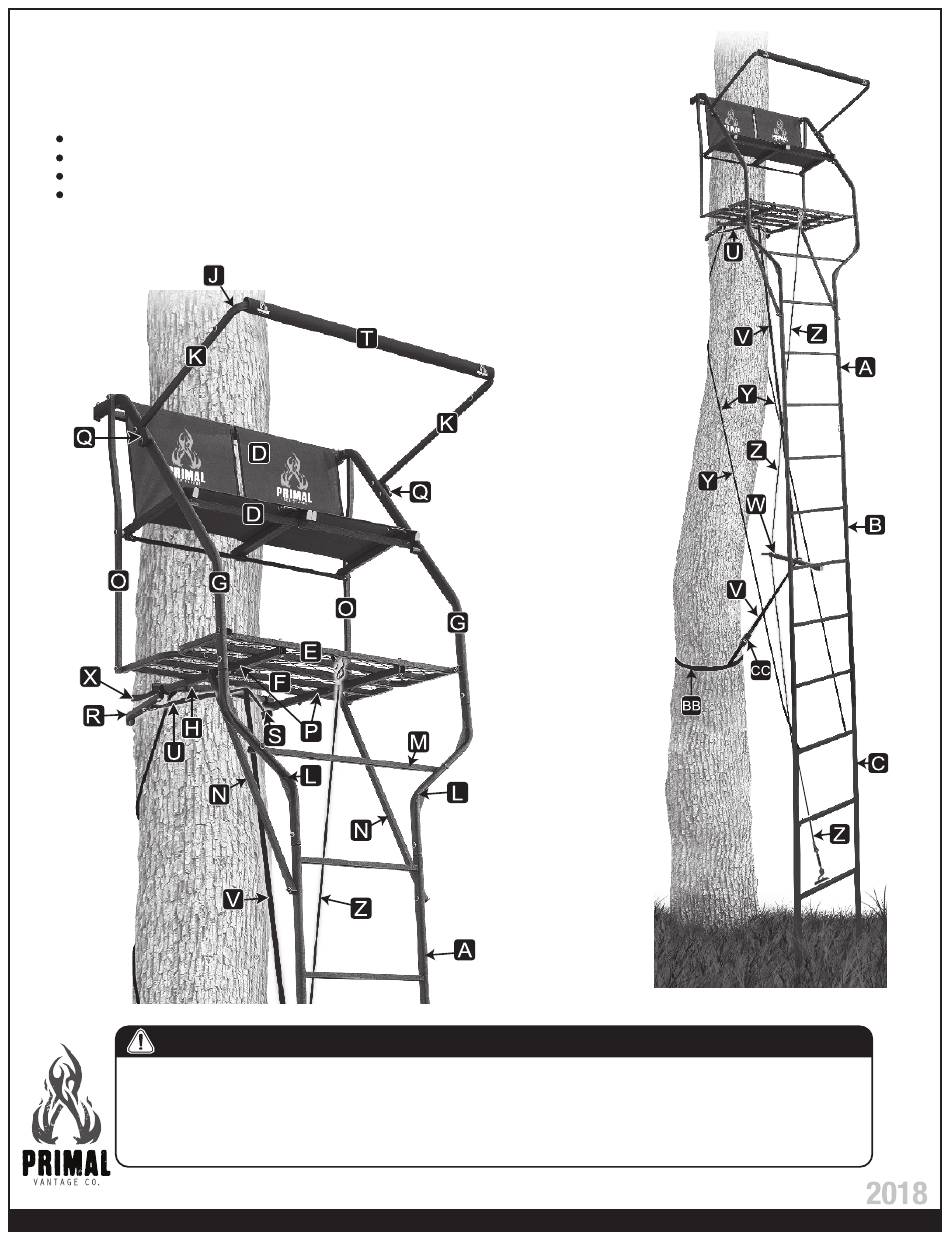

    Left Ladder Jaw (1) Shooting Rail Platform Support Rails (2) Adjustment Brackets (2) Right Ladder Jaw (1) Shooting Rail Cover Pad (1) ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 6 M6 Quickclips (4) Buckle (1) 2 M8x75mm Bolts w/spacers Part # 1877 Tools Required Adjustable Wrench Jaw Assembly Ratchet Strap (1) ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 7 Attach Right Ladder Jaw and Left Ladder to rear ends of Platform Support Rails using 2-M8x75mm bolts with spacers ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 8 2-M8x55mm bolts with 3 washers (Note that these brackets are on the lower of the two holes on each side). ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 9 Vertical Jaw Assembly Strap (as shown Attach Shooting Rail Cover Pad to Shooting above). Rail ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 10 Ladder Yokes Attach Step Rail right and left Ladder Yokes using 2-M6x30mm bolts using 2-M8x75mm bolts ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 11 (as shown above). (See Installation Strap Instructions for correct weaving). ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 12 W A R N I N G MAKE SURE ALL BOLTS ARE TIGHT BEFORE PROCEED- ING TO TRUSS ASSEMBLY ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 13 MODEL: PVLS-521 TRUSS ASSEMBLY INSTRUCTIONS DELUXE 18’ TWO-MAN LADDERSTAND Carefully lay fully assembled Ladder Stand front ladder side down so that the tree attachment side is facing upward. Attach the hooked side of Tension Cable without the tension adjuster to the...

  • Page 14: Installation Instructions

    NOTE: Drawings are for illustration purposes only and may not depict actual product. ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 15 NOTE: Drawings are for illustration purposes only and may not depict actual product. ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 16 DO NOT overtighten. outward even after Jaw Assembly Strap Webbing is fully tightened. See Ratchet Strap Instructions for correct operation. ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 17 NOTE: Drawings are for illustration purposes only and may not depict actual product. ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 18 Insert the strap through the Slot 2 with the teeth. Pull strap to tighten. ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 19 YOU MUST READ AND FOLLOW ALL INSTRUCTIONS PRIOR TO INSTALLATION ©2018 (rev. 3/18) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
