Global Fire Equipment GFE-BCM-5 Installation Manual

Global Fire Equipment // ​ g lobalfire.pt
GFE-BCM-5
GFE-BCM-10

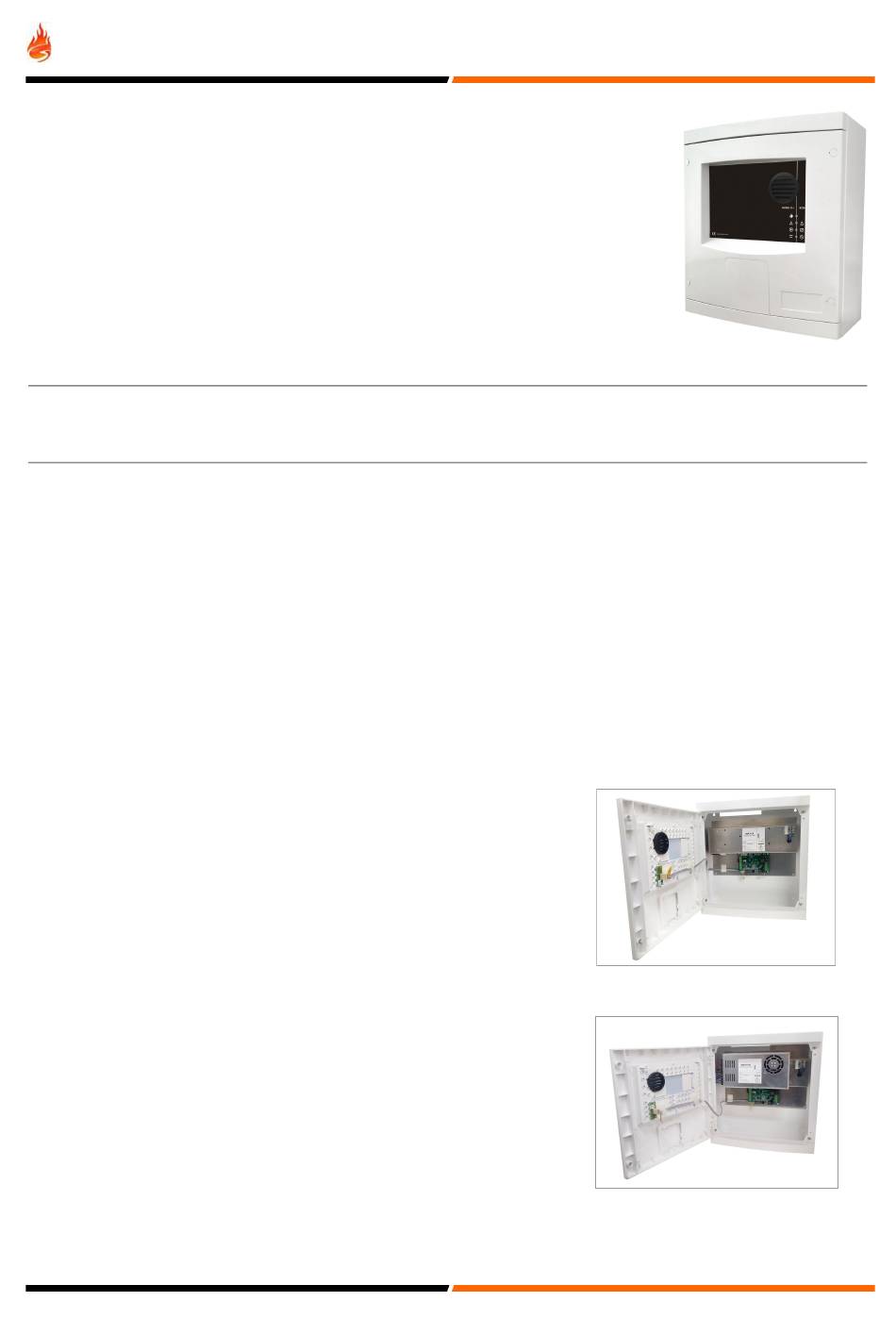

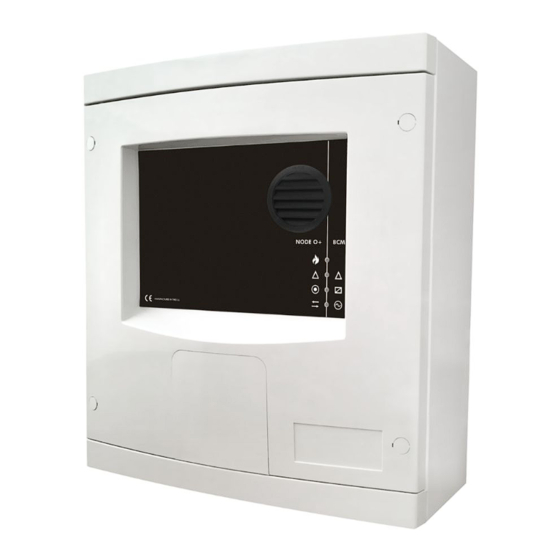

BATTERY CHARGER MONITOR
INSTALLATION MANUAL

INTRODUCTION

This unit is a fully EN54-4 compliant battery charger which also incorporates, in some models, a loop interface that can be
used with all of GFE's addressable panels. It will monitor all fault conditions including: charger fault, charger voltage level,
input voltage supply fault and supply removal. It can be supplied as a standalone module or boxed in an ABS plastic
enclosure, including a 28V DC @ 1.7 or 2.4 Amp PSU. The standalone unit has 10A current rating and is supplied complete
with heat dissipation.
Battery charge is fully monitored and current output controlled and limited to a maximum of 4 Amps. Two auxiliary output
relays are provided, both equipped with a set of changeover contacts. One is used to signal fault conditions. The Output
relay, which is only available for addressable versions, can be used when included in an IO Group.

MAIN FEATURES

● Battery Charger Monitored by Addressable Panel
● Fault Relay Output
● Relay O/P Remotely Controlled by Panel
● Low Battery Voltage Shutdown
● Reverse Polarity Protection
● Battery Charger Current Regulated
● LED indicators: Supply Input, Battery & Charger Fault
● Boxed Unit included PSU and Battery Compartment
● Fully Compliant with EN54-4
ma_gfebcm5&10_010001_en_200717
GFE-BCM-5
GFE-BCM-10
1
