Operating instructions for moisture analysers
UX 3081
UX 3081WQ
2023
Basic information
Intended use
ULTRA X moisture analysers are solely designed to quickly measure moisture and dry matter in solid,
viscous and fluid substances using thermogravimetric analysis. A sample is weighed while being dried
by infra-red heat.

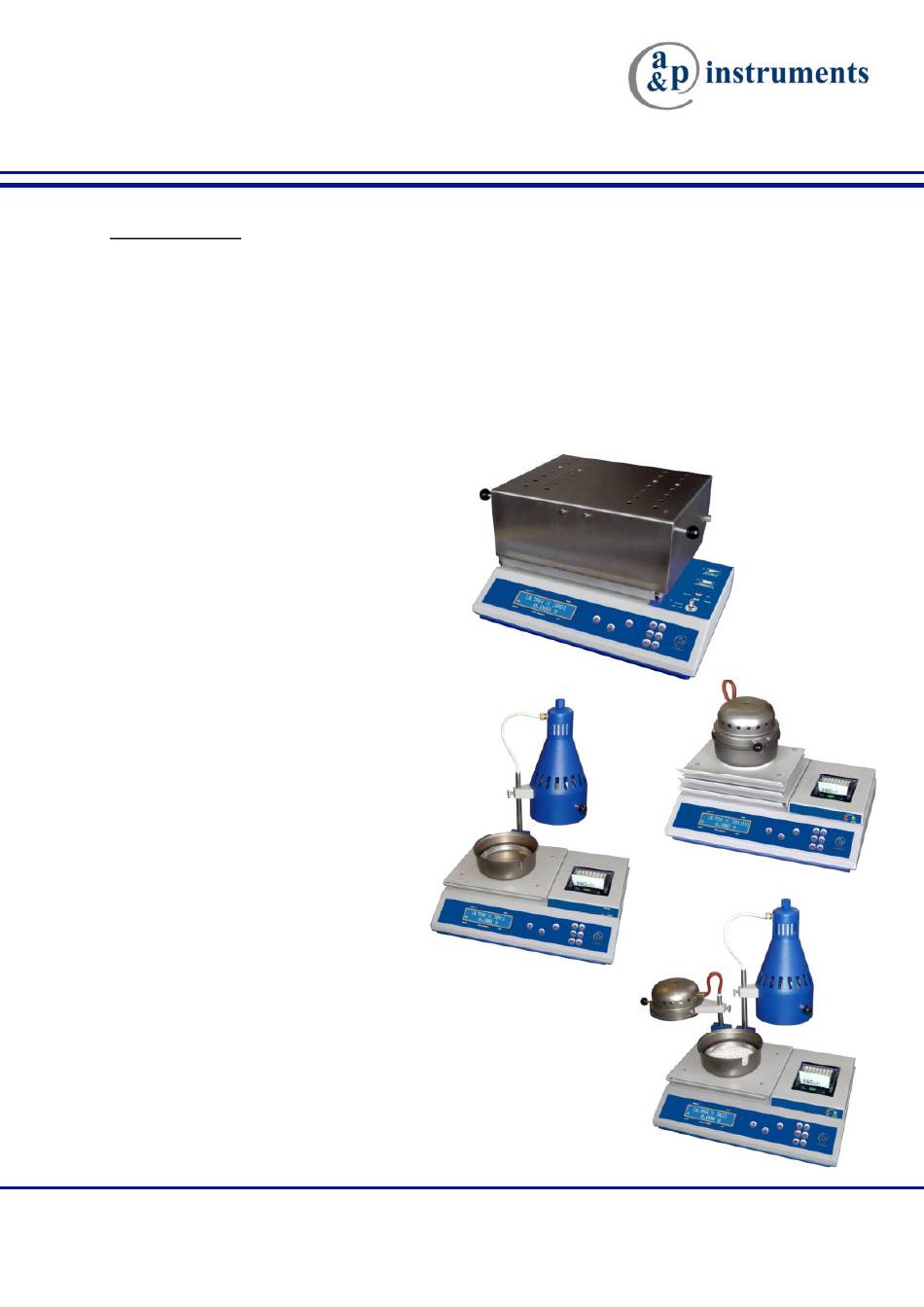

Common features for all ULTRA X devices:
Short measurement time, gentle and even drying of samples, high reproducibility
Automatic or time-controlled measurement shut-off
UX 3081/ 3081WQ
Special device for extra large samples,
e.g. in the chipboard industry
2 temperature-controlled ceramic heaters
Temperature range: 40 – 220 °C/ 300 °C
Stainless steel drying tray 240 x 110 mm
UX 3011/ 3011Q/ 3011HQ
Temperature-controlled infra-red heater 250 W/ 375 W
Temperature range: 40 – 200 °C/ 360 °C/600 °C
Stainless steel drying tray 111 mm diameter

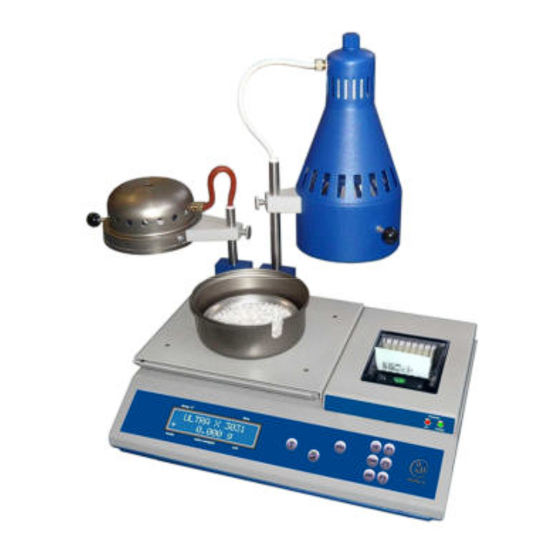

UX 3031
Special device for gypsum industry
2 temperature-controlled heaters for separate measurement of
free and chemically bound moisture in gypsum products
Temperature range: 40 – 360 °C
Stainless steel drying tray 111 mm diameter
a&p instruments, Kluckhofer Weg 61, D-32657 Lemgo, Tel.:05232 97780, Fax.: 977820
E-Mail: info@apinstruments.de, Internet: www.apinstruments.de
Seite 1
