Summary of Contents for Burromax TT100R

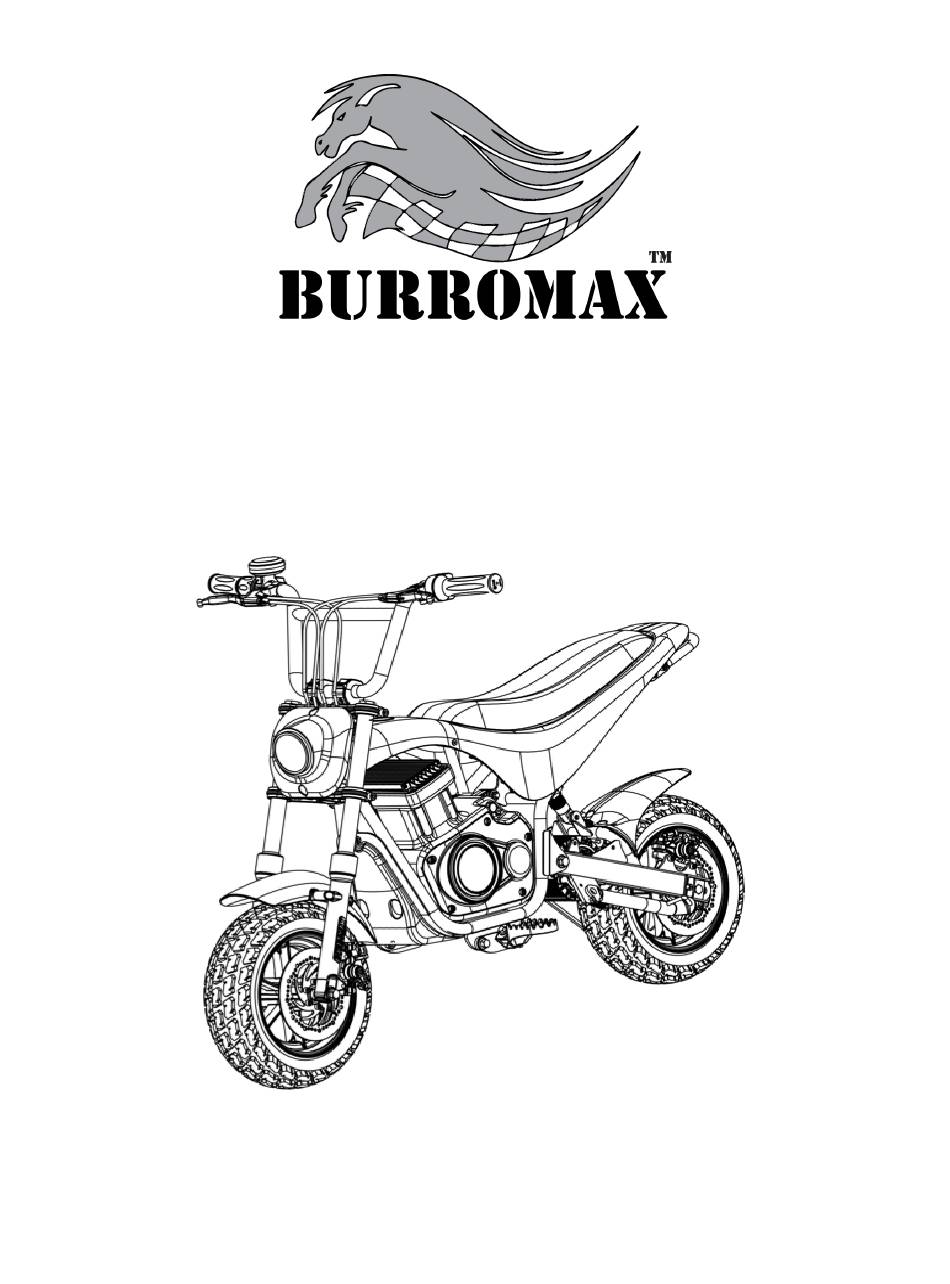

- Page 1 OWNERS MANUAL TT100R MINI BIKE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE RIDING...
-
Page 2: Carton Contents
CARTON CONTENTS Allow up to 30 Min for assembly. Located within top of the packing foam you will find the front fender, rear fender, right and left footrest Check for all parts and hardware before beginning assemblies, handlebar clamps, all hardware and tool kit. assembly. -
Page 3: Brake Levers And Throttle
ATTACHING THE HANDLEBARS AND BRAKE LEVERS AND THROTTLE WIRING Rotate the brake levers into a good riding position and tighten the clamp bolts using a 5mm Allen wrench. Rotate Tools required: 6mm, 5mm, 3mm,2.5mm Allen wrench the throttle to a good operating position and tighten using a 3mm Allen wrench leaving space between the lever Place the handlebars in the lower handlebar clamps mount and the throttle body. -
Page 4: Installing The Front Wheel
INSTALLING THE FRONT WHEEL INSTALLING THE FRONT BRAKE CALIPER Install the front axle into the left fork leg far enough to install the first wheel spacer. Hold the front wheel up with Remove the caliper mounting screws from the brake the brake rotor to the brake caliper side of the front fork caliper or caliper mount bracket on the front fork. -
Page 5: Key Switch Operation
ADJUSTING THE BRAKE CALIPER INSTALLING THE REAR SHOCK After you have tightened the brake mounting bolts, The rear shock is mounted to the top shock mount under squeeze the brake lever a couple times to set the position the seat. Swing the shock down into place and install the of the caliper. -
Page 6: Charging The Battery
110° F and below 32° F can cause damage to the battery. The Burromax Li-ion battery and charger are to be used together. Do not use chargers from other model bikes—USE ONLY Burromax battery chargers. -
Page 7: Modes Of Operation
All Burromax electric bikes are set on saver mode and the hi-low speed button should be in the low position when they are shipped. You should change this setting only when you feel the rider can control the vehicle at higher speeds. -
Page 8: Features And Controls
FEATURES AND CONTROLS... - Page 9 It is up to the end user to know the local laws governing such vehicles CHECKLIST and where they are legal to be ridden. Burromax makes no claim that these bikes are street legal. LOOSE PARTS Riding an electric mini bike can be a hazardous activity.
- Page 10 These bikes were replaced. manufactured for performance and durability but are not 2. Use ONLY Burromax Li-ion Battery Charger impervious to damage. Jumping or other aggressive riding Specific to the TT1000R. can over-stress and damage any product, including this 3.
-
Page 11: Running Time
POWER WASHING WARNINGS downhill rides which can cause the rider to lose control and cause injury or even death. Use care when washing to avoid pointing the water RUNNING TIME streams directly at the electrical components. Avoid pointing the water at the throttle and speedometer, brake handles, and the ends of the motor. -
Page 12: Maintenance
The TT1000R is equipped with cable brake systems front and rear. For assistance on adjusting your brake we To replace or repair the rear tire perform steps 1, 2, 4, 6, recommend going to Youtube: Burromax Channel and 7, 8, 9, 10, location the service video provided. - Page 13 Install the new chain by lacing the chain around Replacing the chain requires removal of a master link. the motor sprocket. Maneuver the chain onto Removing the outer retainer allows this link to be the sprockets on the rear wheel and motor. Pull disassembled and removed.
-
Page 14: Battery Replacement
WARNING: Make sure the power switch is in o position before performing any maintenance. Li-ion battery (1-48v-17.6ah) contains a non-replaceable internal breaker. Only use the Burromax Li-ion battery and Li-ion battery charger together. Do Not attempt to replace this battery with anything other than the OEM battery. -
Page 15: Specifications
80% Charge in 2.5 Hrs. Rear Shock: 160mm Coil Over Hydraulic-Adjustable Wheel: 3.5x8” 6 Spoke Alloy WEIGHT CAPACITY Tire: 90-65-8” Burromax Track Tire Up to 300 lbs. on Flat Pavement/Dirt Brakes: 160mm Mechanical Disc F/R For O Road Riding we recommend 180 lb max... -
Page 16: California Prop 65 Warning
Burromax Limited Warranty If you have defects of quality or workmanship Burromax Burromax does not o er an extended warranty. If you will send you replacement parts free of charge for a have purchased an extended warranty, it must be honored period of 90 days from date of purchase.
