Summary of Contents for Razorweld 8000X

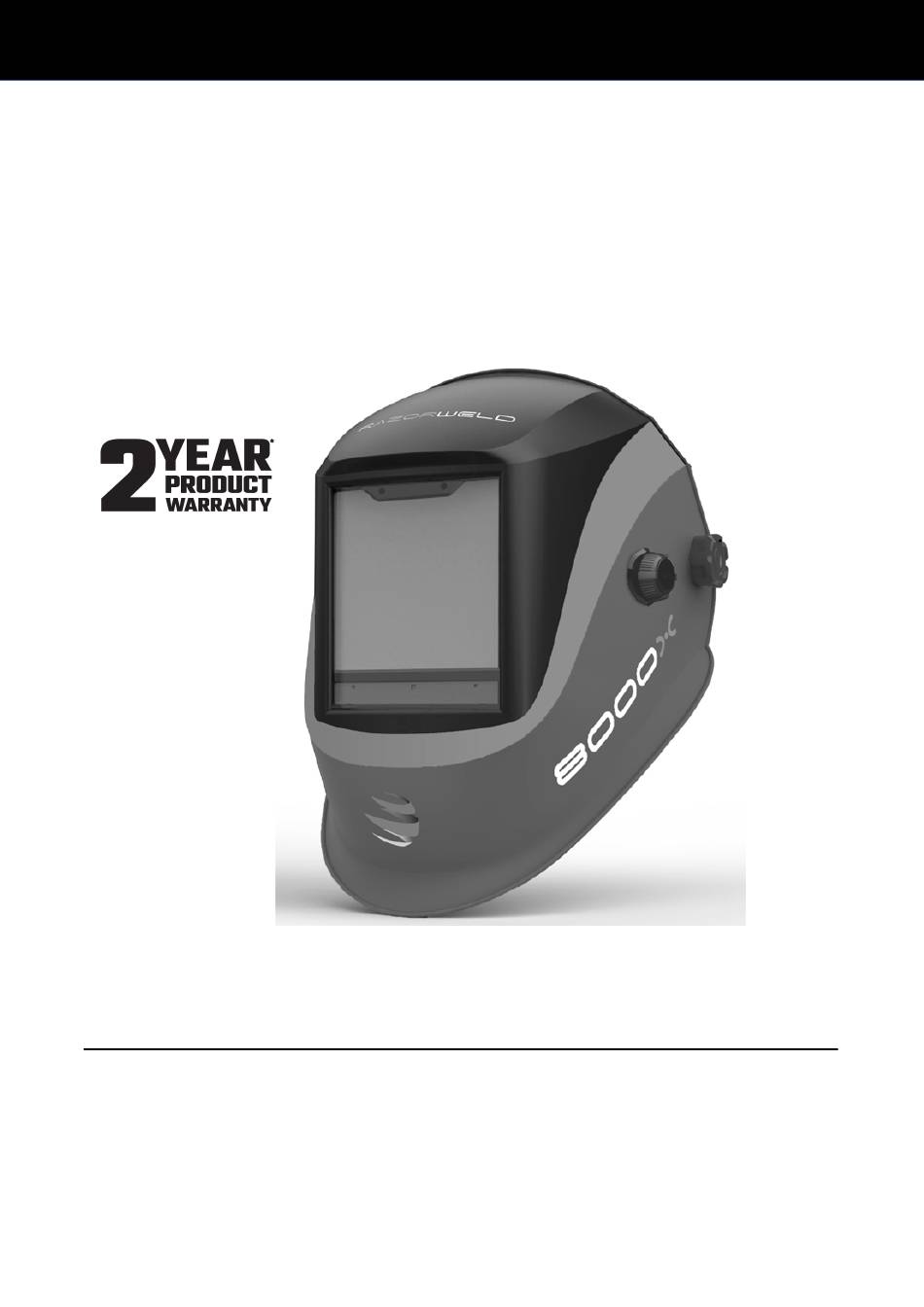

- Page 1 RAZORWELD AUTO-DARKENING HELMET OPERATION MANUAL 8OOOX Model: PLEASE READ AND UNDERSTAND THIS MANUAL BEFORE USING YOUR QUALITY WELDING HELMET...
-
Page 2: Specifications
INTRODUCTION auto-darkening helmet with improved High Definition Filter Optics, delivers a new generation of face and eye protection. Advanced integrated technology, such as LCD, optoelectronics detection, solar power, and microelectronics are coordinated to produce one of the safest, fastest and most reliable auto-darkening helmets available. The auto-darkening helmet not only can efficiently protect operator’s eyes and face from sparks, spatter, and harmful radiation under normal welding conditions,... -
Page 3: Before Use
9. Sensitivity control Adjustable (level 1-level 5 for low-high) 10. Lock shade 11. Auto shade 12. Arc sensors 13. Ambient light sensor 14. Grind function 15. Power Supply Solar Cell, Replaceable Battery(CR2450*2PCS) 16. Operating Temperature -10°C~65°C (14°F~149°F) 17. Inside PC lens 108 x 108 x 1 mm (4.25"... - Page 4 ADF will be adjusted to Grind mode ,Grind LED (position 29) will flash. At Grind mode , pressing and holding the external GRIND button 2 sec (Position 7). ADF will be adjusted to welding mode ,Grind LED (position 29) will stop flash. 4.Sensitivity adjustment Press SENS button (position 26) ,Sensitivity will be adjusted from level 1(low) to level 5(high) circularly.
-
Page 5: Maintenance
TRUE COLOR The auto-darkening helmet is a True Color welding helmet. With advanced True Color technology, the user can weld with improved clarity due to new complex coating technology, grind with precision while in grind mode and finally see the job performance in the light state in the full spectrum of colors. - Page 6 PARTS LIST(Figure 1) 1. Helmet shell 16.Headband tightness 31. battery cover 2. Headgear screw adjusting knob 32. Battery 3. Outer protection lens 17. headgear 33. Shade range switch 4. ADF cradle 18. Block washer adjustment 5. Magnifying lens holder 19. headgear screw 6.
- Page 7 RECOMMENDED SHADE NUMBERS (Table 1)
- Page 8 JASIC TECHNOLOGIES AMERICA INC 25503 74th Ave S, Kent, WA 98032 WWW.RAZORWELD.COM...
