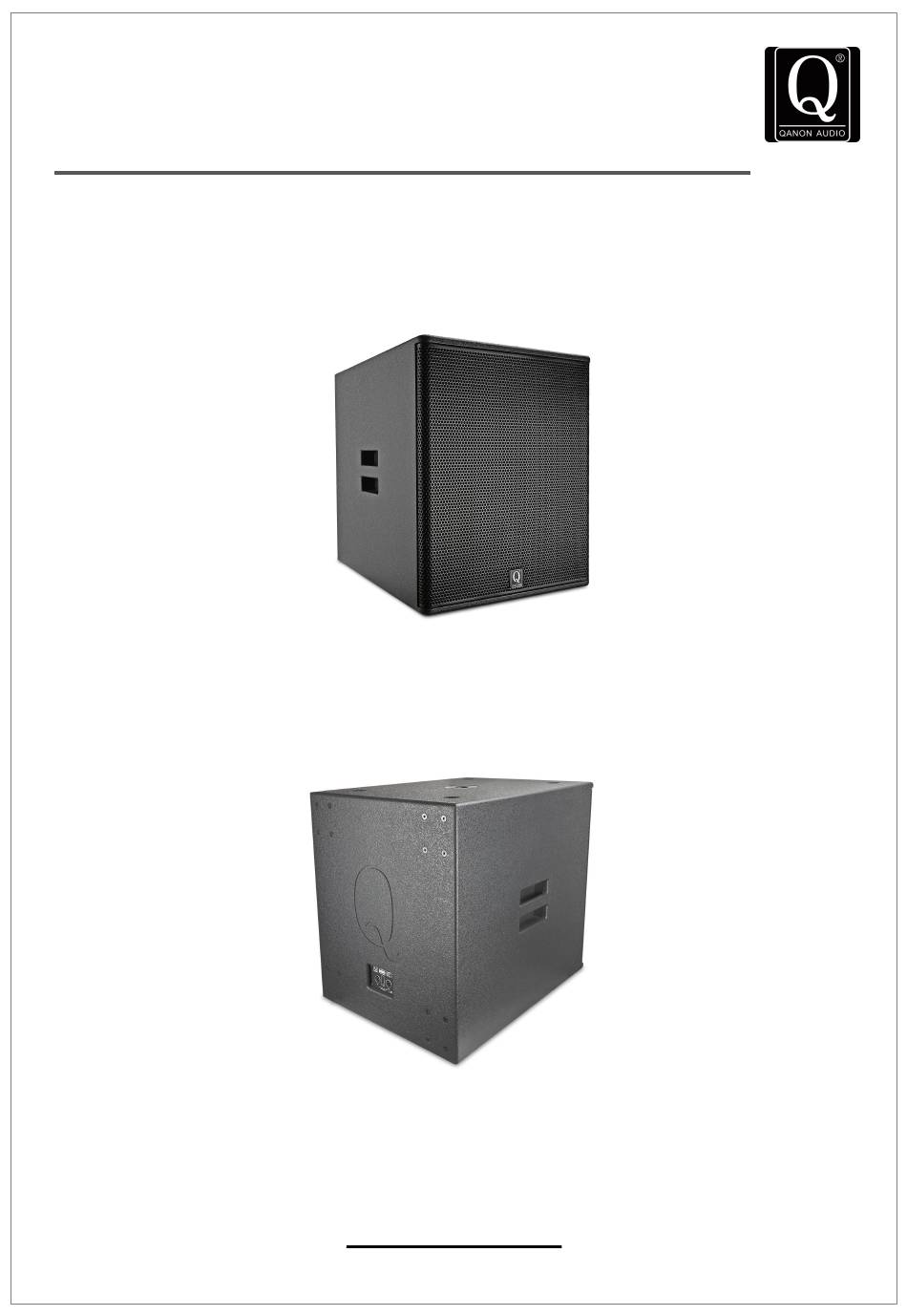

- Page 1 Xiv15 Reference Subwoofer www.qanon-audio. - 1 -...
-
Page 2: Safety Instructions
Do not resell products without this update document Thank you for purchasing QANON AUDIO #Xiv15. The container shall contain - 1 #Xiv15 enclosure. Each QANON AUDIO #product has been tested and inspected before it leaves the factory and should arrive intact. - Page 3 For small rental activities, the Xiv15 and M, TC, and PS ,5 series are quick to deploy and easy to assemble. It can be used as a powerful PA speaker ultra-low frequency system, and its excellent projection capability can meet large space and multi-function hall.
- Page 4 Xiv15 Technical Specification Xiv15 Technical Specification Type Subwoofer Frequency Response(Preset) 30Hz-300Hz(-10dB) Horizontal 360° Drivers LF:1×15" （ Ferrite ） Handling Power (AES) LF:1000W Maximum Peak SPL 135dB/1m Nominal Impedance LF:8Ω Connections 2 x NL4 SpeakOn Pin Connections NL4=LF:+1-1 Height Front 500mm...
- Page 5 Dimensions CAD 600mm [23.64''] 430mm [16.94''] Q ANO N AUDIO www.qanon-audio.com - 5 -...
- Page 6 • Acoustically-challenging rooms • Outdoor restaurant, bar and hotel entertainment areas • Concourses and Theme Parks PA system、Drummer Monitor、X series。 PA system Drummer Monitor QANON AUDIO QANON AUDIO QANON AUDIO Q ANO N AUDIO Q ANO N AUDIO QANON AUDIO...
- Page 7 NL4 4-Pin 4*4² LF = +1-1 Transducer connectors HF = +2-2 X8Sub / X10Sub / X12Sub NL4 4-Pin 2*4² Transducer connectors LF = +1-1 Xiv15 / Xiv18 / Xiv28 NL4 4-Pin 2*4² Transducer connectors LF = +1-1 www.qanon-audio.com - 7 -...
-
Page 8: Controller Introduction
Controller Introduction H1200 Controller QANON AUDIO QANON AUDIO 2 Input x 2 Output Analog Type 2x NL4 SpeakOn Max 2 enclosure in parallel For Xiv15 Max 4 enclosure per controller For Xiv15 QANON AUDIO QANON AUDIO VDA18 DSP Controller QANON AUDIO... - Page 9 D Series Processor Recommend H Series Controller Recommend Xiv15 Xiv18 Xiv28 H-800 H-1200 H-1800 2x800w 8ohm 2x1200w 8ohm 2x1800w 8ohm Associated Enclosures Xiv18 Xiv28 www.qanon-audio.com - 9 -...
