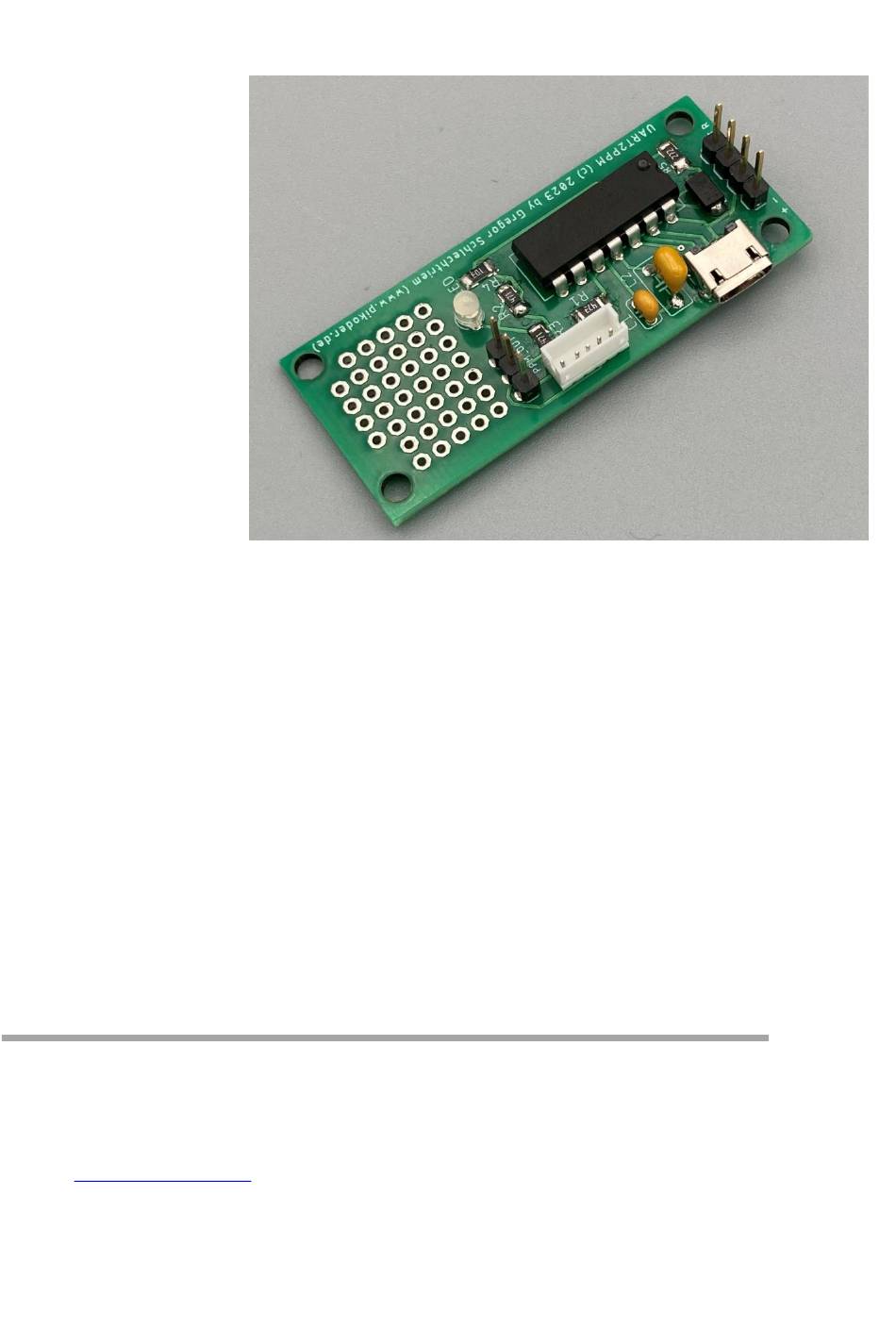

- Page 1 PiKoder/SPE Engineering board Construction manual Version 1.0 dated 07/2023 Gregor Schlechtriem webmaster@pikoder.de www.pikoder.de...
- Page 2 Construction manual PiKoder/SPE engineering board Table of Contents Allgemeine Hinweise Fehler! Textmarke nicht definiert. Bausatzumfang und Hilfsmittel Fehler! Textmarke nicht definiert. Aufbau Fehler! Textmarke nicht definiert. Bestückung der SMD Bauteile ................6 Test der Verbindungen der USB Buchse ............6 Bestückung des Kondensators C1 ..............
-
Page 3: Helpful Hints
Please take the time it needs to build this kit. Tinkering is not task work and should be enjoyable! Please share with me any errors, unclear instructions, or ideas for improvements. You can reach me at gregor@pikoder.com. I am looking forward to your feedback. - Page 4 Contents of the Kit and Tools needed The kit in front of you contains all the necessary components needed to build a PiKoder/SPE engineering board including the pre-programmed PIC16F1455. Please verify the completeness with the help of the attached checklist.
- Page 5 Engineering board PiKoder/SPE construction manual You also need the following tools: 1. Electronic Soldering Iron 2. Electronic Solder 3. Side cutters 4. Multimeter Additionally, to commission your board you will need: 1. USB cable 2. PC with PiKoder Control Center...
- Page 6 Construction The following paragraphs will describe how to populate the components on the circuit board. The silk print on the circuit board will support this process. All parts are populated on the top side. The order of the placement of the components depends on their height;...
- Page 7 Engineering board PiKoder/SPE construction manual Test step: Check USB connection By far the most support requestes and problem reports are linked to the USB connection. And it is very difficult to make any fixes or repairs once the con- troller (IC) socket is placed.
- Page 8 Construction manual PiKoder/SPE engineering board Populate the controller Place the controller in the position indicated on the top of the circuit board. Once again, verify the positioning: the notch as indicated by the red arrow. To avoid the controller from falling out of its...
- Page 9 Engineering board PiKoder/SPE construction manual Populate the LED Place the LED. Please note that the LED is polarized and that the shorter wire needs to be on the left-hand side (see red arrow). Populate the pin header The last components you would solder on the circuit board would be the pin headers for PPM and UART.
- Page 10 Construction manual PiKoder/SPE engineering board...
- Page 11 Engineering board PiKoder/SPE construction manual Commissioning Please start of by connecting your PiKoder/SPE engineering board with the USB port of a Windows 10 computer. The PC will install the drivers needed upon the initial connect. Once this step is completed, your board is ready for use.
- Page 12 Construction manual PiKoder/SPE engineering board...
- Page 13 Pinning Please note: when powering the engineering board by USB, then +Vb would be about 5 Volts – 0.3 Volts (voltage drop diode). When powering the board via UART pins, the board would work with 3.3 Volts to 5 Volts.
- Page 14 Construction manual PiKoder/SPE engineering board...
- Page 15 Schematic...
