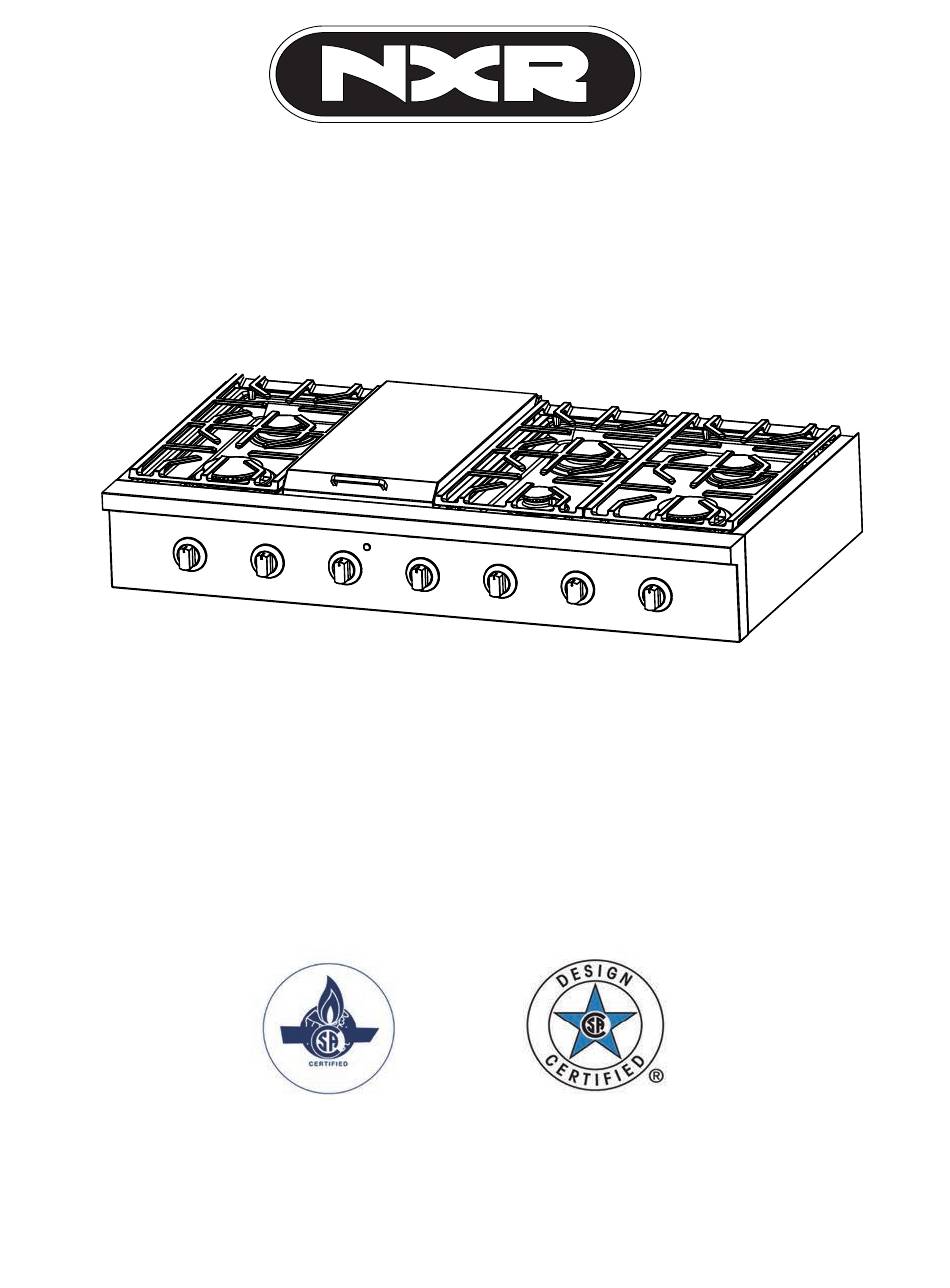

- Page 1 Gas Rangetop Manual For Installation, Care & Maintenance LST3622 LST4822 SCT3611 SCT4811 NK T3611 NK T4811 MMT3611 MMT4811 DURO Corporation...
- Page 2 Please keep this manual for future reference, as it contains the answers to questions that you might have as you begin to cook. For your convenience, product questions can be answered by a NXR Customer Care Representative by Phone: 1-888-909-8818.Or email: nxrcs@duro-global.com...
-
Page 3: Table Of Contents
Contents Safety Instructions ……………………………………………………………. 4~7 Installation Instructions ………………………………………………………. 8~15 Rangetop Operation …………………………………………………………… 16~18 Griddle Operation …………………………………………………………….. 19 Care & Cleaning ……………………………………………………………… 20 Troubleshooting ………………………………………………………………. 21 Warranty & Product Registration …………………………………………….. 22~24 State of California Proposition 65 Warning: The burning of gas cooking fuel generates some by-products that are on the list of substances which are known by the State of California to cause cancer or reproductive harm. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Definitions This is a safety alert symbol. It will alert you to potential personal or property safety hazards. Obey all safety messages to avoid any property damage, personal injury or death. WARNING indicates a potentially hazardous situation which, if not avoided, could result in serious injury or death. - Page 5 SAFETY INSTRUCTIONS What to do if you smell gas? Do not try to light any appliance. Do not touch any electrical switch. Do not use any phone in your residence. Immediately call your gas supplier from a neighbor' s phone. ...
- Page 6 SAFETY INSTRUCTIONS WARNING! Explosion Hazard If you smell gas, do not use the appliance. Open a window or door to let the gas escape, then follow the instructions on the inside front cover of this manual. Do not use water on grease fires. A violent steam explosion may result. Turn all burners off, then smother fire or flame or use dry chemical or foam-type extinguisher.
- Page 7 SAFETY INSTRUCTIONS Do not store or use gasoline, liquid propane cylinder or other flammable vapors and liquids in the vicinity of this appliance. The installation and service of your rangetop must be performed by a qualified installer, an approved service agency or the gas supplier. Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas fuel.
- Page 8 INSTALLATION AND OPERATION INSTRUCTIONS To ensure proper and safe operation, read all instructions before using the product. Install or locate the product only in accordance with the provided Installation Instructions. All servicing should be performed to a qualified technician. ...
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS IMPORTANT K eep appliance area clear and free from combustible materials, gasoline, and other flammable vapors. Gas Supply Requirements Installation of this rangetop must conform with local codes, or in the absence of local codes, the National Fuel Gas Code, ANSI Z 2 23.1 / NFPA 54. In Canada, installation must conform to the current natural Gas Installation /code, CAN 1-1.1-M81 and with local codes where applicable. - Page 10 INSTALLATION INSTRUCTIONS Dimensions and Clearances The rangetop may be installed flush to the rear wall. You may install a non - combustible material on the rear wall above the cooktop and up to the vent hood. It is not necessary to install non-combustible materials behind the rangetop below the counter top height.
- Page 11 48" 7.5"...
- Page 12 Installation Dimensions and Clearances Cabinet tolerances ± 1/16" (± 1.6 mm) unless otherwise noted. 1 1/2” " (3.8 cm) 10” " (25.4 cm) to typical countertop combustible side thickness wall min. both sides 7 1/2" (19 cm) Recommended Mounting platform gas and electrical 36"...
- Page 13 Cabinet/Countertop Dimensions (cont.) Cabinet tolerances ±1/16" (±1.6 mm) unless otherwise noted. 23.7" (60.2 cm) Gas and electrical connections at right rear section of chassis Installed control Countertop panel overhang 1/7/10" (4.35 cm) Cabinet face Mounting platform Installed Rangetop - Side View Gas connection and power cord may be routed through bottom or back of chassis Increase countertop and overhang...
- Page 14 INSTALLATION INSTRUCTIONS Installation Electric Power Supply Requirements Your cooktop must be electrically grounded in accordance with local codes or, in the absence of local codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1 and/or local codes.
- Page 15 Connect Rangetop to Gas Supply • Install a manual gas line shut-off valve in the gas line in an easily accessed location outside the cooktop in the gas piping external to the appliance for the purpose of turning on or shutting off gas to the appliance. •...
-
Page 16: Rangetop Operation
RANGETOP OPERATION Surface Burner Ignition Turn to Ignite and ‘Hi’ position. Push to release gas. Adjust to appropriate flame height. To light the surface burners, push and turn the appropriate control knob counter clockwise to a “Hi” position. You will hear a clicking noise – the sound of the electric spark igniting the burner. Once burner ignition has been achieved, turn the burner control knob to adjust the flame size. - Page 17 Rangetop Operation Simmer and Boil • A smaller flame will give the best simmer results. Small flames offer precise cooking performance for delicate foods, keeping food warm, melting chocolate or butter, and for cooking that need to cook over low heat for a long time. •...
- Page 18 Rangetop Operation WARNING FOOD SAFETY According to the United States Department of Agriculture: DO NOT hold foods at temperatures between 40 F to 140 F more than 2 hours. Cooking raw foods below 275 F is not recommended. Burner Grates The grates must be properly positioned before cooking.
-
Page 19: Griddle Operation
Griddle Operation Before Using the Griddle Clean the griddle thoroughly with warm, soapy water to remove dust or any protective coating. Rinse with clean water and wipe off to dry with soft, clean, lint-free towel/cloth. A stainless steel cover that is sized to fit on top of the surface when the griddle is not being used is provided. -
Page 20: Care & Cleaning
Care and Cleaning Rangetop • To avoid electrical shock or burns, turn off all controls and ensure the rangetop is cool before cleaning. • Before cleaning the rangetop, ensure that all burners are turned off and that all components are cool enough to safely touch. •... -
Page 21: Troubleshooting
Troubleshooting Before you call for service, please review the potential problem / possible causes and remedies shown in the table below. Have rangetop connected to a properly sized electrical power supply by a Rangetop is not connected to the electrical qualified electrician. - Page 22 Manufacture’s Limited Warranty This Product has been manufactured by Duro Corporation,17018 Evergreen Place, City of Industry, CA 91745. Duro Corporation disclaims all express warranties except for the following: This warranty applies to products purchased and located in the United States. Products purchased or located outside these areas are excluded.
- Page 23 6. Service to instruct you on how to use your rangetop to correct house wiring, replace or repair house fuses. Service to correct the installation of your rangetop. 7. Repairs when your rangetop is used for other than normal, single family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
-
Page 24: Warranty & Product Registration
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Whenever you call our Customer Service at NXR (1-888-909-8818) for technical information and parts sales in The United States or to request service for your appliance, please have your complete model number and serial number ready.
