Dear Customer
Congratulations! You have purchased a pool of superior quality and durability. To achieve the best
possible results, follow the instructions carefully. Failure to follow the installation procedures may
result in damage to your pool or property and void your warranty. We recommend that you make a
preliminary study of the instructions booklet to familiarize yourself with the different parts of your
pool. Make sure that you understand each step thoroughly before you begin assembling.
WARNING: Be sure you have read and understood the "Safety Information"
sheets before you begin your pool installation.
WARNING: For your safety, your pool is not designed for diving and/or jumping
1
When selecting a site for your pool, take into account
city by-laws regarding fences and utilities laws pertain-
ing to electrical cables, as well as the landscaping
which you are planning once the pool is installed.
2
We wish you a most pleasant and refreshing summer.
head first. Please do not dive. Diving may result in permanent injury
or death.
SITE PREPARATION
SITE LEVELLING
ASSEMBLY INSTRUCTIONS
Trevi 209

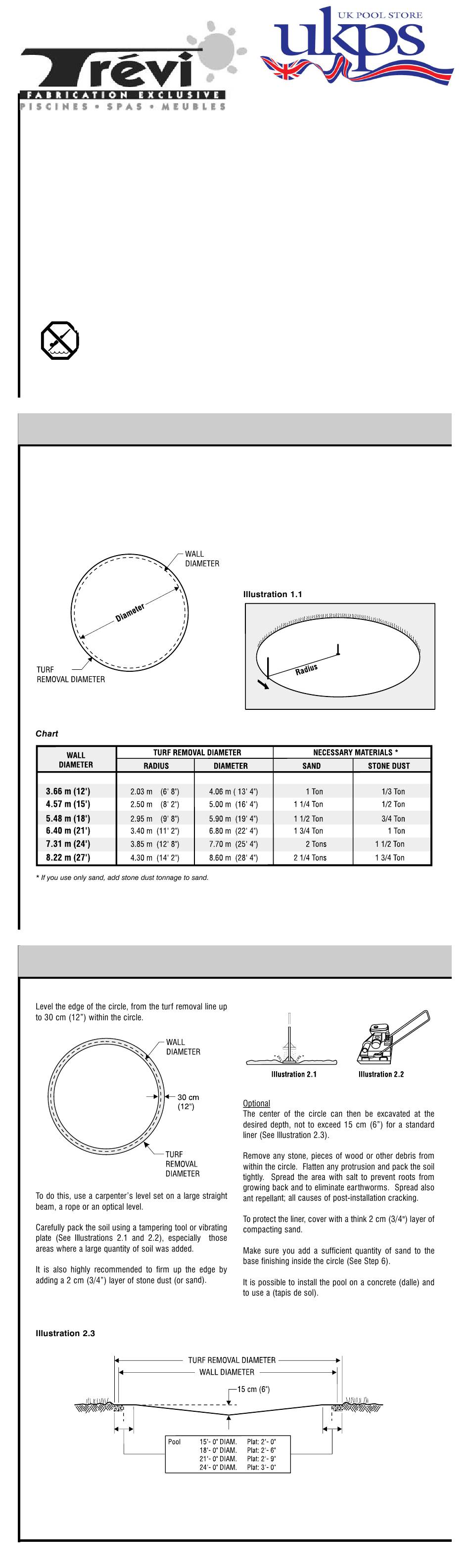

Drive a stake into the ground at the center of the site.
Using a measuring tape, draw a circle 15 cm to 20 cm (6"
to 8") longer in radius than the pool, depending on the
width of the uprights (See Illustration 1.1).
Remove all grass from the area which you have just out-
lined.
Make sure to order the required quantity of sand and stone
dust (See Chart).
ROUND POOLS
