Summary of Contents for StarSleep Orin

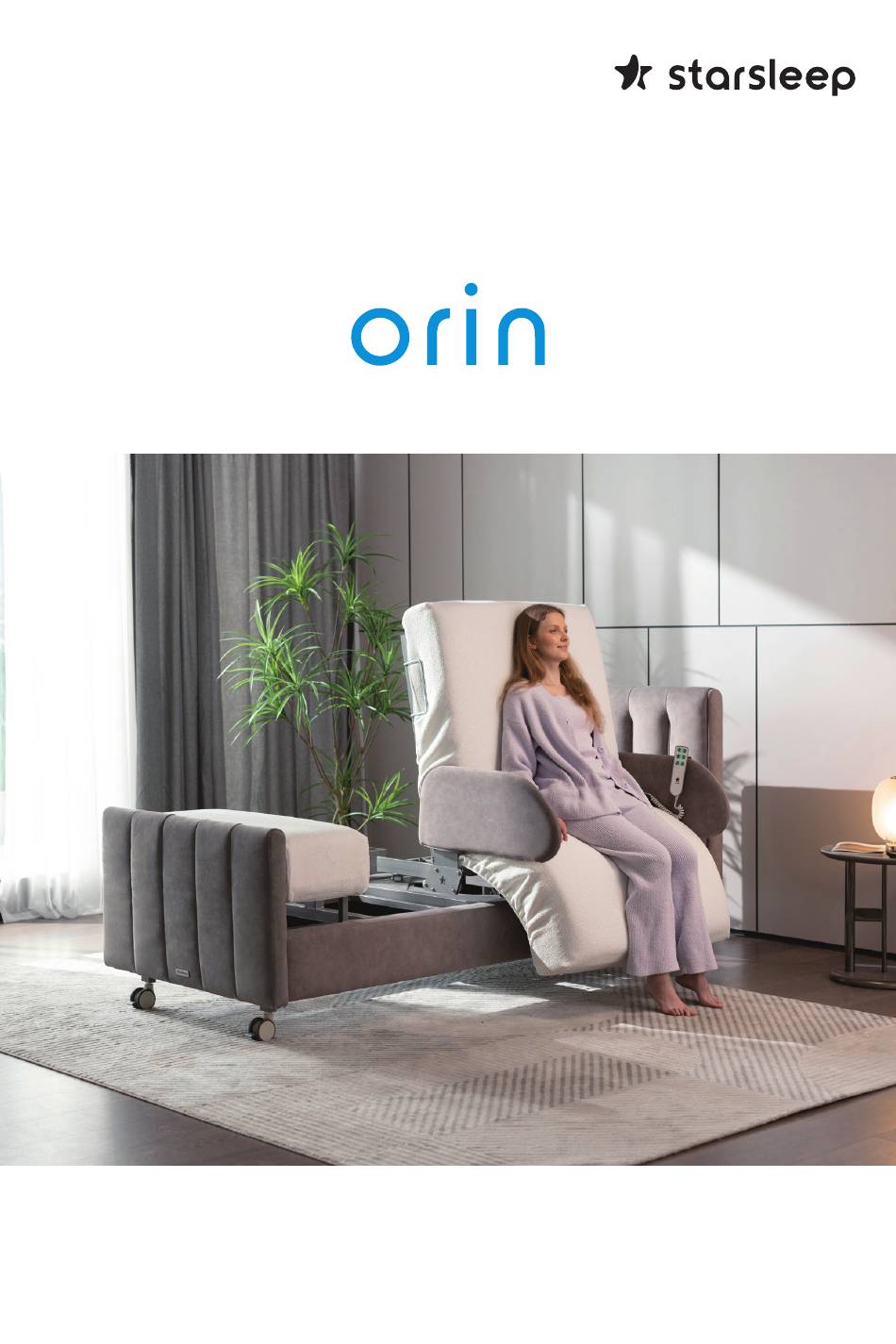

- Page 1 User Manual Rotating Bed “ enjoy a new life ”...
-
Page 2: Table Of Contents
Table of Contents P r e f a c e · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 0 2 Delivery and Usage········································03 Warranty and Product Liability·····················05 Instructions for Use and Operation···············07... - Page 3 A letter from StarSleep Thank you for choosing to purchase Orin, a product under the StarSleep brand. Orin is a high-quality product that, when used and maintained correctly, will provide you with assistance for many years to come. To ensure the maximum effectiveness of your bed, please read this manual carefully.
-
Page 4: Delivery And Usage
Delivery and Use Users and operators must receive professional guidance from authorized instructors. During the installation process, it is important to ensure an adequate and safe distance between the bed and the wall to allow for free rotation of the bed.Connect the bed directly to a power outlet. - Page 5 General Warning: ● Do not use this electric bed in the presence of flammable gases. ● This product is designed for single-person use only. ● When no caregiver is present, it is recommended to position the bed at the lowest height to reduce the risk of injury in case of user falls.
-
Page 6: Warranty And Product Liability
Warranty and Product Liability Orin is a high-quality product designed to provide trouble-free use for many years. Orin comes with a two-year warranty, encompassing both labor and parts (one year for the remote control), a five-year motor warranty, and a ten-year bed frame warranty. - Page 7 ● Damage to walls or adjacent furniture due to improper bed placement. ● Damage to power outlets for any reason. ● Damage caused by improper opening or use of electrical components. T h e b e d i s d e s i g n e d a n d t e s t e d t o c a r r y t h e s p e c i f i e d maximum weight.
-
Page 8: Instructions For Use And Operation
Lift Up Lay Down Power On StarSleep Orin bed's control is operated manually through a wired controller. The first two rows of buttons are designed for manual control, while the third row is for program control. Manual mode is disabled during rotation motion. In this mode, program control should continue until manual control is reactivated before or after the rotation motion. -
Page 9: Backrest Adjustment
Backrest Adjustment You can adjust the tilt of the backrest using the up/down buttons based on the user's condition or preference. The backrest can be raised up to 87°. Activation ● Press and hold the backrest adjustment (up) button to raise the backrest. -
Page 10: B E D U P / D O W N P R O C E D U R
One touch Lift up/Lay down StarSleep Orin bed allows users to easily get out of bed and assists caregivers in smoothly adjusting users to a sitting position. This makes it easy for users to transfer on the bed and facilitates transfers onto the caregiver's back. -
Page 11: One-Touch Bed Down Procedure
One-touch Lay Down ● In principle, the lying down process is the opposite of the getting up process. ● The user stands with their back to the bed, placing their feet as close to the mattress as possible. (This is crucial for achieving the correct lying position on the bed later, so you won't need to readjust the user's lying position again). -
Page 12: Massage & Heating
Air Bag Massage and Heating Pad The massage, lumbar support, and heating functions of the StarSleep Orin bed are manually operated through a wired controller. Lumbar Airbag Lumbar Ejection Airbag Retraction Massage Heating: MODEL 1-2-3 Click the Mode: button to... - Page 13 Air-Bag Massage The massage airbags consist of four independently controllable airbags that are installed inside the mattress for use. Three massage modes can be achieved by inflating and deflating the airbags. The waist airbags can also function as lumbar support. If there is no operation, the airbags will automatically stop running after 45 minutes.
-
Page 14: Brake System
Brakes （Optional） By default, the Orin bed does not come with casters. If you require casters, please contact your local dealer for further information and assistance. To lock the brakes, press the brake lever on the casters downward until it clicks into place. -
Page 15: S I D E R A I L
Side Rails The side rails on both sides are primarily designed for safety, preventing the user from falling out of bed. Additionally, they can be used as handrails for getting in and out of bed. Inserting the side rail: Hold the side rail vertically and insert the bottom end into the bracket on the side of the bed at a 45°angle until you encounter resistance. -
Page 16: Cleaning And Maintenance
. T h e m a n u f a c t u r e r c a n n o t b e held responsible if non-approved accessories are used. For information regarding accessories, please contact your purchasing dealer or StarSleep. Transportation and Storage The following environmental conditions must be adhered to: Storage Temperature: Minimum 5°C, Maximum 50°C... - Page 17 Warning: When operating the care bed, no one, especially children or pets, should be under or inside the bed frame. Do not use the free space under the care bed to store tools. ● Do not sit on the leg rest or add any additional weight when the bed is rotated in the 90°...
-
Page 18: Troubleshooting
If the Orin care bed is not functioning, please assess the symptoms and possible solutions provided in the chart below. Depending on its model, the Orin care bed is equipped with an internal or external switch-mode power unit. This power device has two internal automatic fuses. - Page 19 Issue Possible Causes Solution Check if the power cord is securely No response when Loose power cord, plugged in pressing the manual Faulty emergency Disconnect the button stop position emergency stop position for 1 minute, then reconnect it. At least 1 motor Contact customer 2 beeps after reset malfunction...
- Page 20 “ enjoy a new life ”...
