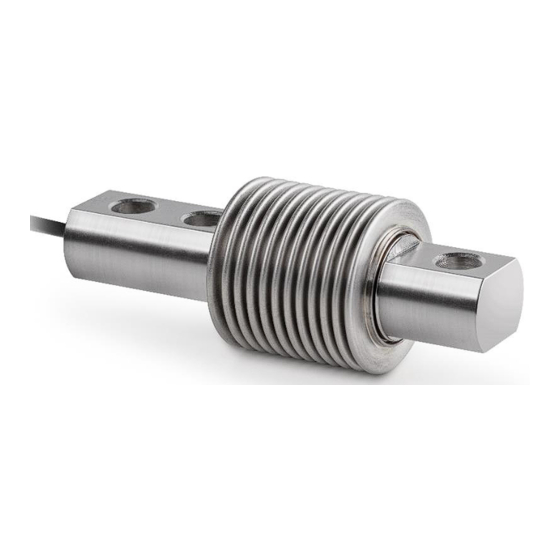

Summary of Contents for INSTRUMENTYS CB Q1

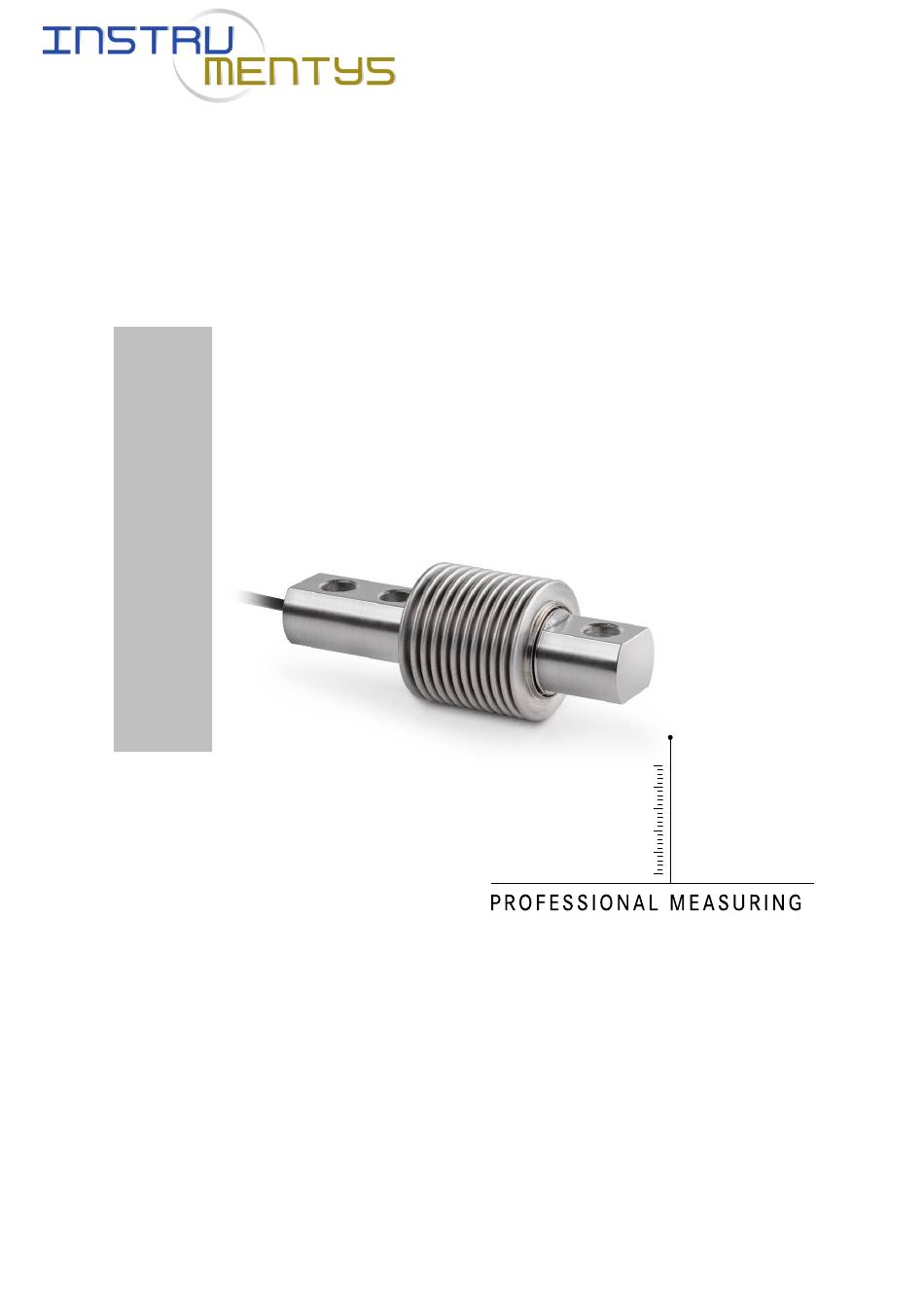

- Page 1 Instruction Manual / Data sheet CB Q1 / CB Q2 V. 1.0 12/2018 CB Q1 / CB Q2 -BA-e-1810...
- Page 2 SAUTER CB Q1 / CB Q2 V. 1.0 12/2018 Instruction Manual / Data sheet Summarize: Short description ................... 3 Available models.................... 3 Introduction ....................3 Warning notes ....................3 Warranty ......................4 Detailed specifications .................. 4 Wiring ......................4 Dimensions in mm ..................5 5 –...
- Page 3 Never step under suspended loads. Always fasten overload- or break security to your construction. Pay attention to the allowed static and dynamic loads of the used equipment. CB Q1 / CB Q2 -BA-e-1810...
- Page 4 ≥5000 ( at 50VDC ) Insulation resistance Compensated temperature °C -10 ~+40 Operating temperature °C -30 ~ +70 7 Wiring Shielded, 6 cable. Shield not connected to element. Cable diameter: Ø4mm. Standard cable length: 3m 4-wire diagram CB Q1 / CB Q2 -BA-e-1810...
- Page 5 Input(+) Green Output(-) White Input (-) Black Output(+) 8 Dimensions in mm 8.1 5 – 500kg CB Q1 / CB Q2 -BA-e-1810...
- Page 6 750kg -1500kg CB Q1 / CB Q2 -BA-e-1810...
