Star2M iridium S2M-RMU Quick Start Manual

Quick Start Guide
S2M-RMU

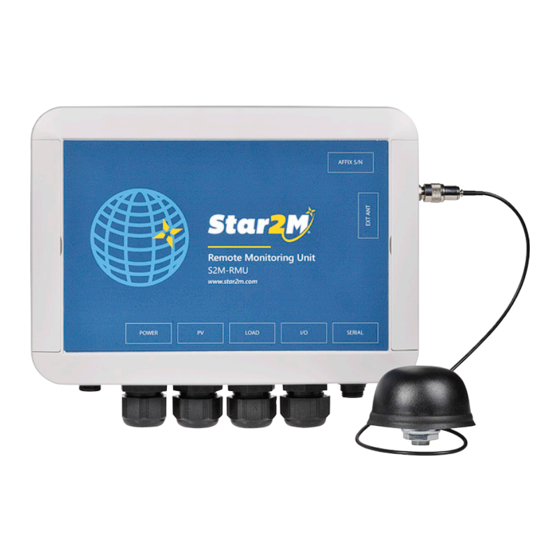

Your system will consist of: 1 x S2M-RMU remote monitoring unit.
To successfully set up this product, you require:
• Star2M ® portal access
• Internet connection
Introduction
The purpose of this quick start guide is to present a brief summary of the steps involved in the installation of
the Remote Monitoring Unit (RMU), from the physical installation of the enclosure itself to configuration in
Star2M.

Step 1: Installing the RMU

Remove the AV-RMU remote monitoring unit
from the packaging and carefully place on a solid
work surface.
Step 3: Complete wiring for applicable
external connection interfaces
Connect cables through the applicable cable glands in
the RMU enclosure.
Note: Ensure that the unused cable glands are sealed
using the provided bungs.
Note: Connection for serial comms monitoring can be
done either via Serial Cable (standard installation) or via
direct wiring (SL-PEL installations only).
Please see installation manual for further details.
For the full manual, visit the link below:
star2m.com/hardware/remote-monitoring-unit/
Thank you for purchasing this product. This guide will
provide you with a brief summary of the steps involved in
successfully installing the Remote Monitoring Unit (RMU).

Step 2: Open the RMU enclosure

Loosen and remove the 8 X M3 screws at the back
of the enclosure and remove the top cover.
