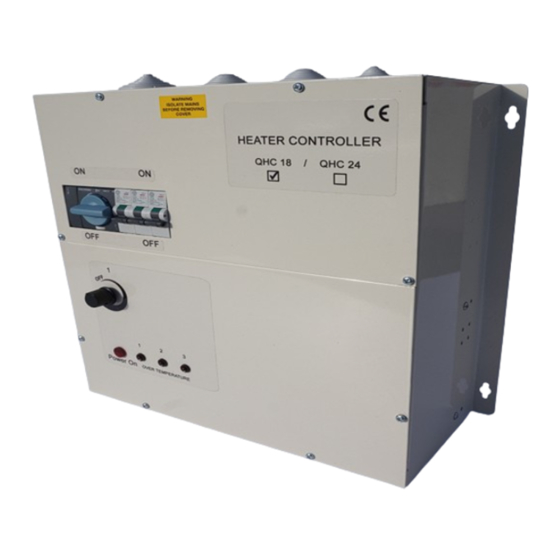

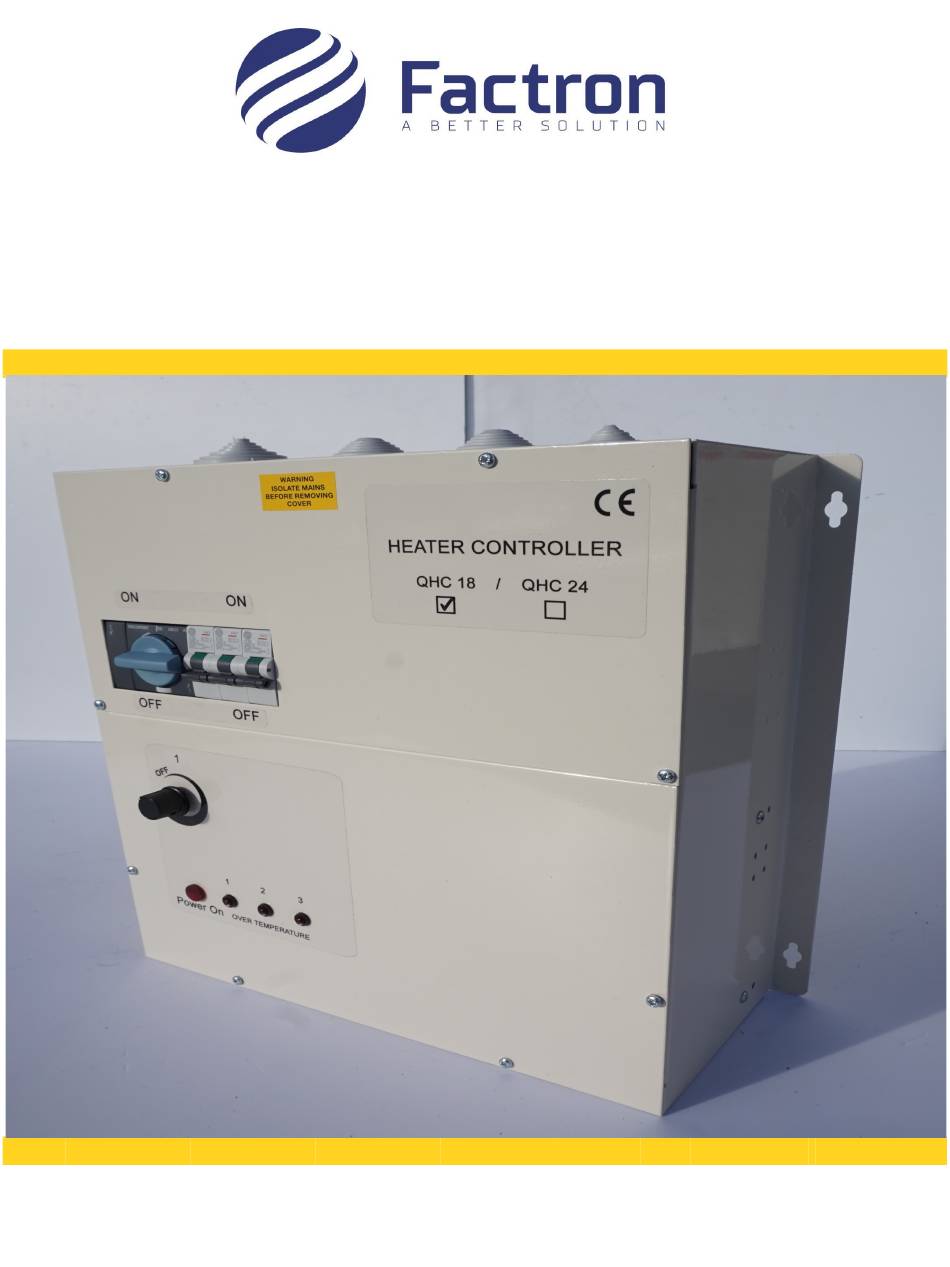

- Page 1 QHC18M 18Kw Heater Controller 3 channel Standard Quick start guide Three phase 415v / Three zone / Manual operation / Soft start...
- Page 2 Quick Start for QHC18M 18Kw Heater Controller with Soft start Service hatch Isolation switch 32A O/P MCBs 32A Type C Power control dial with 4 settings Power ON indicator Over Temp indicators Front panel 1) Start by removing the service hatch. Remove the 4 fixing screws, 2 at the top and 2 in the corners.
- Page 3 QHC18M 18Kw Heater Controller Din Rail & connections Distribution Box P/No. QHDB-1824 Terminals 1 – O/P1 Terminals 2 – O/P2 Terminals 3 – O/P3 Terminals N – N out Terminals E – Earth 5) When all connections are complete and connected correctly, check once again that the wiring is correct as per 3) &...
- Page 4 Weights : QHC18M – 10 Kg for both the QHC18M QHC24M – 12 Kg & QHC18MR controllers. Tel. 00 353 1 8352718 Email: paul@factron.ie dave@factron.ie Website: www.factron.ie Factron Ltd. Unit 12 Ashbourne Ind. Park, Ashbourne, A84 HY74, Co.Meath , Ireland...
