Page 1
Smart LED Projector User Manual www.zebronics.com...
Page 2

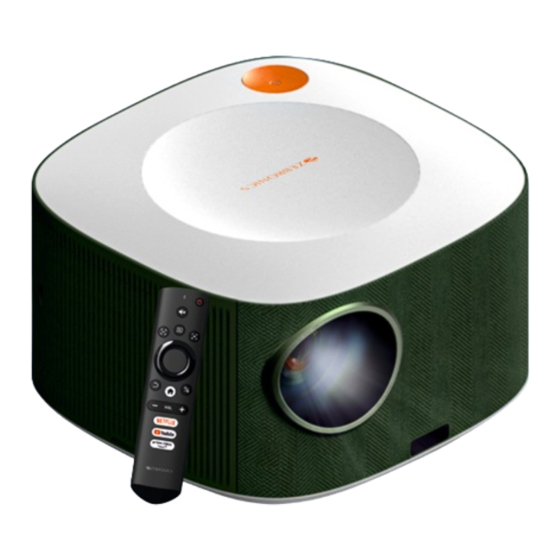

Dear Customer, Thank you for purchasing the Zeb-Pixaplay 26 Smart LED Projector. Please read the user manual carefully before usage and save it for future reference. Note : * To provide a stable power supply, kindly use the cable provided with the product and connect to a AC 100-240V, 50/60Hz power source.
Page 3
Features : Ÿ Multi Connectivity (BT v5.0 | HDMI (ARC) | Dual USB: 1 x USB | 1 x USB (power)| AUX OUT) Ÿ Home Theater Projectors for Movies, TV & Gaming etc.. Ÿ Powerful Speaker With Passive Radiator Ÿ Wide Compatibility Ÿ...
Page 4
Display Technology : LED Lifespan : 30,000h Brightness : 5000 lumens Contrast ratio : 1000:1 Projection Distance : 1.3m - 5.7 m Port Interface : HDMI (ARC), Dual USB: 1 x USB | 1 x USB (power), AUX OUT Video file format : AVI, MP4, MPG, MPEG1, MPEG2, MKV, WMV, MOV, FLV, H.264 Input Voltage...
Product description: SV OUT HDMI AUX OUT Power Input USB Interface HDMI (ARC) 5V Out Remote Control Power Mute Input Focus Focus Left Right Down Return Menu Home Vol+ Vol- Netflix Youtupe Prime Video NOTE : 1. To avoid power shortage, do not mix and use the old and new batteries 2.
Page 7
Setting Up the Projector 1. Before turning it on, place the projector on a flat surface to ensure proper projection 2. Connect the power cord to the projector and plug it into a socket to supply power. Turn the projector on. 3.
Electronics Focus Press the “ ” and “ ” buttons on remote control to adjust the clarity Auto Focus Manual Keystone...
Page 9
Bluetooth remote pairing Select Remote Control at the top of the home page and the pairing interface will appear...
Page 10
Settings Open the homepage and select Settings. This setting houses the following sub-menus: Network & Internet, Bluetooth, Input / HDMI, Picture, Display & Sound, and System. Projection: The projection adjustments like Keystone adjustment, zoom out can be done using the projection tabs in the settings.
Page 11
Digital 4D keystone: While most of the projector comes with only manual vertical trapezoidal correction, resulting in blurred corners, ZEB-Pixaplay 26 has 4D keystone corrections, giving you sharp and clear corners. Home Screen: * Once the projector is turned on you’ll be directed to the home-screen.
Page 12
HDMI Interface: O n c e t h e H D M I i n t e r f a c e i s connected to the projector, you will need to select the specific signal source as the input. After connecting the content played on the source will be streamed on the projector.
Page 13
Projector distance & size Note: Due to optical device error of about 3%, the above data is for reference only, Please use actual measurement when installing the device. ISO 9001:2015 Certified Company www.zebronics.com...
