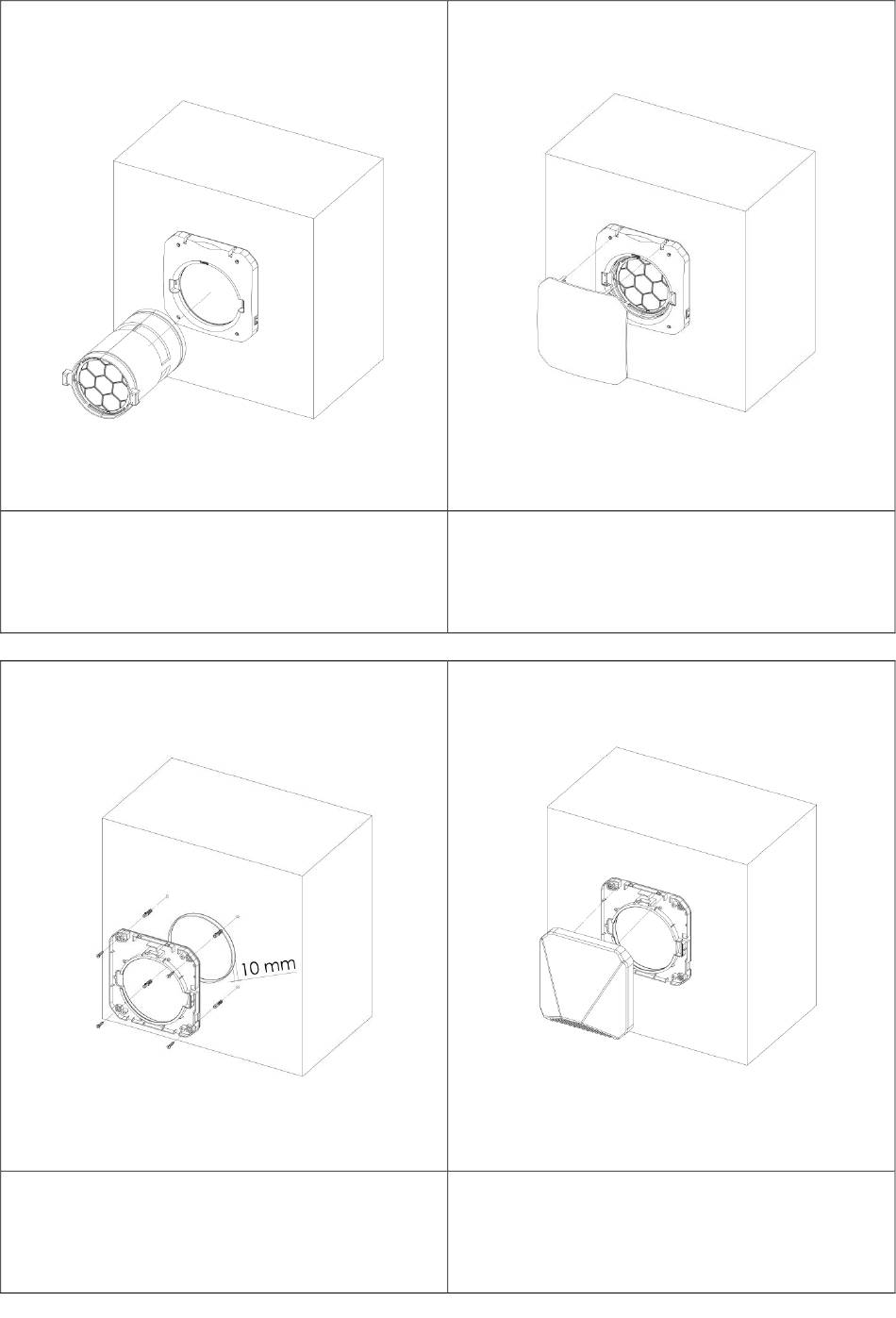

3. Align the capsule part such that the fan socket
is on the left. Then push it inside the pipe,
making sure the fans socket is correctly seated.
5. Align the outer wall fixture part with the 10mm
protrusion of the telescopic pipe part. Drill 4
holes then insert dovels and screw the part on
to the wall.
4. Put the front cover part on to the inner cover
part and push the hinges. Make sure that both
hinges are securely clicked in place.
6. Place the outer hood part on to the wall fixture
part and push it in its place. Make sure that the
parts are securely clicked in place.
