Summary of Contents for Uniden UCSWITCH5
- Page 1 UCSWITCH5 UCSWITCH9 OWNER’S MANUAL © 2018 Uniden America Corporation Issue 1, May 2018 Irving, Texas...
- Page 2 Uniden surveillance products are not manufactured and/or sold with the intent to be used for illegal purposes. Uniden expects consumer’s use of these products to be in compliance with all local, state, and federal law. For further information on video surveillance and audio recording legal requirements, please consult your local, state, and federal officials.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..........5 PACKAGE CONTENTS ..........5 FRONT PANEL ..........6 UCSWITCH5 ..............6 UCSWITCH9 ..............6 LED Descriptions ............6 EXTEND MODE ............7 RJ45 PORTS ..............7 REAR PANEL ..............8 Power Socket.............. 8 Grounding Terminal ............ 8 Lock Hole .............. -
Page 5: Introduction
APs, IP cameras, IP phones, and other Power Devices). In addition, UCSWITCH5 and UCSWITCH9 support Extend mode. With enabling Extend mode and Cat 5e Ethernet cable, the transmission distance of data and power can be up to 250m. -
Page 6: Front Panel

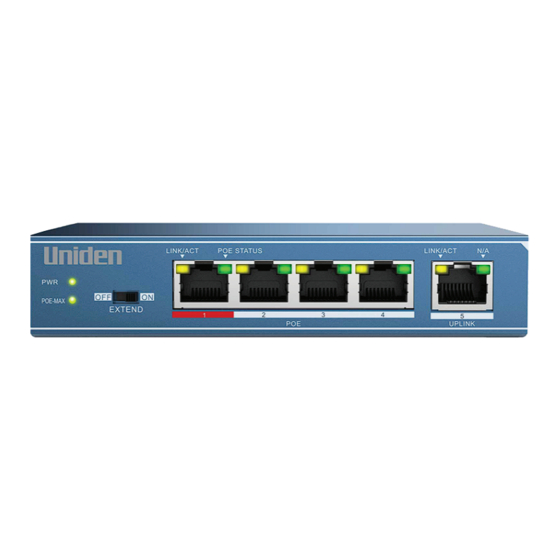

FRONT PANEL UCSWITCH5 UCSWITCH9 LED Descriptions STATUS DESCRIPTION Solid The device is properly connected to the power supply. The device is not connected properly to the power supply. Solid The PoE power reaches alarm status; the avalable PoE power is less than 6W. -
Page 7: Extend Mode
EXTEND MODE If Extend mode is enabled: MODEL STATUS DESCRIPTION Ports 1 - 4: 100M UCSWITCH5 Ports 1 - 4: 10M Ports 1 - 8: 100M UCSWITCH9 Ports 1 - 8: 10M To guarantee Extend mode performance, use a Cat 5e or better Ethernet cable and configure the remote device’s speed and duplex to be “Auto... -
Page 8: Rear Panel
REAR PANEL The rear panel comprises a power socket and a grounding terminal. UCSWITCH9 also had a lock hole. Power Socket The included power adapter connects the device to power through the power socket. Grounding Terminal If desired, connect a grounding cable (not included) for lightning electrical discharge protection. -
Page 9: Anti-Static Protection
There is a seal covering one of the screws in the device case. If the device needs repair, keep the seal unbroken until a Uniden technician can make the repair. The user should not break the seal covering the screw. -
Page 10: Check Cabling
Connect to Power Supply 1. Plug the power adapter into the power socket. 2. Plug the other end of the power adapter into DC power. 3. The PWR LED turns on. TECHNICAL SPECIFICATIONS UCSWITCH5 UCSWITCH9 INTERFACES 10/100MBPS RJ45 5... - Page 11 UCSWITCH5 UCSWITCH9 High Priority Ports Port 1 Ports 1 - 2 PERFORMANCE Store-and-Forward Supported MAC Table MAC Learning Auto-learning/auto-aging Switching Capacity 1Gbps 1.8Gbps PoE POWER PoE Standard IEEE 802.3af, IEEE 802.3at PoE Powering Supports 8 pins powering; Pins 1, 2, 3,...
-
Page 12: Fcc Part 15/Ic Compliance
UCSWITCH5 UCSWITCH9 Storage Temperature: -40ºF - 158ºF Environment (-40ºC - 70ºC) Humidity: 5% - 90% RH Non-Condensing TRANSMISSION SPEED Ethernet 10Mbps Half Duplex 20Mbps Full Duplex Fast Internet 100Mbps Half Duplex 200Mbps Full Duplex TRANSMISSION MEDIUM Ethernet CAT 3 or better UTP/STP... -
Page 13: One-Year Limited Warranty
WARRANTOR: Uniden America Corporation (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materials & craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to the original user shall terminate &... - Page 14 Uniden service center for a defect or malfunction covered by this warranty, (E) used in any conjunction with equipment or parts or as part of any system not manufactured by Uniden, or (F) installed or programmed by anyone other than as detailed by the owner’s manual for this product.
- Page 15 & a note describing the defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at: Uniden America Service C/O Saddle Creek 743 Henrietta Creek Rd., Suite 100 Roanoke, TX 76026...
