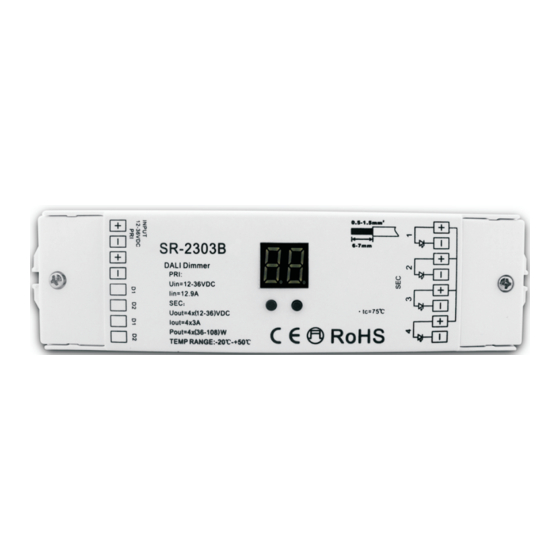

topled SR-2303 Series Quick Start Manual

Feature
Match all DALI system in the market
Manual /automatically DALI address setting
DALI address digital indicate
Four channels with four different addresses,4 channels work separately
Compatible with SR-2400TL,SR-2400TG,SR-2400TS,SR-2400LC,SR-2400GC,SR-2400SC and any good quality
DALI Master
Parameter
Part No. Iuput Voltage
SR-2303B 12-36VDC
SR-2303BEA 12-36VDC
SR-2315B 12-36VDC
SR-2317B 12-36VDC
Product Size
178.9
170.4
Brief introduction of buttons
12-36VDC power input
or connect next DALI dimmer
DALI signal input or connect to
next DALI dimmer
DALI dimmer
Model:SR-2303xx series
Current Output
4x5A
4x(60-180)W
4x8A 4x(96-288)W
4x350mA 4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
SR-2303B
DALI addresses indicate
SR-2303B
DALI addresses adjust button

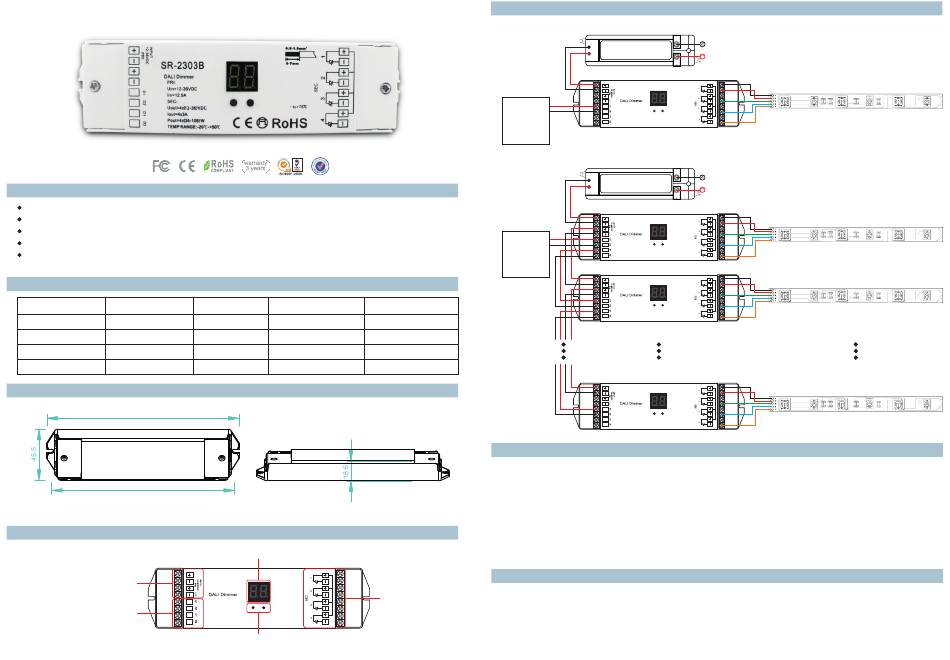

Wiring diagram
1)Connection Diagram for Single Unit
DALI
Master
2)Connection Diagram for Multiple Units
DALI
Master
Remarks
Constant voltage
Constant voltage
Constant current
Constant current
Operation
Setting DALI address
a. Manual:Long press any button---digital address will flicker---short press button to set address we want----
long press any button to confirm.
b. DALI master setting: SR-2302xx Series can also be setting address by all DALI master which possesses this
function. The specific operation can refer to DALI master manual.
c. Once an address is selected, the remaining 3 channels will be utilized digitally. For example, if the decoder is
addressed to 22 on the display then CH1 – 22, CH2 – 23, CH3 –24, CH4 – 25.
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
For LED lighting
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
Power Supply
110V-230VAC
12-36VDC
SR-2303B
Power Supply
110V-230VAC
12-36VDC
SR-2303B
SR-2303B
SR-2303B
RGB or single color LED strip
RGB or single color LED strip
RGB or single color LED strip
RGB or single color LED strip
